Eaton E50ALR1

Name: Eaton E50ALR1
Brand: Eaton
SKU: CS228092
Availability: OutOfStock

SKU: CS228092MPN: E50ALR1UPC/EAN: 782113769363

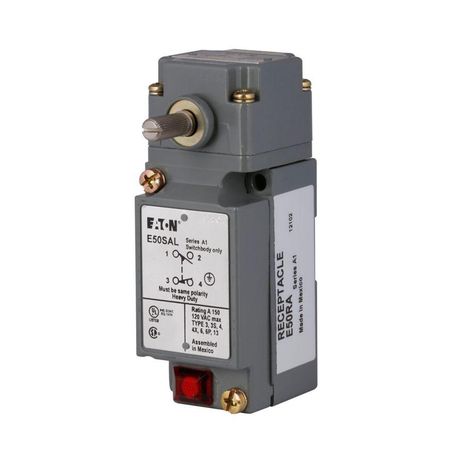

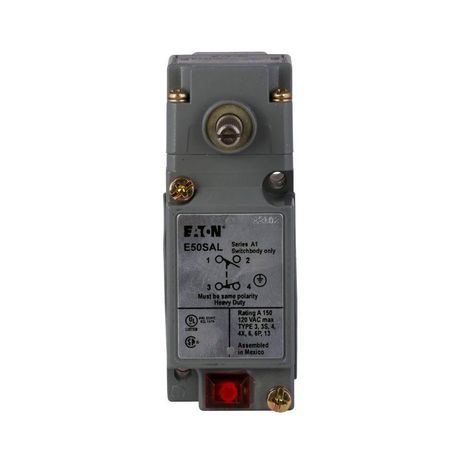

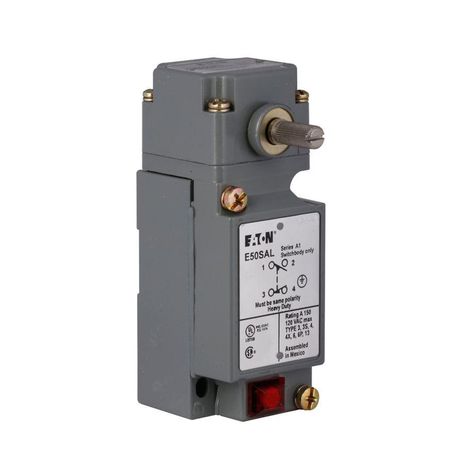

Eaton E50 NEMA heavy duty plug-in limit switch

Eaton E50AH1RFY1, E50AL16P20, E50AL1P5, E50ALH1, E50ALH16P, E50ALL1, E50ALL16P, E50ALM1, E50ALM16P, E50ALM16P20, E50ALR1, E50ALR16P, E50ALR16P12, E50ALR16P20, E50ALR16PC

Product Details

Eaton E50 NEMA heavy duty plug-in limit switch,Assembly,Screw Terminals,10A at 12 Vac,1A at 125 Vdc,Side rotary,1NO-1NC,Die cast zinc,NEMA 1,3,3S,4,4X,6,6P,13,IP67,LED indicator,24-120 Vac/dc,10A continuous,1A,10° to 200°F,E50

Attributes

Actuator	Side rotary
Connection	Screw terminal
Contact Configuration	1 NO-1 NC
Contact Rating	10A at 12 Vac, 1A at 125 Vdc
Enclosure Material	Die cast zinc
Environmental Rating	NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
Led Indicator	LED indicator
Light Unit Voltage	24-120 Vac/dc
Maximum Ac Current	10 A continuous
Maximum Dc Current	1 A
Operating Temperature Max	200 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	10 FAH
Operating Temperature Min Uom	FAH
Series	E50
Type	Assembly
