Eaton E50SAL6P

Name: Eaton E50SAL6P
Brand: Eaton
SKU: CS4871950
Price: 405.68 USD
Availability: OutOfStock

SKU: CS4871950MPN: E50SAL6PUPC/EAN: 782113726632

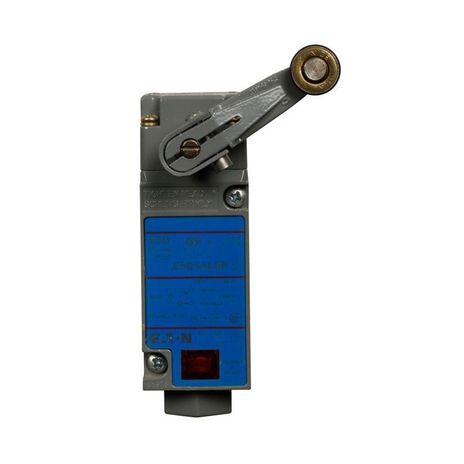

Eaton E50 NEMA heavy duty plug-in limit switch

Eaton E50AH1, E50AH16P, E50AL1, E50AL16P, E50AM16P, E50AR1, E50AR16P, E50AS1, E50AS16P, E50AS2, E50AS3, E50AS36P, E50AT1, E50AT16P, E50AT2

Product Details

Eaton E50 Heavy Duty Factory Sealed 6P+ Limit Switch,10A at 240 Vac,1A at 250 Vdc,SOOW-J,1NO-1NC,96Foot,Die cast zinc,NEMA 1,3,3S,4,4X,6,6P,13,IP67,IP69K,LED indicator,24-120 Vac/dc,10A,1A,-31° to 175°F,E50 Heavy Duty Factory Sealed 6P+

Attributes

Cable Type	SOOW-A
Contact Configuration	1 NO-1 NC
Contact Rating	10A at 240 Vac, 1A at 250 Vdc
Enclosure Material	Die cast zinc
Environmental Rating	NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67, IP69K
Led Indicator	LED indicator
Light Unit Voltage	24-120 Vac/dc
Maximum Ac Current	10 A
Maximum Dc Current	1 A
Operating Temperature Max	175 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-31 FAH
Operating Temperature Min Uom	FAH
Series	E50 heavy duty factory sealed 6P+
