Eaton E50AW2

Name: Eaton E50AW2
Brand: Eaton
SKU: CS4871813
Price: 451.26 USD
Availability: OutOfStock

SKU: CS4871813MPN: E50AW2UPC/EAN: 782113453606

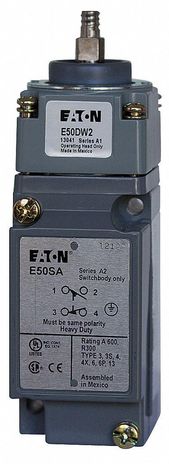

Eaton E50 NEMA heavy duty plug-in limit switch

Eaton E50AH1, E50AH16P, E50AL1, E50AL16P, E50AM16P, E50AR1, E50AR16P, E50AS1, E50AS16P, E50AS2, E50AS3, E50AS36P, E50AT1, E50AT16P, E50AT2

Product Details

Eaton E50 NEMA heavy duty plug-in limit switch,Screw Terminals,Heavy-duty high strength steel,10A at 240Vac,1A at 250Vdc,1NO-1NC,Die Cast Zinc,NEMA 1,3,3S,4,4X,6,6P,13,IP67,10A,1A,14°to250°F (-10°to121°C),Wobble Stick

Attributes

Connection	Screw terminal
Contact Configuration	1 NO-1 NC
Contact Rating	10A at 240Vac, 1A at 250Vdc
Enclosure Material	Die cast zinc
Environmental Rating	NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
Maximum Ac Current	10 A
Maximum Dc Current	1 A
Operating Temperature Max	250 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	14 FAH
Operating Temperature Min Uom	FAH
Switch Type	Wobble stick
