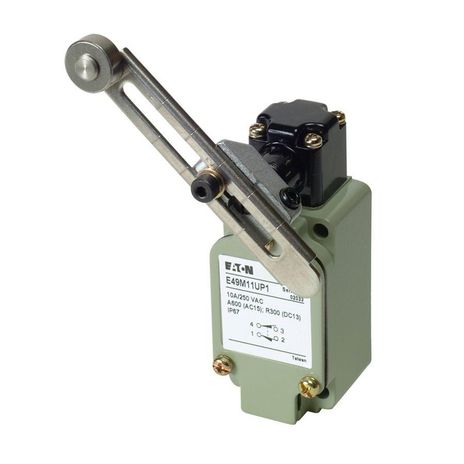

Eaton E49M11UP1
SKU: CS3070247MPN: E49M11UP1UPC/EAN: 782113680958
Eaton E49 compact metal limit switch
$177.28
Unit5+ Units Available at Factory - Ships Same/Next Business Day
Product Details
Assembled Limit Switch, E49, Adjustable roller lever, Screw Terminals, 10A at 250 Vac, 1.5A at 24 Vdc, Standard DIN, 1 mm-2m/s, 1NO-1NC
Attributes
| Actuator | Adjustable roller lever |
| Connection | Screw terminal |
| Contact Configuration | 1 NO-1 NC |
| Contact Rating | 10A at 250 Vac, 1.5A at 24 Vdc |
| Enclosure Material | Die cast aluminum |
| Environmental Rating | IP67 |
| Maximum Ac Current | 10 A continuous |
| Maximum Dc Current | 1.5 A |
| Mounting Method | Standard DIN rail |
| Operating Speed | 1 mm-2m/s |
| Operating Temperature Max | 176 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | 14 FAH |
| Operating Temperature Min Uom | FAH |
| Series | E49 |
Specifications
| SKU | CS3070247 |
|---|---|
| MPN | E49M11UP1 |
| UPC/EAN | 782113680958 |
You may also like

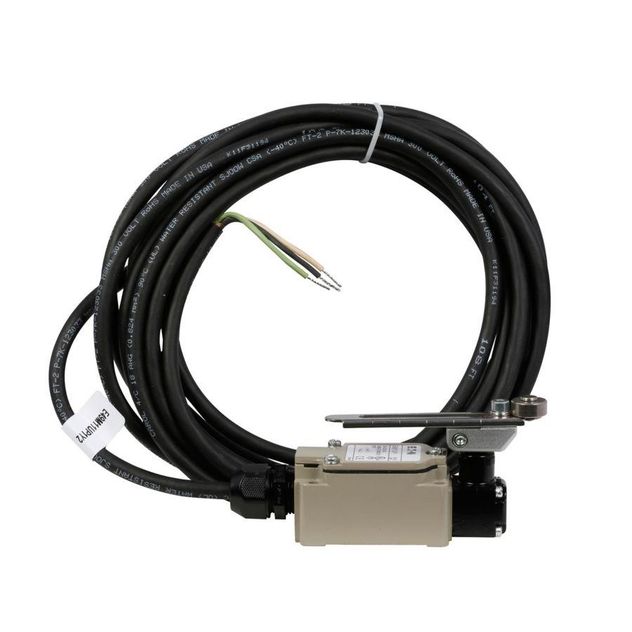

Eaton E49M11UP1Y2
Contact us for pricing and availability

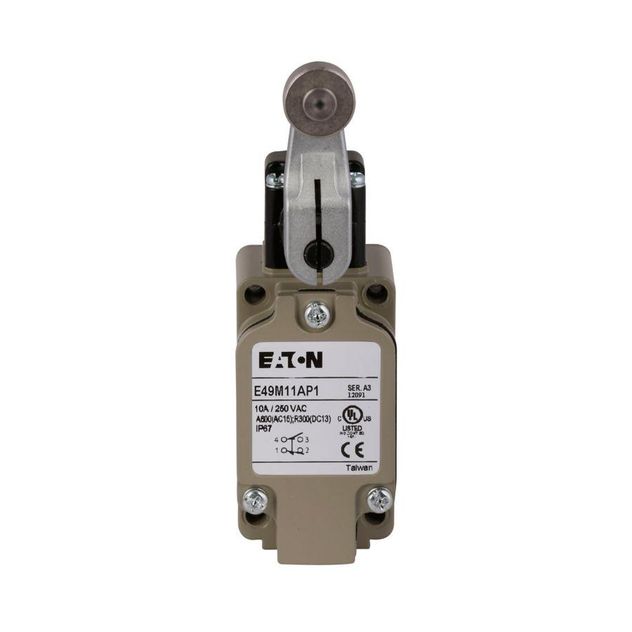

Eaton E49M11AP1
Contact us for pricing and availability
Eaton E49M11DP1
Contact us for pricing and availability

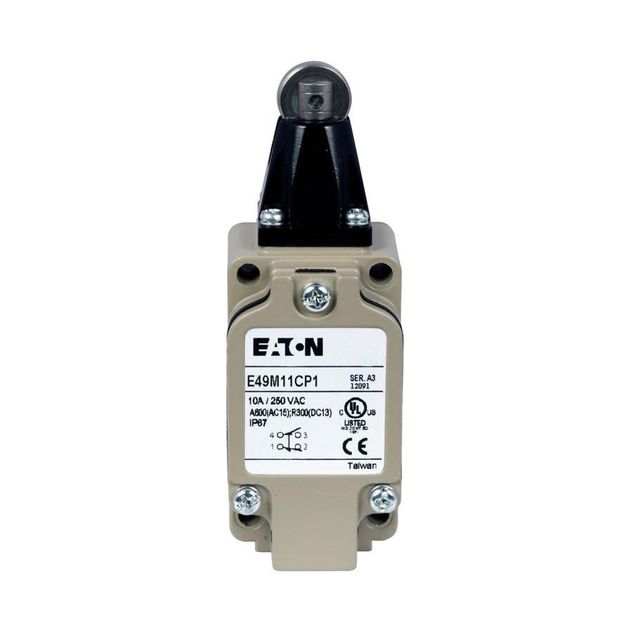

Eaton E49M11CP1
