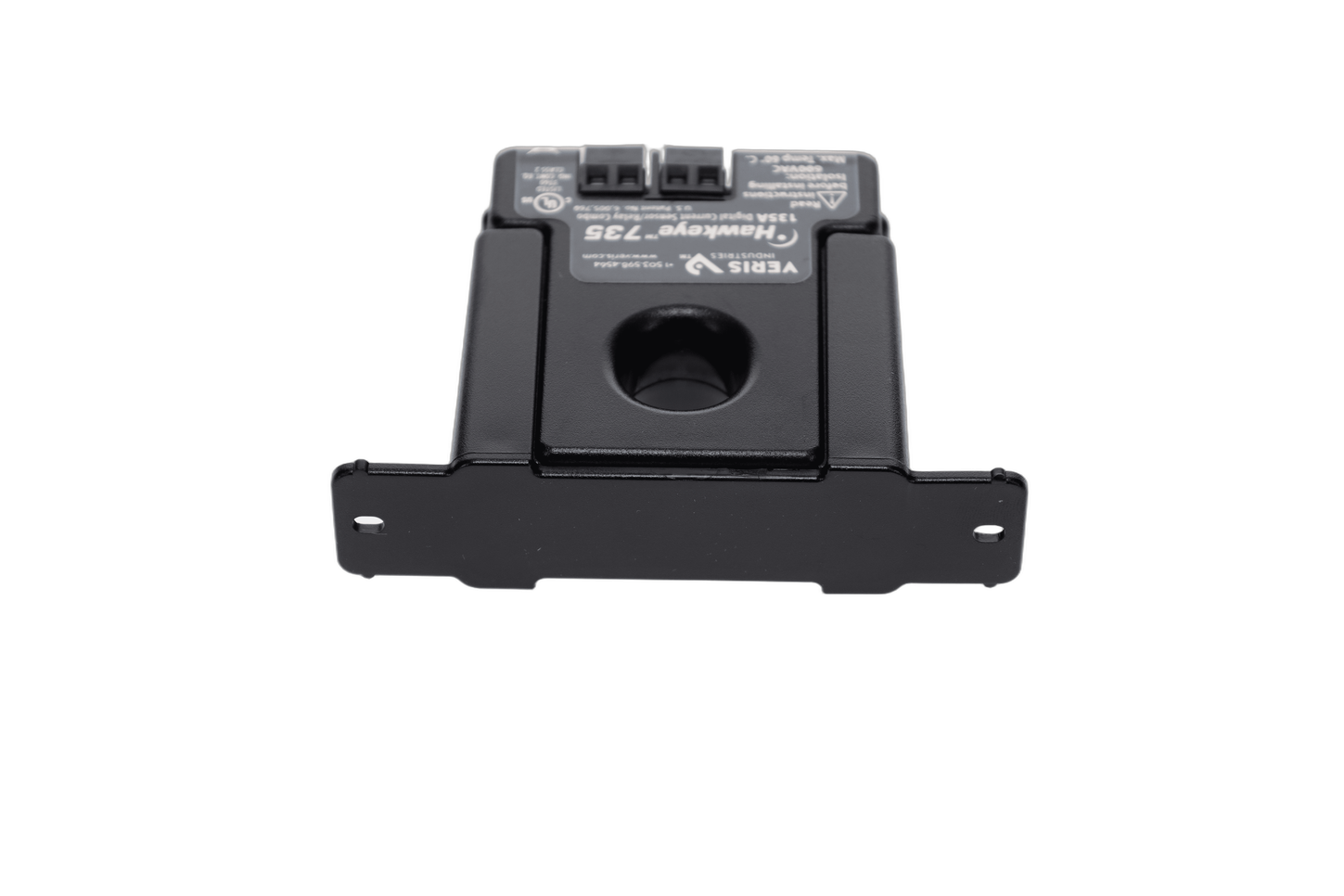

Veris H735
SKU: CS60704MPN: H735Alternate Part #: VER-H735
Current Switch w/Relay: Adjustable Trip Point, 1-135 Amp, 0.1A@30VAC/DC, 1A or less Minimum Trip Point, SPST, N.O. Relay, Solid-Core Housing, LED
$67.92
Unit4 in stock
Product Details
Current Switch w/Relay:
- Adjustable Trip Point* 1-135 Amperage Range* 0.1A@30 VAC/DC* 1A or less Minimum Trip Point* SPST, N.O. Relay* 24VAC/DC Coil Voltage* Solid-Core Housing* LED Status Indicator* Relay Power LED
Attributes
| Product or Component Type | sensor |
| Ambient Air Temperature for Operation | -15-60 °C |
| Product Certifications | UL |
| Type of Measurement | AC current |
| Device Application | building automation systems |
| Mounting Support | solid core housing |
| Sensor Type | current switch, AC |
| Relative Humidity | 10-90 % RH, non-condensing |
| Relay Type | mechanical |
| Network Frequency | 50…60 Hz |
| Switch Function | SPST |
| AWG Gauge | AWG 24…AWG 14 |
| Relay Coil Voltage | 24-24 V AC; 24-24 V DC |
| Output Current | 1 A at 30 V AC/DC |
| Current Measurement Range | 1…135 A |
| Load Type | inductive: 3 Aat250 V AC; inductive: 3 Aat30 V DC; resistive: 5 Aat250 V AC; resistive: 5 Aat30 V DC |
| Opening Diameter | 18 mm |
Specifications
| SKU | CS60704 |
|---|---|
| MPN | H735 |
| Alternate Part # | VER-H735 |
