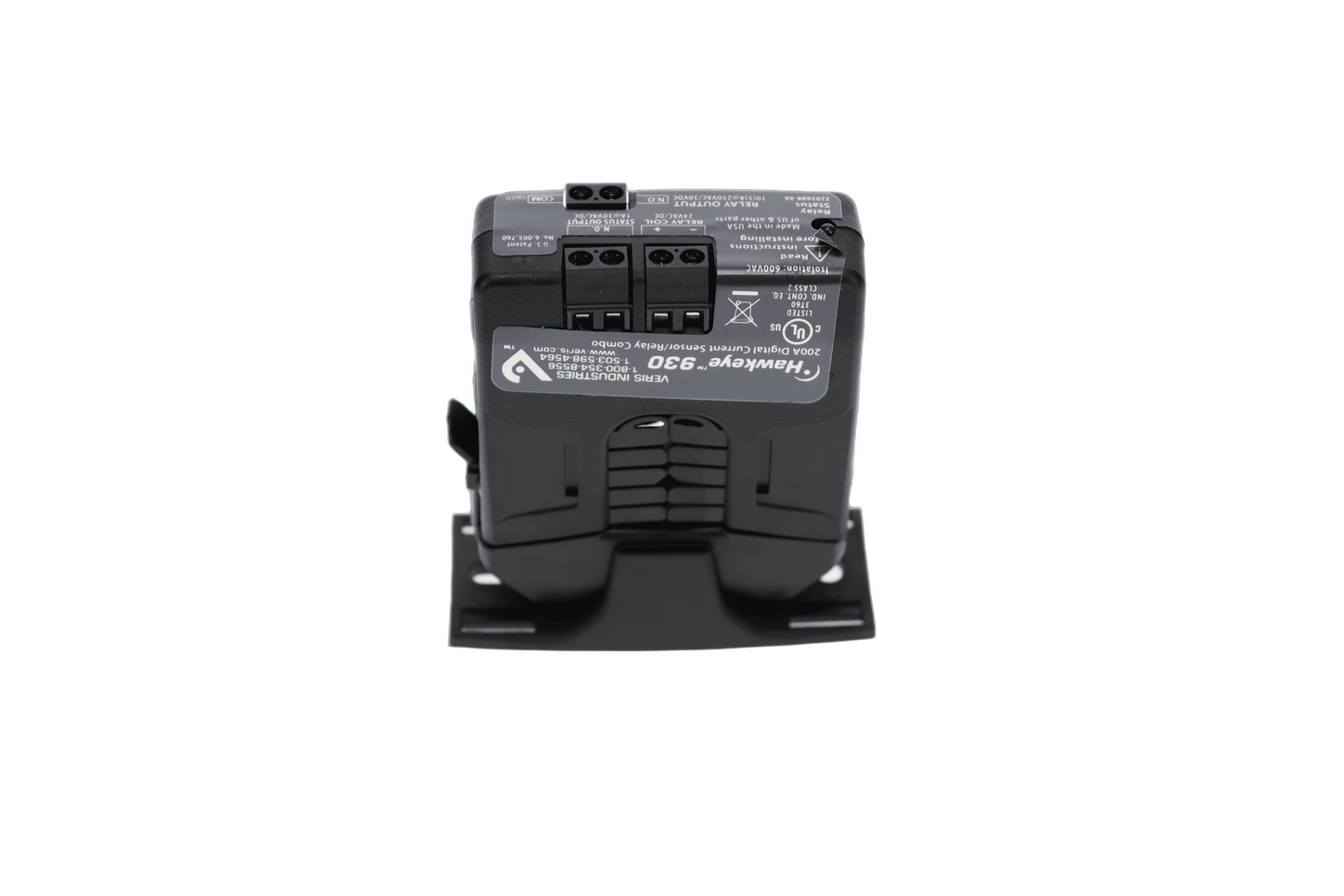

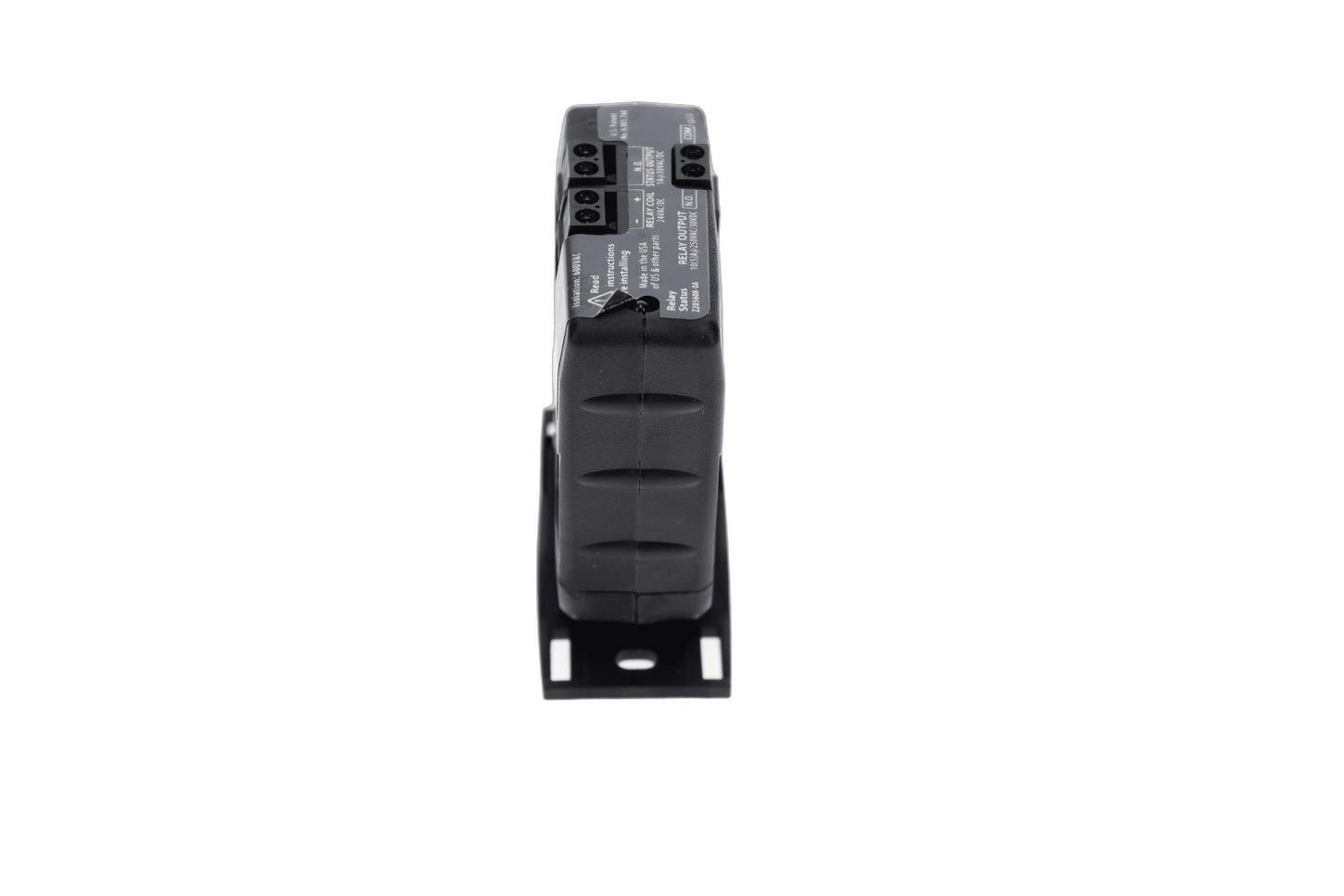

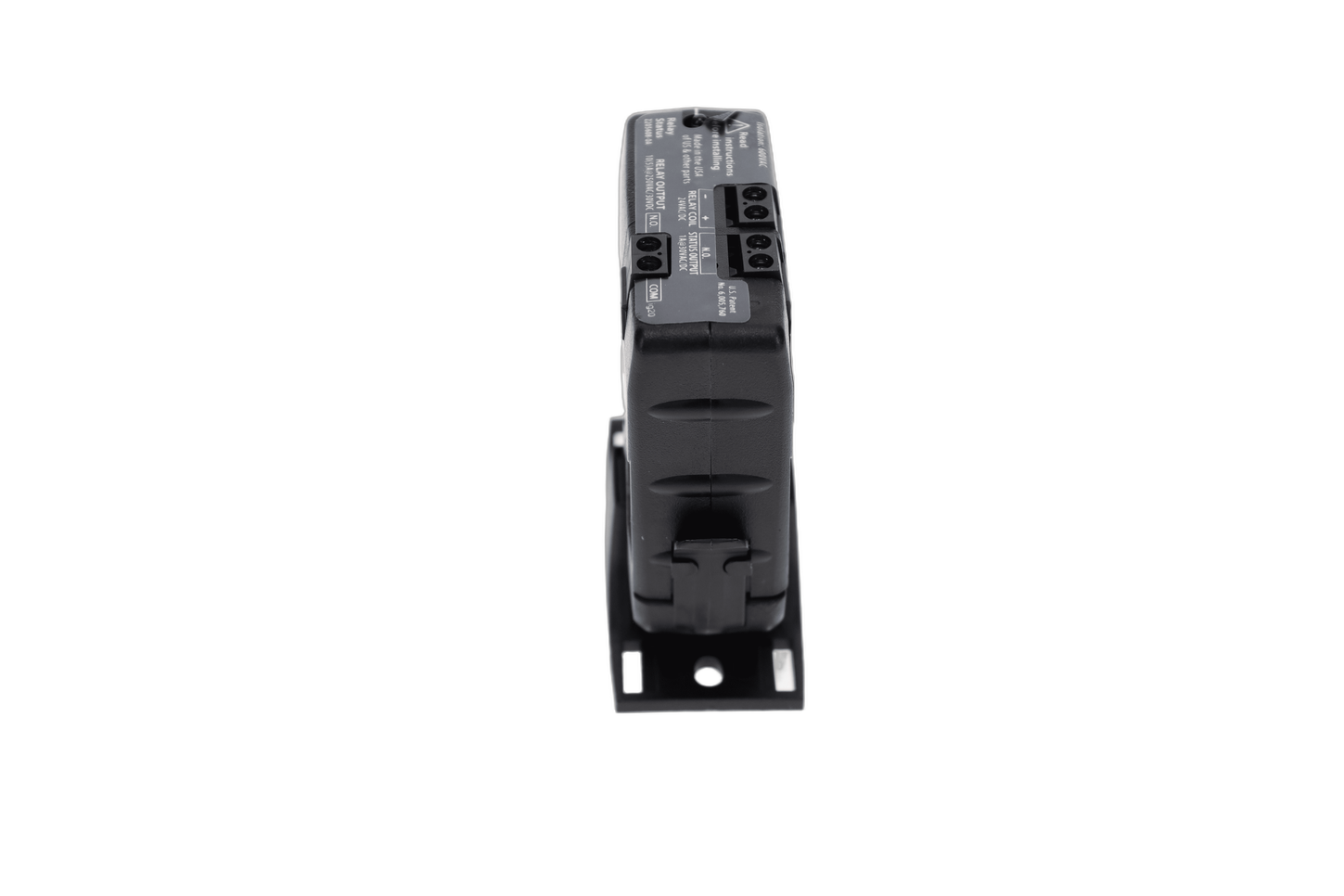

Veris H930
SKU: CS2542129MPN: H930Alternate Part #: VER-H930
Current Switch w/Relay: Fixed Trip Point, 1.5-200 Amp, N.O. 1.0A@30VAC/DC, 1.5A or less Fixed Trip Point, SPST, N.O. Relay, 24VAC/DC Relay Coil
$50.03
Unit2 in stock
Product Details
Current Switch w/Relay:
- Fixed Trip Point* 1.5-200 Amperage Range* Normally Open 1.0A@30VAC/DC Status Output* 1.5A or less Fixed Trip Point* SPST, N.O. Relay* 24VAC/DC Coil Voltage* Split-Core Housing* Relay Power LED* UL Listed
Attributes
| Product or Component Type | sensor |
| Ambient Air Temperature for Operation | -15-60 °C |
| Product Certifications | UL; CE |
| Type of Measurement | AC current |
| Device Application | building automation systems |
| Mounting Support | split core housing |
| Sensor Type | current switch, AC |
| Relative Humidity | 10-90 % RH, non-condensing |
| Network Frequency | 50…60 Hz |
| Switch Function | SPST |
| AWG Gauge | AWG 24…AWG 14 |
| Relay Coil Voltage | 24-24 V AC; 24-24 V DC |
| Output Current | 1 A at 250 V AC |
| Current Measurement Range | 1.5…200 A |
| Opening Width | 21 mm |
| Load Type | inductive: 5 Aat250 V AC; inductive: 5 Aat30 V DC; resistive: 10 Aat250 V AC; resistive: 10 Aat30 V DC |
Specifications
| SKU | CS2542129 |
|---|---|
| MPN | H930 |
| Alternate Part # | VER-H930 |
