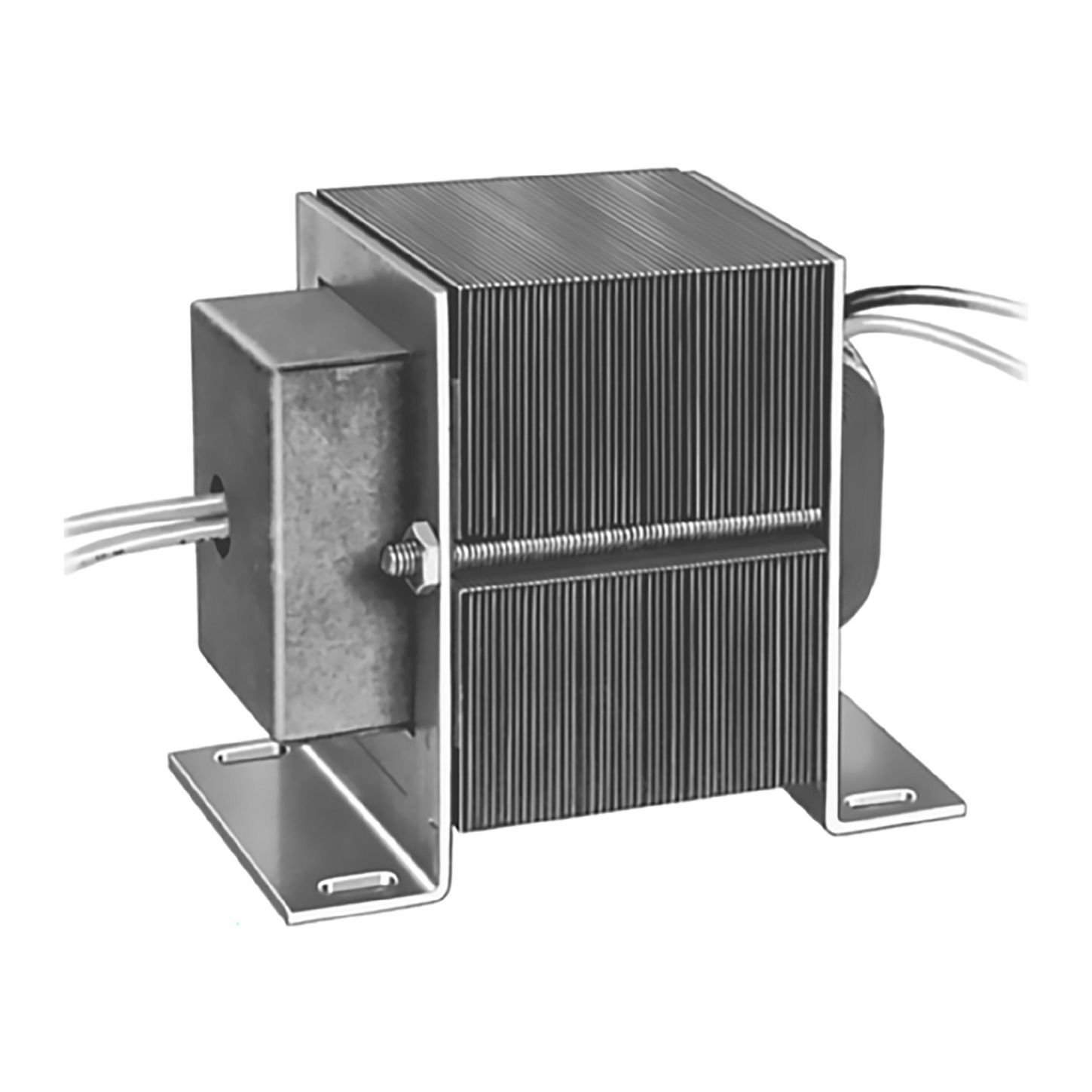

Resideo AT88A1005

Foot mounted 120 V AC Transformer with 12 in leadwires and internally fused secondary for overload protection.

Powers 24 Vac air conditioning circuits and other applications that do not exceed the listed ratings

Features

• Meets NEC Class 2 not wet, Class 3 wet and U.L. 1585 requirements.
• Overload protection provided.
• Color-coded leadwires for primary connections

Specifications

• Electrical Ratings-Primary: 120 Vac
• Electrical Ratings-Secondary: 26.5 V.O.C.
• Frequency: 60 Hz
• Frequency: 50 Hz
• Mounting: Foot mounted
• NEMA Rating: NEMA TYPE E
• Electrical Connections (Primary)(in.): 12” Lead Wires
• Electrical Connections (Secondary)(in.): 12? Lead Wires
• Electrical Ratings-Output: 24 Vac at 75 VA
• Dimensions: 2 15/16 in. high x 2 3/16 in. wide x 3 5/16 in. deep
• Temperature Ratings: -20 F to +105 F
• Includes: Internally fused secondary for overload protection.
