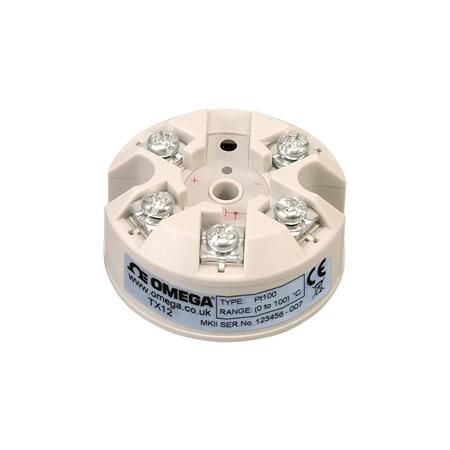

Omega TX12
SKU: CS2069136MPN: TX12
RTD Head Mount Temperature Transmitter w/ User Trim
Product Details
- User Trim—Null Out Sensor Error
- Unique Push Button Configuration Without PC
- High Stability
- Programmable Burnout
Attributes
| Height | 21 mm |
| Weight | 31 g |
| Accuracy | ± 5 µA |
| Diameter | 43 mm |
| RTD Type | Pt100 |
| Approvals | BS EN 61326 ; 1998 – Electrical equipment for measurement and control ANNEX A ; ANNEX F |
| Series ID | TX12-Head-Mnt-Temp-Tx |
| Span, Min | 25°C |
| Input Type | RTD |
| Calibration | Pushbutton |
| Output Load | [(Vsupply-10)/20] kΩ |
| Sensor Type | Transmitter |
| Probe Length | 0 mm |
| Warm Up Time | 1 min to full accuracy |
| Output Detail | 2 wire, 4 to 20 mA current loop Maximum Output: 21.5 mA (in high burnout condition) Minimum Output: 3.8 mA (in low burnout condition) |
| Response Time | 1 sec |
| Start Up Time | I out < 4 mA during start up |
| Humidity Range | 10 to 90% RH non condensing |
| Input Accuracy | ± 0.1 °C |
| Setup Controls | Pushbutton, Program LED will flash in bursts |
| Supply Current | <200 µA |
| Supply Voltage | 10 to 30 Vdc |
| Accuracy Detail | (mA output/2000) or 5 uA (whichever is the greater) |
| Thermal Effects | 1 uA/°C, 25 ppm/°C |
| Update Rate, Max | 500 ms |
| Country of Origin | United Kingdom |
| Electrical Output | 4 to 20 mA |
| Supply Power Type | DC |
| Self Heating Effect | 0.2 uA/V |
| Lead Resistance, Max | 20 Ω per leg |
| Electrical Connection | Screw Terminal |
| Lead resistance effect | 0.002°C/Ω |
| Programmable Functions | offset, Range, Sensor Burnout Indication |
| Wiring/Connector Table | 2- or 3-Wire |
| Temperature Coefficient | 0.00385 Ω/°C |
| Temperature Input Range | -200 to 850°C |
| Storage Temperature, Max | 90 °C |
| Storage Temperature, Min | -50 °C |
| Operating Temperature, Max | 85 °C |
| Operating Temperature, Min | -40 °C |
Specifications
| SKU | CS2069136 |
|---|---|
| MPN | TX12 |
