Omega

Omega HX200HD

SKU: CS5798598MPN: HX200HD

Duct,Wall,Remote Mount Temp,Humidity,\& Dewpoint Transmitters

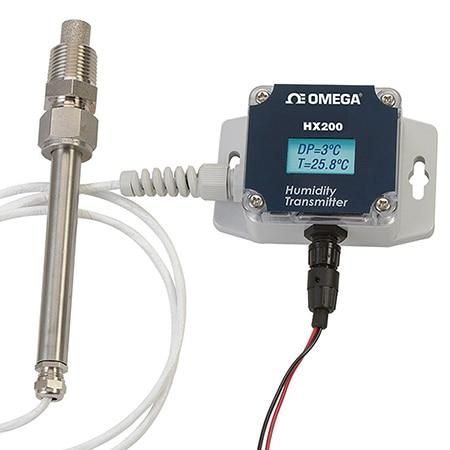

Omega HX200HD, HX200HR
$1,421.49
Unit
Available on backorder
remove
add

Documents

Product Details

  • High Accuracy with Certificate of Calibration
  • High Temperature Sensor to 200°C (392°F) (at 0% RH)
  • High Pressure Sensor to 750 psi (51.7 bar)
  • Switchable for Dew Point or Humidity

Attributes

Width 63.5 mm
Filter Stainless Steel
Length 88.9 mm
Weight 1.8 kg
Accuracy ± 1 °C (± 1.8 °F)
Series ID HX200-Srs-TRH-Sig-Cond
Resolution 0.1
Display Type 2 line LCD
Probe Length 10.16 cm
Output Detail Single Output: 4 to 20 mA loop powered (relative humidity or dew point)
Pressure Note Maximum Sensor Pressure Rating
Probe Diameter 1.27 cm
Supply Voltage 12 to 28 Vdc
Accuracy Detail ± 1.0°C from -20 to 40°C (-4 to 104°F); ± 3.0°C below -20°C (-4°F)
Pressure Limits Up to 750 psi
Sensor Material 304 Stainless Steel
Measurement Type Temperature, Dew Point
Country of Origin United States
Electrical Output 4 to 20 mA
Relative Humidity 1 to 95%
Supply Power Note 4 to 20 mA loop powered, 2-wire 24 Vdc (typical) 12 to 28 Vdc
Supply Power Type Loop Powered
Additional Features 1 NIST traceable calibration certificate included, Selectable C or F
Process Connection Size ½ in
Process Connection Type NPT Male and Female
Measurement Pressure, Min 0 psi
Dew Point Temperature, Max 40 °C
Dew Point Temperature, Min -60 °C
Operating Temperature, Max 200 °C
Mounting Holes Center Length 78.7 mm

Specifications

SKUCS5798598
MPNHX200HD
