Omega HX94C
SKU: CS975761MPN: HX94C

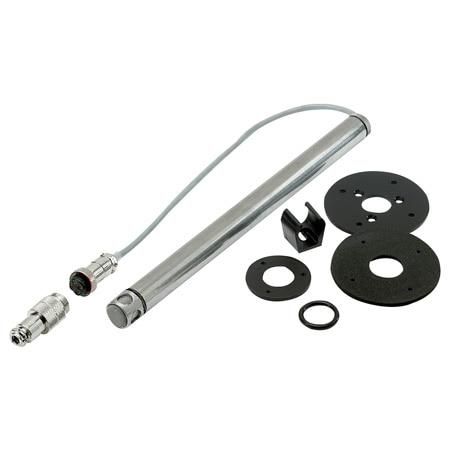

Temperature/Relative Humidity Conditioner/Transmitter Probe
$658.08
UnitAvailable on backorder
Product Details
- ±2% RH Accuracy ±0.6C Temperature Accuracy
- Stainless Steel NEMA 4 Housing
- Duct or Wall Mountable Mounting Hardware Included
- 4-20mA or 0-1Vdc Output Options
Attributes
| Weight | 198 g |
| Accuracy | ±0.6 °C |
| Series ID | HX94-Srs-Temp-RH-Sig-Cond |
| Wire Gauge | 26 to 18 AWG |
| Flange Note | Removable, variable 25.4 to 227 mm (1 to 9”) depth; 70 mm (2.75”) dia., duct hole 21 mm (0.812”) dia. 4 mtg holes. 4 mm (0.156”) dia. (for #6 sheet metal screws) on 51 mm (2.00”) dia. circle; wall mounting bracket included |
| Flange Size | 227 mm |
| Cable Length | 305 mm |
| Probe Length | 254 mm |
| Repeatability | ± 0.3°C |
| Time Constant | (for 60% response) Less than 2 sec in moving air (1m/sec) less than 10 sec in still air |
| Probe Diameter | 19 mm |
| Supply Voltage | 6 to 30 Vdc |
| Measurement Type | Temperature, Humidity |
| Country of Origin | United States |
| Electrical Output | 4 to 20 mA |
| Enclosure Ratings | NEMA Type 4 |
| Relative Humidity | 3 to 95% |
| Supply Power Type | DC |
| Enclosure Material | Stainless Steel |
| Electrical Connection | GX16 4-pin female |
| Relative Humidity Accuracy | ± 2% RH |
| Temperature Measurement, Max | 85 °C |
| Temperature Measurement, Min | -20 °C |
| Time Constant, Relative Humidity | (for 90% response at 25°C; in moving air, 1m/sec.) Less than 20 seconds, 10 to 90% RH Less than 30 seconds, 90 to 10% RH |
Specifications
| SKU | CS975761 |
|---|---|
| MPN | HX94C |
