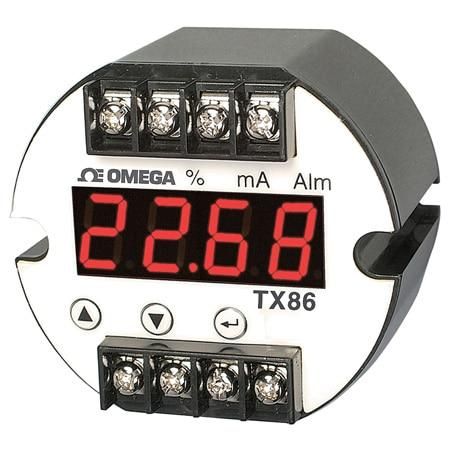

Omega TX86
SKU: CS635339MPN: TX86
Programmable Head Mount Temperature Transmitter for Thermocouples
Product Details
- Universal Input RTD, T/C, Ω, POT and mV
- Models for 100, 200, 500, 1000 Ω, 0.00385 2- or 3-Wire RTD’s
- Field Scalable
- Programming by Push-Buttons on Front
Attributes
| Height | 42 mm |
| Weight | 80 g |
| Accuracy | ± 0.2 % |
| Diameter | 62 mm |
| Mounting | Head-mounted |
| RTD Type | Pt100, Pt200, Pt500, Pt1000, NI120, CU10 |
| Isolation | 1000 Vrms Continuous |
| Series ID | TX86-Transmitter |
| Span, Min | 50°C |
| Stability | ± 0.15%/ year (Long Term Stability) |
| Input Type | Thermocouple, RTD, Resistance, Potentiometer, Voltage |
| Resolution | 2 μA |
| Output Load | 50 x (Vsupply – 12V) Ω |
| Sensor Type | Transmitter |
| Probe Length | 0 mm |
| Output Detail | 4/20 mA calibrated; 3.8 to 20.5 mA linear Sensor Burnout: Upscale >21 mA, downscale <3.8 mA |
| Response Time | 1 sec with dampening off |
| Humidity Range | 20 to 90% RH non-condensing |
| Setup Controls | 3 pushbuttons on front |
| Supply Current | 30/150 µA ± 2% |
| Supply Voltage | 12 to 30 Vdc |
| Accuracy Detail | ± 0.2% of full scale input |
| Housing Material | Plastic, Polycarbonate |
| Input Resistance | 0 to 2000 Ω |
| Country of Origin | Taiwan |
| Electrical Output | 4 to 20 mA |
| Supply Power Note | 12 to 30 Vdc, LED indicator reverse polarity protected 60 Vdc |
| Supply Power Type | DC |
| Thermocouple Type | J, K, T, E, N, R, B, S |
| Input Control Signal | -5 to 60 mV |
| Electrical Connection | Screw Terminal |
| Programmable Functions | alarm, °C/°F, Cold Junction, control action, Dampening, Deadband, offset, Range, Sensor Burnout Indication |
| Wiring/Connector Table | 2- or 3-Wire |
| Temperature Coefficient | ± 0.01%/°C |
| Temperature Input Range | 0 to 260 °C |
| Storage Temperature, Max | 70 °C |
| Storage Temperature, Min | -20 °C |
| Cold Junction Compensation | ±2°C |
| Operating Temperature, Max | 70 °C |
| Operating Temperature, Min | -20 °C |
Specifications
| SKU | CS635339 |
|---|---|
| MPN | TX86 |
