Dwyer 657C-1

Name: Dwyer 657C-1
Brand: Dwyer
SKU: CS285021
Availability: OutOfStock

SKU: CS285021MPN: 657C-1Alternate Part #: 100498-00

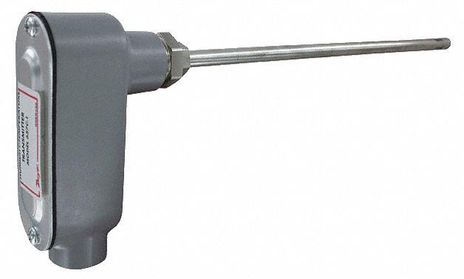

657C-1 RH TRANSMITTER

Product Details

Relative humidity/temperature transmitter.

Accuracy	Relative humidity: ±2% (10 to 90% RH), ±3% (0 to 10% and 90 to 100% RH); Temperature ±1°F (0.5°C).
Commodity Code	0303
Compensated Temperature Range	32 to 140°F (0 to 60°C).
Electrical Connection	4 screw type terminals.
Mounting Orientation	Mount in any position.
Output Signal	2 channels each 4-20 mA. Loop powered on the RH channel.
Power Requirement	10-35 VDC.
Pressure Limit	1 psi (0.7 bar).
Probe	657-1: SS 5/16” x 10” (0.8 x 25.4 cm); 657C-1: 5/16Ë_x009d_ x 9-1/10Ë_x009d_ (0.8 x 23.1cm).
Range	Relative humidity: 0 to 100%; Temperature: 32 to 212°F (0 to 100°C).
Service	Dry clean air.
