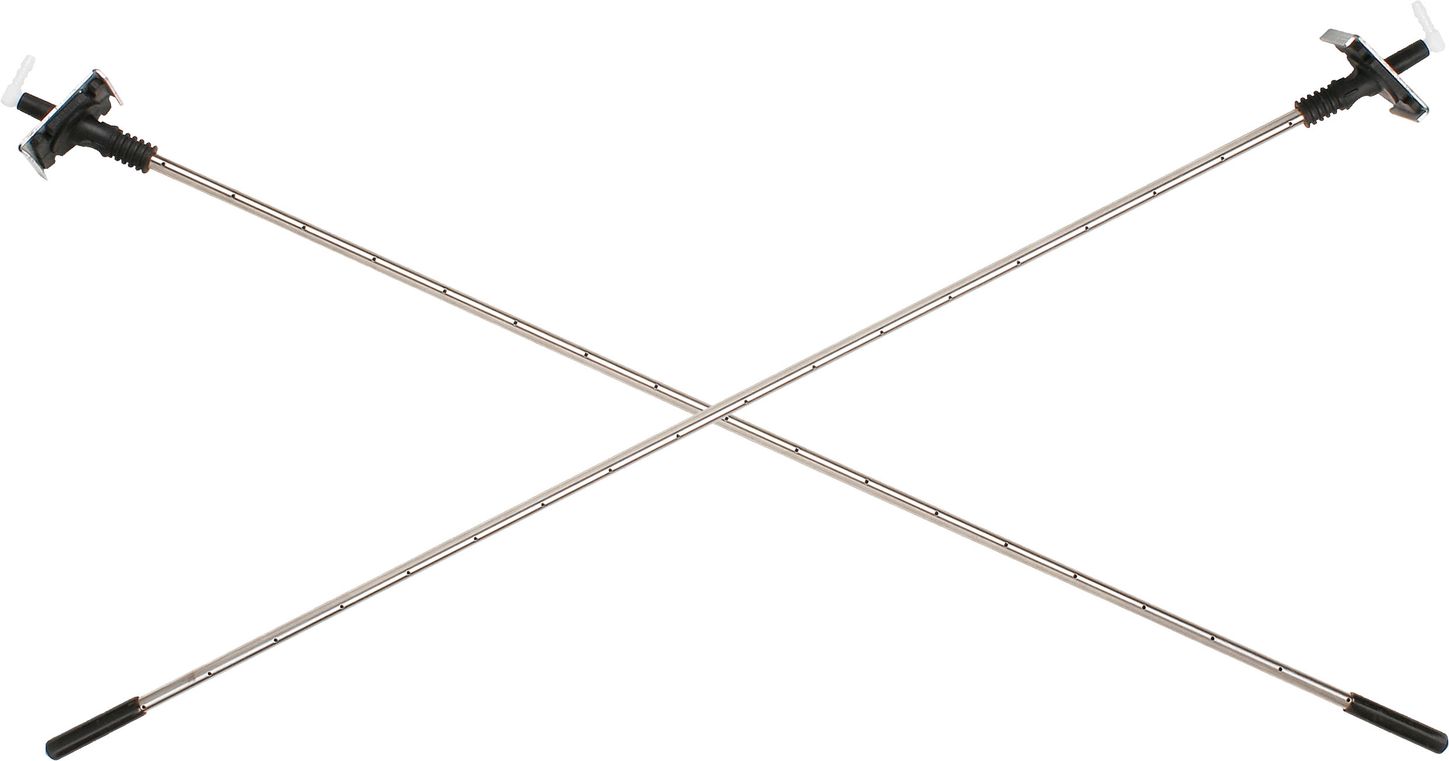

Dwyer AFG-1
SKU: CS4115862MPN: AFG-1Alternate Part #: 124410-00
AVERAGING FLOW GRID AFG-1
$795.58
UnitAvailable on backorder
Product Details
Averaging flow grid, 5/16” (8 mm) tube diameter, 27” (688 mm) tube length.
Attributes
| Accuracy | ±5%. |
| Commodity Code | R8DB |
| Diameter Of Tubes | 5/16” (8 mm) or ⅝” (16 mm). |
| Maximum Duct Diagonal | 60.4” (153.4 cm). |
| Maximum Duct Diameter | 59.4” (150.9 cm). |
| Maximum Temperature | 176°F (80°C). |
| Process Connection | 5/16” barbed. |
| Process Connections | 5/16” barbed. |
| Service | Monitor air or compatible gas flow. |
| Velocity Range | 295.2 ft/min to 5904 ft/min (1.5 to 30 m/sec). |
| Wetted Material | 304 SS, PVC, polyurethane, acetyl plastics, and neoprene rubber. |
Specifications
| SKU | CS4115862 |
|---|---|
| MPN | AFG-1 |
| Alternate Part # | 124410-00 |
