Dwyer 473B-1

Name: Dwyer 473B-1
Brand: Dwyer
SKU: CS4124534
Price: 808.66 USD
Availability: OutOfStock

SKU: CS4124534MPN: 473B-1Alternate Part #: 100626-00

473B-1 DIG TEST INST, VP1

$808.66

Unit

Available on backorder

Quantity

remove

add

Product Details

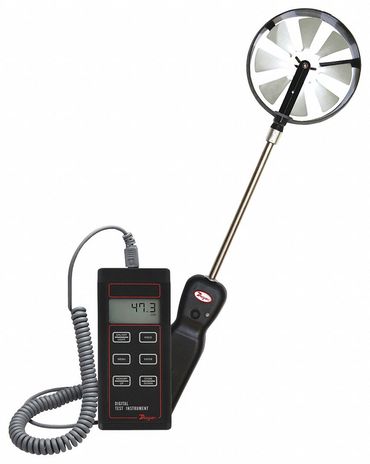

100 mm vane thermo-anemometer test instrument

Accuracy	Air Velocity: ±1.5% of reading ±20 fpm (±0.1 m/s) [0.25 to 10 m/s]; ±1.5% of reading ±40 fpm (±0.2 m/s) [10 to 20 m/s]; ±1.5% of reading ±60 fpm (±0.3 m/s) [20 to 25 m/s]; Temperature: ±0.54°F @ 77°F (±0.3°C @ 25°C); Relative Humidity: ±2% @ 77°F (25°C) [10 to 90% RH]; ±4% [0 to 10, 90 to 100% RH].
Commodity Code	0241
Display	4.5 digit backlit display.
Power Requirement	9 V alkaline battery, installed non-functional, user replaceable.
Range	Air Velocity: 40 to 5000 fpm (0.2 to 25 m/s); Volumetric Air Flow: 19,999 in selected flow units; Temperature: -20 to 212°F (-29 to 100°C); Relative Humidity: 0 to 100% RH.
Response Time	Air Velocity: 1 s; Volumetric Air Flow: 1 s; Temperature: 1.5 s; Relative Humidity: 1.5 s.
Service	Dry, clean air.
Vane Material	Anodized aluminum.
