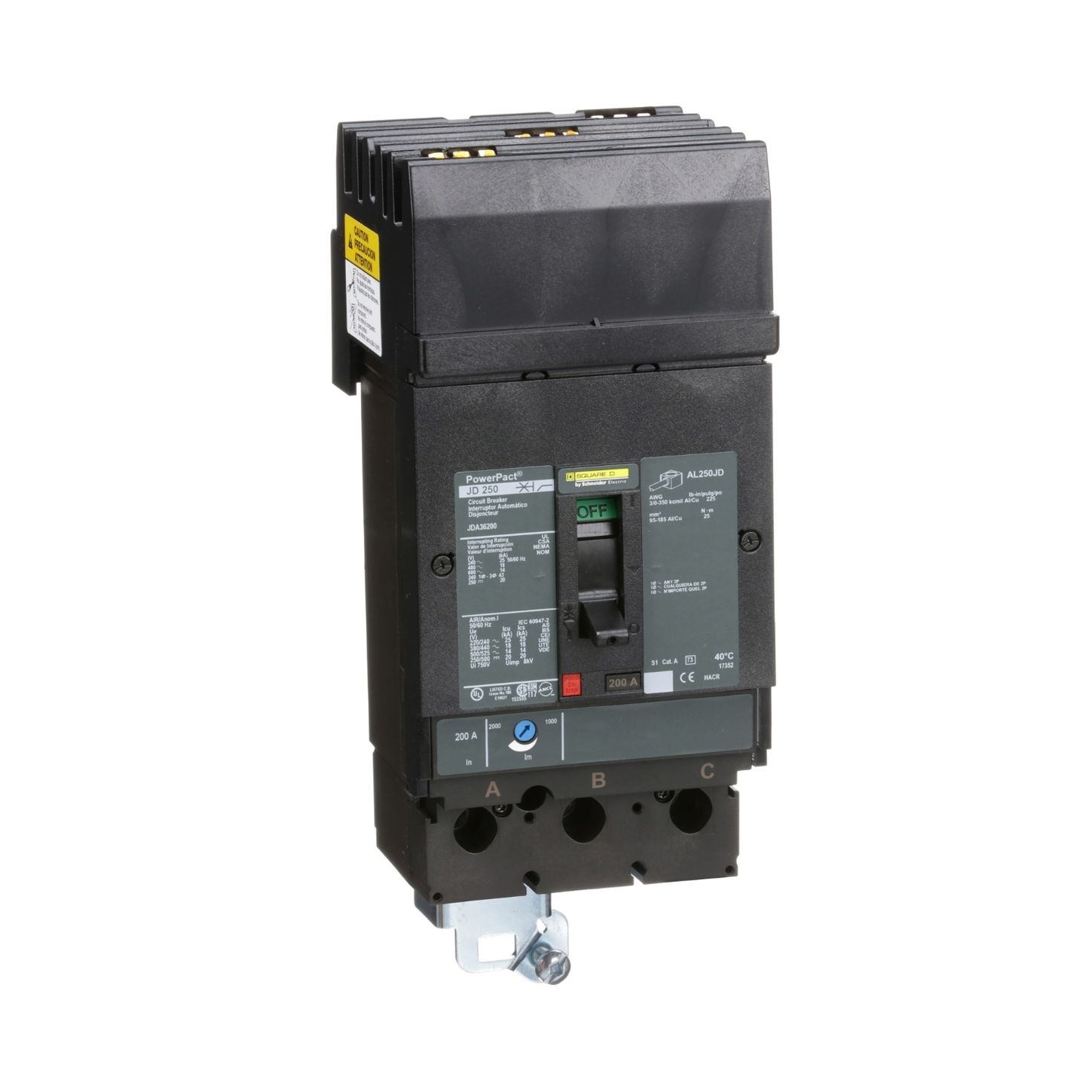

Square D JDA36200

Name: Square D JDA36200
Brand: Square D
SKU: CS1664392
Availability: OutOfStock

SKU: CS1664392MPN: JDA36200UPC/EAN: 785901539766

Circuit breaker, PowerPacT J, 200A, 3 pole, 600VAC, 14kA, I-Line, thermal magnetic, 80%, ABC

Product Details

PowerPact J - Frame Circuit breaker, I-Line, thermal-magnetic, 200 A, 3P, 14 kA at 600 VAC

Ambient Air Temperature For Operation	-2-70 °C
Ambient Air Temperature For Operation 1	-2-70 °C
Ambient Air Temperature For Storage	-50-85 °C
Breaking Capacity Code	D
Communication Interface	Modbus# #Ethernet
Continuous Current Rating	0.80000001192093
Control Type	toggle
Device Application	distribution
Long Time Pick Up Adjustment Range	0.25…1 x In
Magnetic Hold Current	1000 A
Magnetic Tripping Current	2000-2000 A
Mounting Support	bracket
Network Frequency	50/60 Hz
Phase Connection	ABC
Poles Description	3P
Product Name	PowerPact J
Product Or Component Type	circuit breaker
Protection Type	overload protection# #short-circuit protection
Quality Labels	CE
Range	PowerPact
Standards	UL# #CSA# #NEMA# #NOM-003-SCFI-2000# #IEC 60947-2
Terminal Identifier	AL250JD
Utilisation Category	category A
