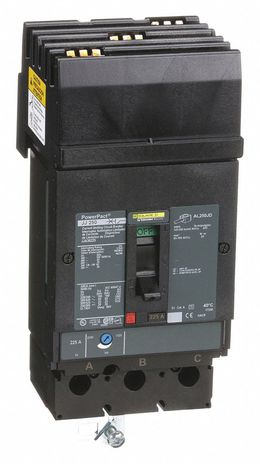

Square D JJA36225
SKU: CS1664654MPN: JJA36225UPC/EAN: 785901795681
Circuit breaker, PowerPacT J, 225A, 3 pole, 600VAC, 25kA, I-Line, thermal magnetic, 80%, ABC
Contact us for pricing and availability
Product Details
MOLDED CASE CIRCUIT BREAKER
- Line Rated Current : 225 A
- Number of Poles : 3P
- System Voltage : 250 V DC, 600 V AC
Attributes
| Ambient Air Temperature For Operation | -2-70 °C |
| Ambient Air Temperature For Operation 1 | -2-70 °C |
| Ambient Air Temperature For Storage | -50-85 °C |
| Breaking Capacity Code | J |
| Communication Interface | Modbus# #Ethernet |
| Continuous Current Rating | 0.80000001192093 |
| Control Type | toggle |
| Device Application | distribution |
| Long Time Pick Up Adjustment Range | 0.25…1 x In |
| Magnetic Hold Current | 1125 A |
| Magnetic Tripping Current | 2250-2250 A |
| Mounting Support | bracket |
| Network Frequency | 50/60 Hz |
| Phase Connection | ABC |
| Poles Description | 3P |
| Product Name | PowerPact J |
| Product Or Component Type | circuit breaker |
| Protection Type | overload protection# #short-circuit protection |
| Quality Labels | CE |
| Range | PowerPact |
| Standards | UL# #CSA# #NEMA# #NOM-003-SCFI-2000# #IEC 60947-2 |
| Terminal Identifier | AL250JD |
| Utilisation Category | category A |
Specifications
| SKU | CS1664654 |
|---|---|
| MPN | JJA36225 |
| UPC/EAN | 785901795681 |
