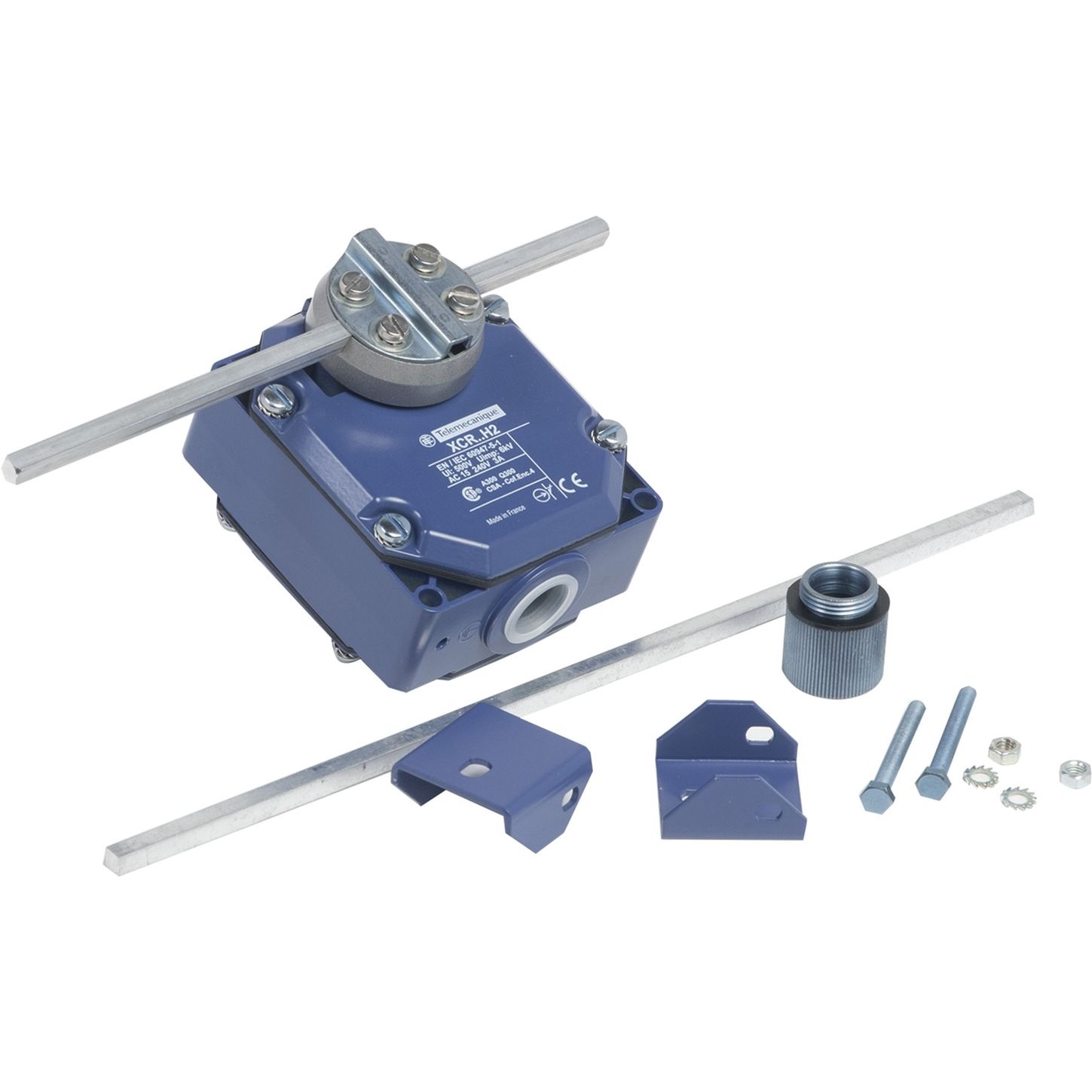

Square D XCRF17H2

Name: Square D XCRF17H2
Brand: Square D
SKU: CS1656316
Availability: OutOfStock

SKU: CS1656316MPN: XCRF17H2

Limit switch, Limit switches XC Standard, 240VAC/250VCD 10 A 2 NO + 2NC, XCR + options

Product Details

LIMIT SWITCH 240VAC/250VCD 10A 2NO + 2NC - XCR + options, 4 Poles, 2 x (1 NC + 1 NO)

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Body Material	zinc alloy
Body Type	fixed
Contact Block Per Direction Control Circuit	1 per direction
Contact Operation	snap action
Contacts Insulation Form	Zb
Contacts Type And Composition	2 x (1 NC + 1 NO)
Device Short Name	XCR
Fixing Mode	by the body
Head Type	rotary head
Material	metal
Maximum Displacement Angle	-90 °# #90 °
Mechanical Durability	10000000 cycles
Minimum Actuation Speed	0.01 m/min
Minimum Torque For Tripping	0.6 N.m
Movement Of Operating Head	rotary
Number Of Poles	4.0
Positive Opening	with
Positive Opening Minimum Torque	0.7 N.m
Product Certifications	CCC# #CSA
Product Or Component Type	limit switch
Product Specific Application	for hoisting and mechanical handling applications
Protective Treatment	TC
Range Of Product	OsiSense XC
Series Name	special format
Standards	IEC 60204-1# #EN 60947-5-1# #CSA C22.2 No 14# #IEC 60947-5-1# #EN 60204-1# #NF C 79-130
Switch Actuation	by any moving part
Terminals Description Iso N 1	(21-22)NC# #(13-14)NO
