Square D XCRF57

Name: Square D XCRF57
Brand: Square D
SKU: CS1656318
Availability: OutOfStock

SKU: CS1656318MPN: XCRF57

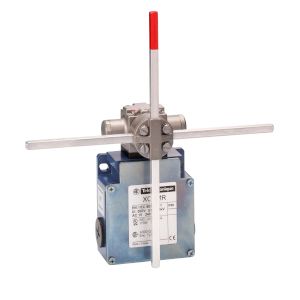

Limit switch, Limit switches XC Standard, XCR, metal stay put T rods lever square rod 6 mm, 2X(1NC+NO)

Product Details

OsiSense Limit Switch XCR

Head Type: Rotary* Type of Operator: Metal stay-put crossed rods lever (square rod 6 mm)* Type of Approach: 2 directions lateral approach* Electrical Connection: Screw clamp terminals* Number of Poles: 4-Poles* Contacts Type and Composition: 2 x ( 1NC+NO)* Contact Operation: Slow-break, break before make* Positive Opening: With* Degree of Protection: IP54

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Body Material	zinc alloy
Body Type	fixed
Contact Block Per Direction Control Circuit	1 per direction
Contact Operation	slow-break, break before make
Contacts Insulation Form	Zb
Contacts Type And Composition	2 x (1 NC + 1 NO)
Device Short Name	XCR
Fixing Mode	by the body
Head Type	rotary head
Material	metal
Maximum Displacement Angle	90 °# #-90 °
Mechanical Durability	10000000 cycles
Minimum Actuation Speed	6 m/min
Minimum Torque For Tripping	0.6 N.m
Movement Of Operating Head	rotary
Number Of Poles	4.0
Positive Opening	with
Positive Opening Minimum Torque	0.7 N.m
Product Certifications	CSA# #CCC
Product Or Component Type	limit switch
Product Specific Application	for hoisting and mechanical handling applications
Protective Treatment	TC
Range Of Product	OsiSense XC
Series Name	special format
Standards	EN 60947-5-1# #IEC 60204-1# #NF C 79-130# #IEC 60947-5-1# #CSA C22.2 No 14# #EN 60204-1
Switch Actuation	by any moving part
Terminals Description Iso N 1	(21-22)NC# #(13-14)NO
