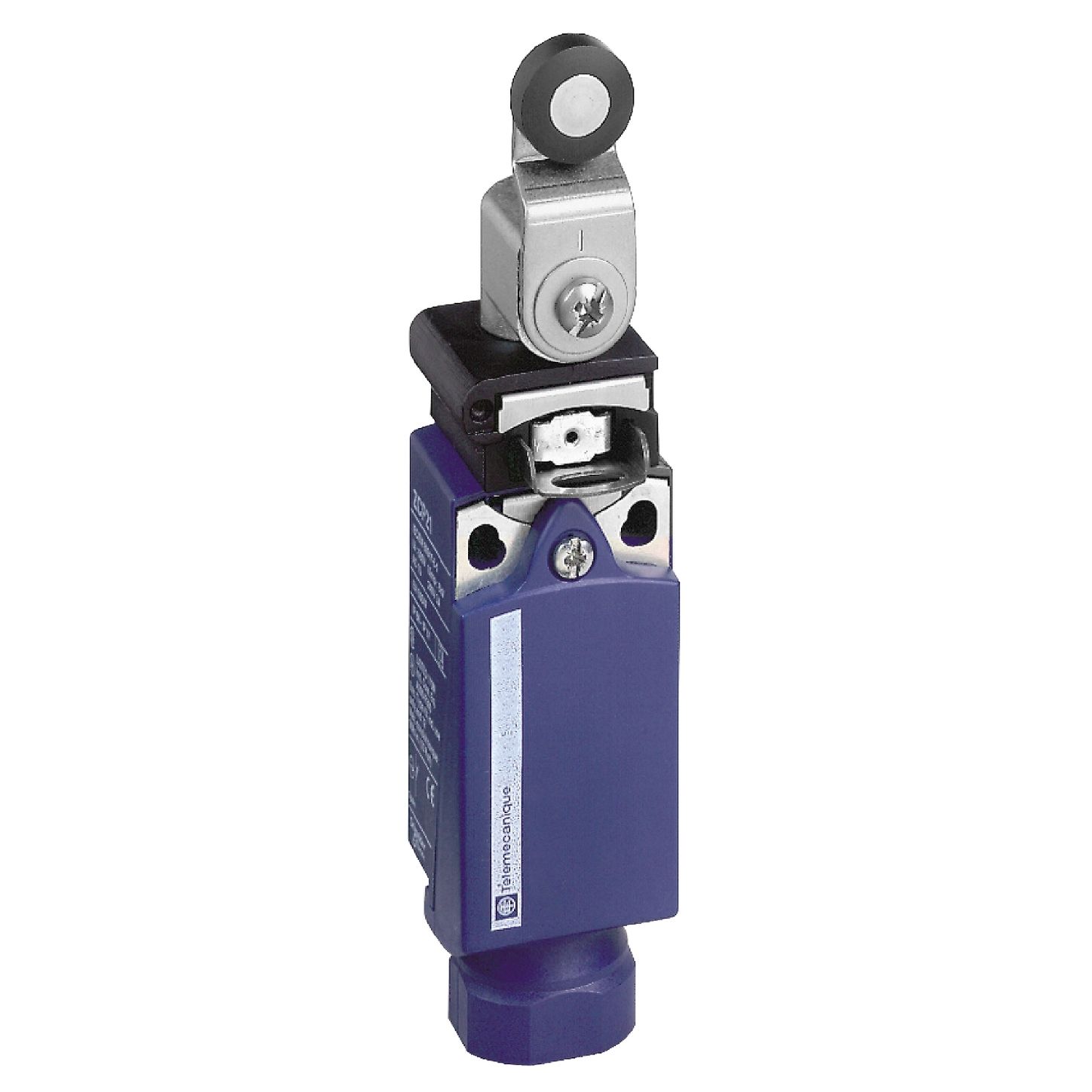

Square D XCPR2518P20

Name: Square D XCPR2518P20
Brand: Square D
SKU: CS4814032
Availability: OutOfStock

SKU: CS4814032MPN: XCPR2518P20

Limit switch, Limit switches XC Standard, XCPR, thermoplastic roller lever, 1NC+1 NO, slow, M20

Product Details

limit switch XCPR - thermoplastic roller lever - 1NC+1NO - slow - M20

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Body Material	plastic
Body Type	fixed
Contact Operation	slow-break, break before make
Contacts Insulation Form	Zb
Contacts Type And Composition	1 NC + 1 NO
Device Short Name	XCPR
Fixing Mode	by the body
Head Material	zamak
Head Type	rotary head
Material	plastic
Minimum Torque For Tripping	0.1 N.m
Movement Of Operating Head	rotary
Number Of Poles	2.0
Positive Opening	with
Positive Opening Minimum Torque	0.25 N.m
Product Certifications	CSA# #UL
Product Or Component Type	limit switch
Protective Treatment	TC
Range Of Product	Telemecanique Limit switches XC Standard
Reset	with
Series Name	standard format
Standards	IEC 60204-1# #IEC 60947-5-1# #EN 60204-1# #CSA C22.2 No 14# #UL 508# #EN 60947-5-1
Switch Actuation	by 30° cam
Terminals Description Iso N 1	(21-22)NC# #(13-14)NO
Tracks	24/40 mm
