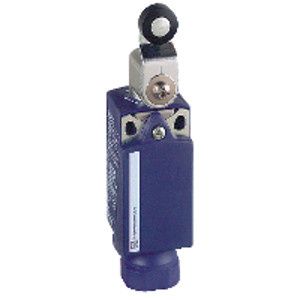

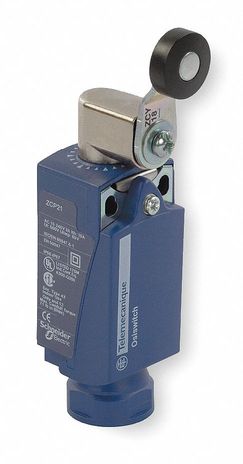

Square D XCKP2118N12

Name: Square D XCKP2118N12
Brand: Square D
SKU: CS1161513
Availability: OutOfStock

SKU: CS1161513MPN: XCKP2118N12

Limit switch, Limit switches XC Standard, XCKP, thermoplastic roller lever, 1NC+1 NO, snap, ½NPT

Product Details

Limit Switch XCKP - Thermoplastic Roller Lever - 1NC+1NO - Snap - ½NPT

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Body Material	plastic
Body Type	fixed
Contact Operation	snap action
Contacts Insulation Form	Zb
Contacts Type And Composition	1 NC + 1 NO
Device Short Name	XCKP
Fixing Mode	by the body
Head Material	zamak
Head Type	rotary head
Material	plastic
Mechanical Durability	10000000 cycles
Minimum Torque For Tripping	0.1 N.m
Movement Of Operating Head	rotary
Number Of Poles	2.0
Positive Opening	with
Positive Opening Minimum Torque	0.25 N.m
Product Certifications	CSA# #CCC# #UL
Product Or Component Type	limit switch
Protective Treatment	TC
Range Of Product	Telemecanique Limit switches XC Standard
Series Name	standard format
Standards	EN 60204-1# #IEC 60947-5-1# #EN 60947-5-1# #IEC 60204-1# #CSA C22.2 No 14# #UL 508
Switch Actuation	by 30° cam
Tracks	24/40 mm
