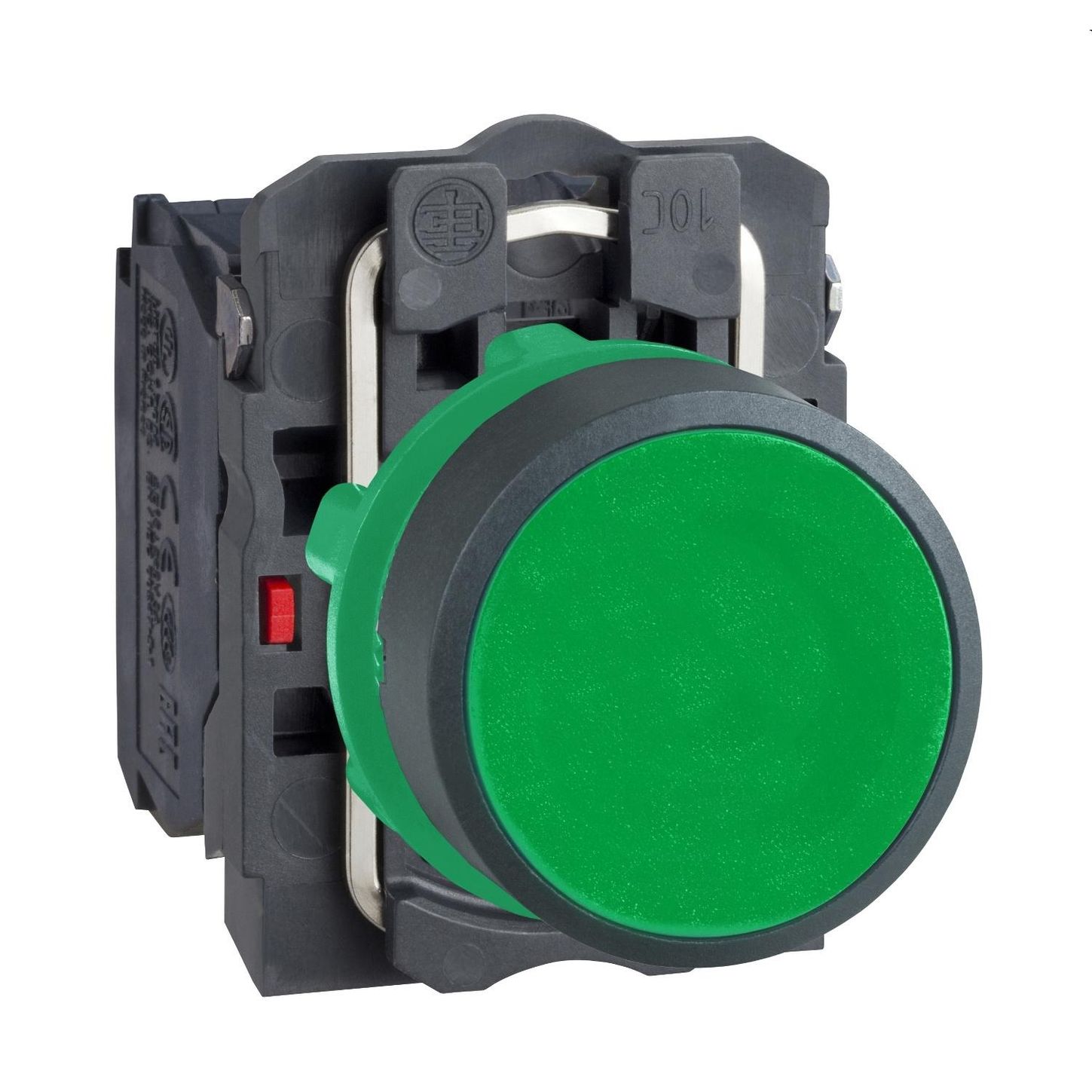

Square D XB5AA35

Name: Square D XB5AA35
Brand: Square D
SKU: CS1641247
Price: 59.22 USD
Availability: OutOfStock

SKU: CS1641247MPN: XB5AA35

Push button, Harmony XB5, plastic, flush, green, 22mm, spring return, unmarked, 1NO+1NC

$59.22

Unit

Available on backorder

Quantity

remove

add

Product Details

Green flush complete pushbutton dia22 spring return 1N0+1NC unmarked

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	plastic# #dark grey plastic
Compatibility Code	XB5
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Type And Composition	1 NO + 1 NC
Contacts Usage	standard contacts
Customizable	yes
Customizable 1	yes
Device Presentation	complete product
Device Short Name	XB5
Fixing Collar Material	plastic
Gcr Bridge	XB5AACUST04
Head Type	standard
Mechanical Durability	10000000 cycles
Mounting Diameter	22 mm
Product Certifications	UL listed# #BV# #CSA# #GL# #DNV# #LROS (Lloyds register of shipping)
Product Or Component Type	push-button
Protective Treatment	TH
Range Of Product	Harmony XB5
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Terminals Description Iso N 1	(13-14)NO# #(21-22)NC
