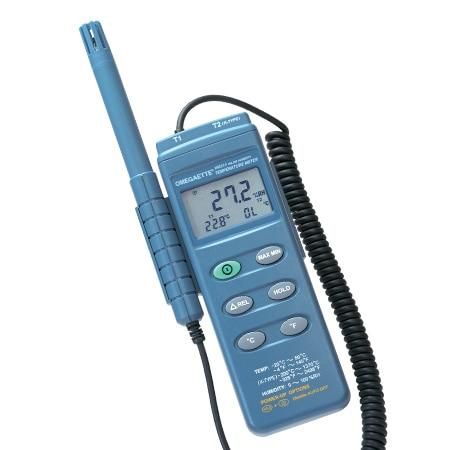

Omega HH311
SKU: CS6036697MPN: HH311
2 Channel Handheld Humidity K Type Thermocouple Datalogger
$401.96
UnitAvailable on backorder
Product Details
- DISCONTINUED, replaced by HH414
- Triple Display
- Temperature/Humidity Probe
- Second Temperature Input
- RS232 Interface
- Timer and REL Functions
- MIN MAX HOLD Functions
- Resolution 0.1
- NIST Certificate
- Auto Power Off
Attributes
| Width | 64 mm |
| Height | 186 mm |
| Length | 30 mm |
| Weight | 320 g |
| Series ID | HH310-311 |
| T2 Accuracy | ± [0.5% rdg ± 1°C (2°F)] |
| Weight Note | Approx 320 g (11.3 oz) |
| Battery life | 100 hr |
| Display Type | LED |
| Probe Length | 190 mm |
| Plug Diameter | 3.5 x 1.35 mm |
| Data Interface | USB, RS232 |
| Probe Diameter | 15 mm |
| Supply Voltage | 9 Vdc |
| T1 Response Time | 40 sec |
| Country of Origin | Taiwan |
| Supply Power Note | One 9V battery (included), AC adapter 9 Vdc 10 mA minimum |
| Supply Power Type | AC, Battery |
| Thermocouple Type | K |
| Number of Channels | 1 |
| Data Interface Note | RS232: 9600 bps, N, 8, 1 serial interface |
| T2 Temperature, Max | 1370 °C |
| T2 Temperature, Min | -200 °C |
| Temperature Accuracy | ± 0.7 °C |
| Additional Features 1 | MIN/MAX/REL/HOLD Functions , Auto Power-Off |
| Electrical Connection | Miniature Male Thermocouple Connector |
| Probe Dimensions Note | 190 x 15 mm (7.5 x 0.6”), cable stretches to 1.5 m (5’) |
| Humidity Response Time | 75 sec |
| Temperature Resolution | 0.1 °C |
| Temperature Sensor Type | Thermocouple |
| Storage Temperature Note | -10 to 60°C (14 to 140°F), 0 to 80% non-condensing |
| Storage Temperature, Max | 60 °C |
| Storage Temperature, Min | -10 °C |
| Operating Temperature Note | 0 to 50°C (32 to 122°F), 0 to 90% non-condensing T1: -20 to 60 °C T2: -200 TO 1370 °C |
| Temperature Resolution Note | 0.1 (except T2 for -200 > T2 > 200) |
| Measuring Temperature Range, Max | 60 °C |
| Measuring Temperature Range, Min | -20 °C |
Specifications
| SKU | CS6036697 |
|---|---|
| MPN | HH311 |
