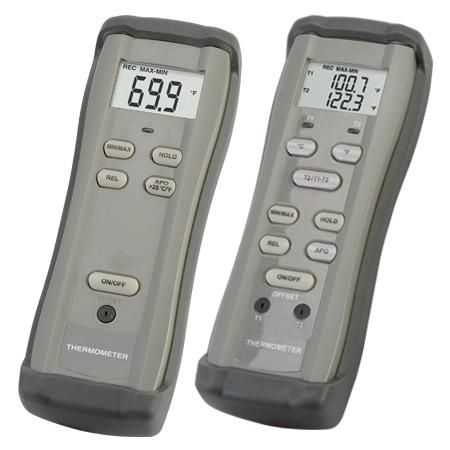

Omega HH12C
SKU: CS5801687MPN: HH12C
1 \& 2 Channel High Accuracy 0.1% Type K Thermocouple Meter
Product Details
- Highly Accurate Thermometer with 0.1% Basic Accuracy
- Thermocouple Offset Adjust
- HH12C: Dual Input T1, T2, T1-T2
- Rugged Protective Holster, Included
Attributes
| Width | 65 mm |
| Height | 185 mm |
| Length | 35 mm |
| Weight | 240 g |
| Series ID | HH11C-HH12C |
| Auto range | 0.1°C |
| Weight Note | 240 g (8.5 oz), including batteries |
| Display Type | 4.5 Digit LCD |
| Sampling Rate | 3 Hz (3 updates/second) |
| Supply Voltage | 9 Vdc |
| Country of Origin | Taiwan |
| Display Type Note | 4 1 ⁄2 digit liquid crystal display (LCD) with a maximum reading of 19999 |
| Thermocouple Type | K |
| Number of Channels | 2 |
| Sampling Rate Note | 3/sec for readings and TREND indicators |
| Temperature Accuracy | ± 0.1% rdg + 0.5 °C |
| Electrical Connection | Miniature Male Thermocouple Connector |
| Temperature Resolution | 0.1 °C |
| Temperature Sensor Type | Thermocouple |
| Storage Temperature Note | -20 to 60°C (-4 to140°F), 0 to 80% RH with battery removed from meter |
| Storage Temperature, Max | 60 °C |
| Storage Temperature, Min | -20 °C |
| Temperature Accuracy Note | ± (0.1% rdg + 0.5°C) on -50 to 1372°C (-58 to 2502°F); ± (0.1% rdg + 2°C) on -50 to -200°C (-58 to -328°F) Type K (Chromic-Alum) |
| Operating Temperature Note | 1 to 50°C (32 to 122°F) at <80% RH |
| Operating Temperature, Max | 50 °C |
| Operating Temperature, Min | 0 °C |
| Measuring Temperature Range, Max | 1372 °C |
| Measuring Temperature Range, Min | -200 °C |
Specifications
| SKU | CS5801687 |
|---|---|
| MPN | HH12C |
