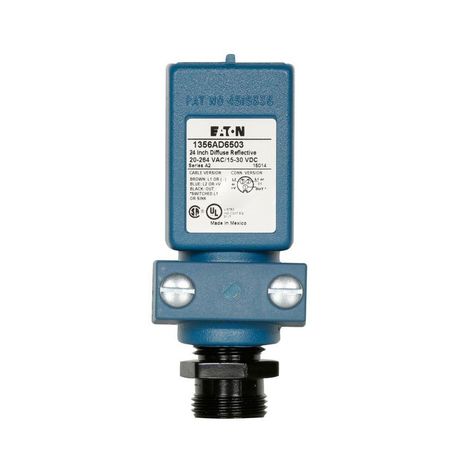

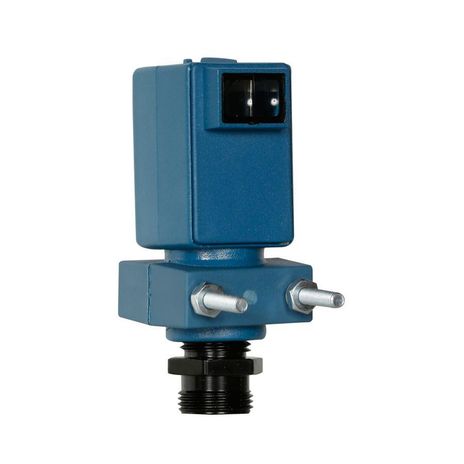

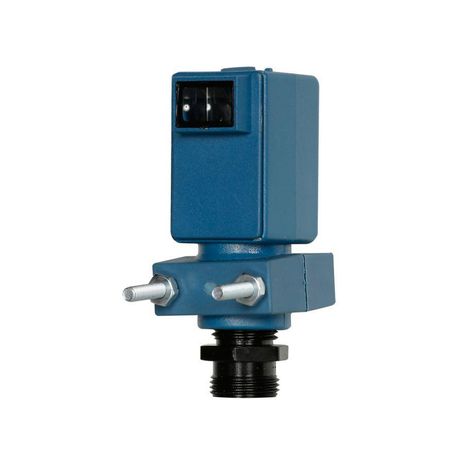

Eaton 1356AD6503
SKU: CS5018978MPN: 1356AD6503UPC/EAN: 782114106914
Eaton 55 series photoelectric sensor
Contact us for pricing and availability
Product Details
Eaton 55 Series Photoelectric Sensor, Sensor distance: 24 In., Body: Noryl, 300 mA AC/DC at 20-264Vac/15-30Vdc, 3 Pin Mini Connector, 20–264 Vac 50/60 Hz or 15–30 Vdc (NPN) input, Latching short circuit, Diffuse Reflective
Attributes
| Connection | 3-pin mini connector |
| Contact Configuration | AC: L1 switched DC: NPN open collector |
| Contact Rating | 300 mA AC/DC at 20-264Vac/15-30Vdc |
| Enclosure Material | Lens: nylon Body: noryl |
| Environmental Rating | NEMA 1, NEMA 3, NEMA 4, NEMA 6, NEMA 12, NEMA 13 |
| Input Voltage | 20-264 Vac at 50/60 Hz, 15-30 Vdc (NPN) |
| Led Indicator | Output status: red |
| Maximum Ac Current | 300 mA |
| Maximum Dc Current | 300 mA |
| Operating Mode | Diffuse reflective |
| Operating Temperature Max | 158 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -40 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Latching short circuit |
| Sensor Type | Diffuse reflective |
| Switch Type | Photoelectric |
| Type | Photoelectric Sensor; 55 Series |
Specifications
| SKU | CS5018978 |
|---|---|
| MPN | 1356AD6503 |
| UPC/EAN | 782114106914 |
