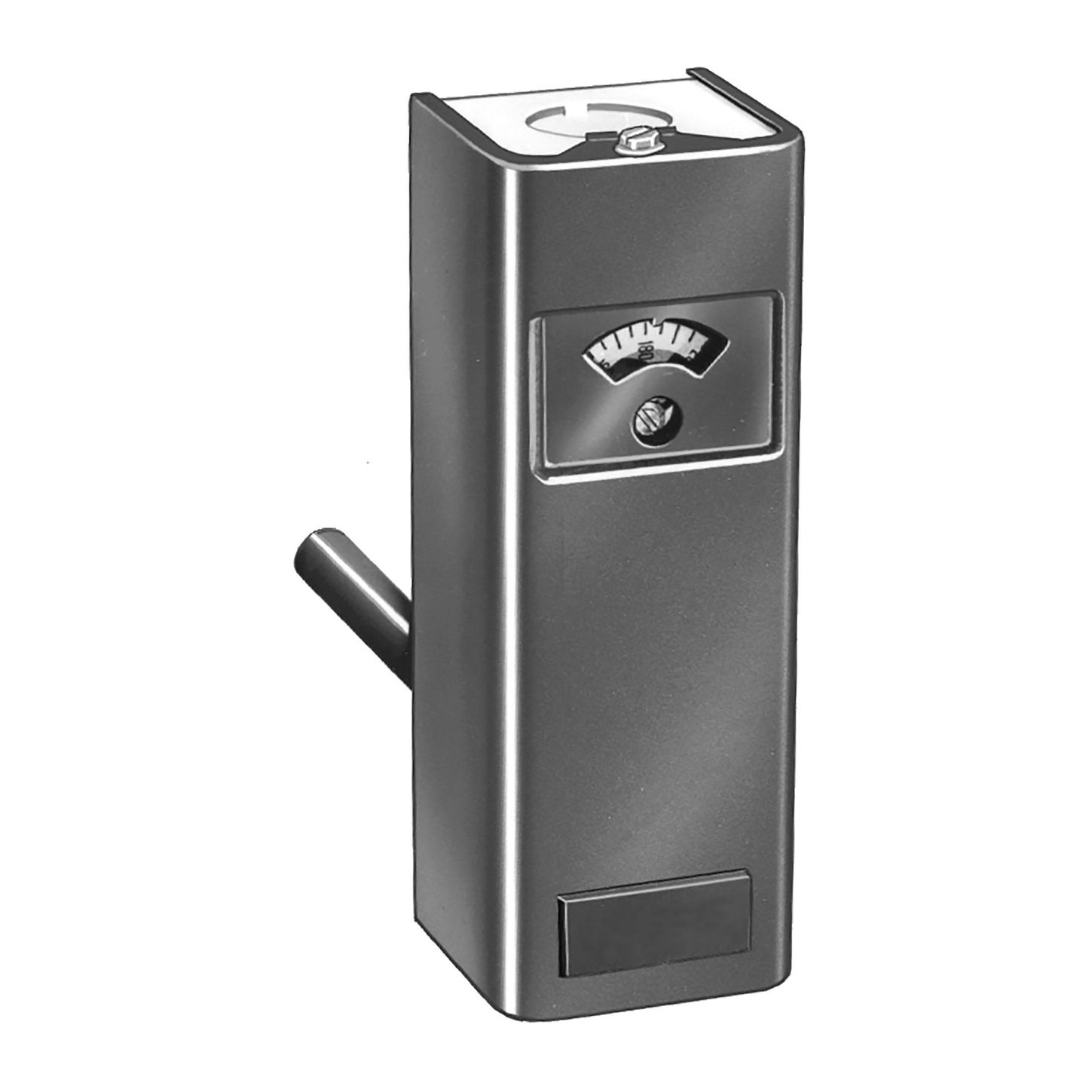

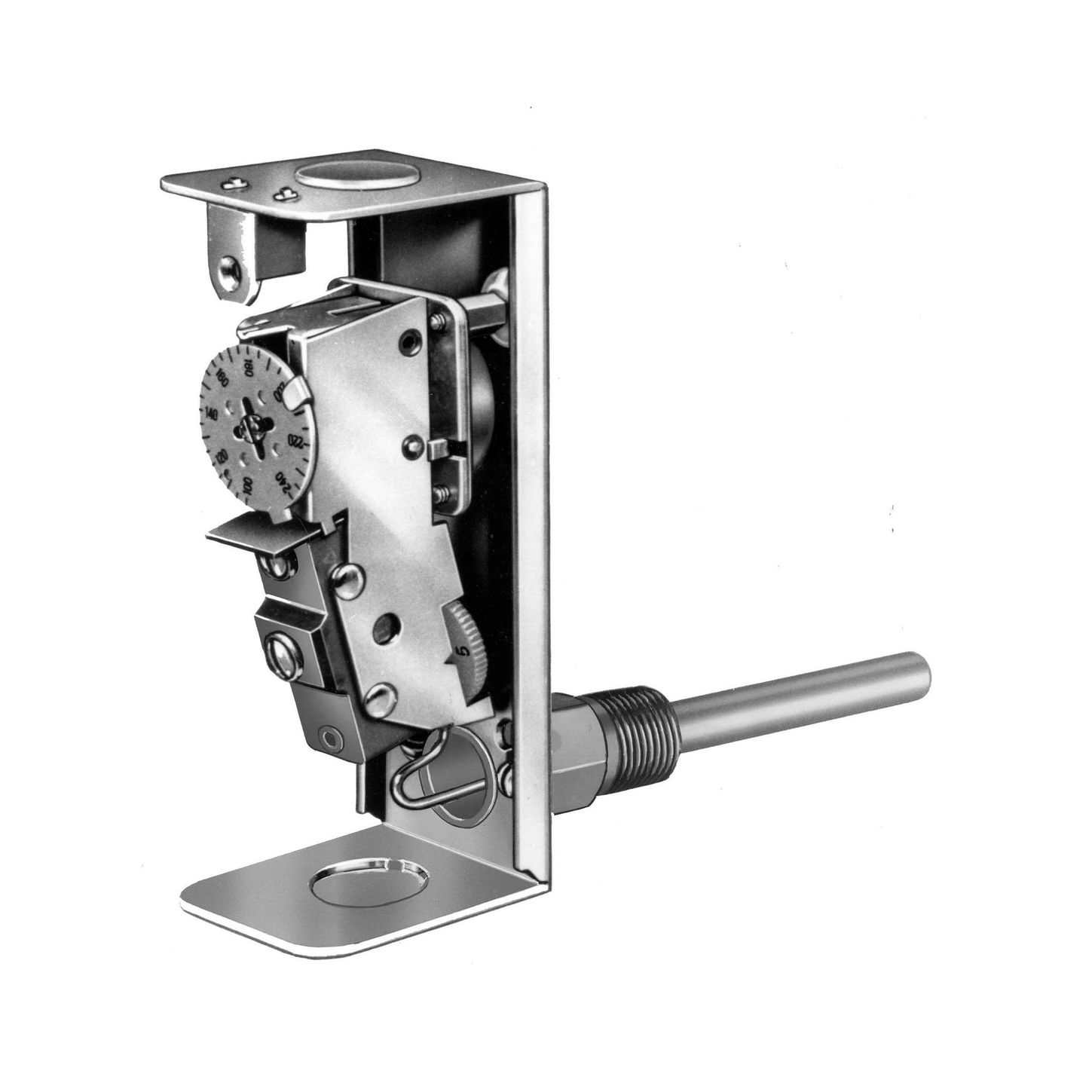

Resideo L4006B1163

Circulator Aquastat Controller, Range 100-240 °F, adjustable differential, SPST, contacts break on temperature rise

Immersion Controller Boiler-Mounted High or Low Limit and Circulator Delay Height (In.) 8 ⅝ in Depth (In.) 2 ⅛ in Width (In.) 2 in Temp Range 100 Degrees to 240 Degrees F Differential 5 Degrees to 30 Degrees F Adj. 8 A 5.1 A 48 A 30.6 A 025 A @ 025 To 12 Vdc Horizontal or Vertical Circulator Requires 3 in Insulation Includes 3 in (76 Mm) Insulation ⅜ X 2 ⅞ - SPST 3 in - UL CSA
