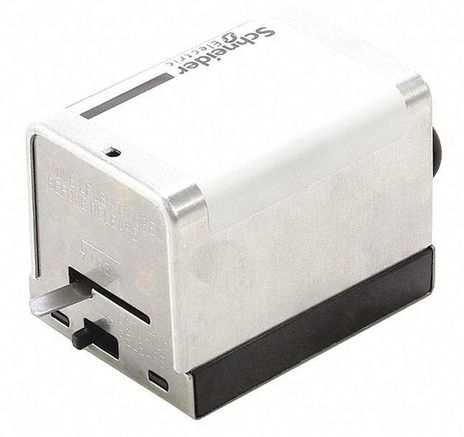

Schneider Electric AG13A020

Name: Schneider Electric AG13A020
Brand: Schneider Electric
SKU: CS977349
Price: 63.01 USD
Availability: InStock

SKU: CS977349MPN: AG13A020UPC/EAN: 711426601831

Act (AG13A020): Electric, 2 Position, Spring Return, 24 VAC, App, Rotary, N1, Erie PopTop™

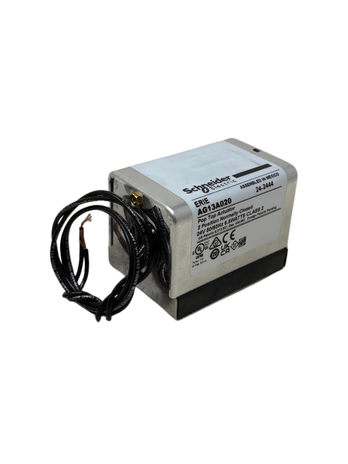

Schneider Electric AG13A020 Erie PopTop Actuator (1)

$63.01

Unit

102 in stock

Quantity

remove

add

Documents

Product Details

Schneider Electric (AG13A020) Erie PopTop™ Series Valve Spring Return Actuator

Upgrade your HVAC zone valve system with the reliable and easy-to-install Schneider Electric AG13A02A Erie PopTop actuator. This 24VAC, 2-position (on/off) spring return actuator is designed to provide efficient and dependable control for heating and cooling applications, including zone valves for fan coils, baseboards, and air handlers.

Actuator Type: Electric
Control Signal: 2-Position (On/Off)
Loss of Power Type: Spring Return
Power Input Voltage: 24 VAC
Leads and Connections: 18 in Appliance
Mechanical Movement: Rotary
Protection Rating: NEMA 1
Product Line: Schneider Electric
Product Range: Erie PopTop™
Product Series: AG
Actuator Use: Zone Valves

Attributes

Us Rated Supply Voltage	24 V AC
Actuator	rotary
Ambient Air Temperature For Operation	0-93.3 °C
Ambient Air Temperature For Storage	-40-71 °C
Control Type	automatic reset
Ip Degree Of Protection	IP10
Motor Type	AC synchronous servo motor
Nema Degree Of Protection	NEMA 1
Power Consumption In Va	7.5 VA AC
Product Destination	zone valves
Product Or Component Type	actuator
Relative Humidity	5-95 % non-condensing
Stroke Running Time	51 s
Switch Function	No
Targeted Region	North America.
Taxoclass Id	PTC_D54013_XXX
