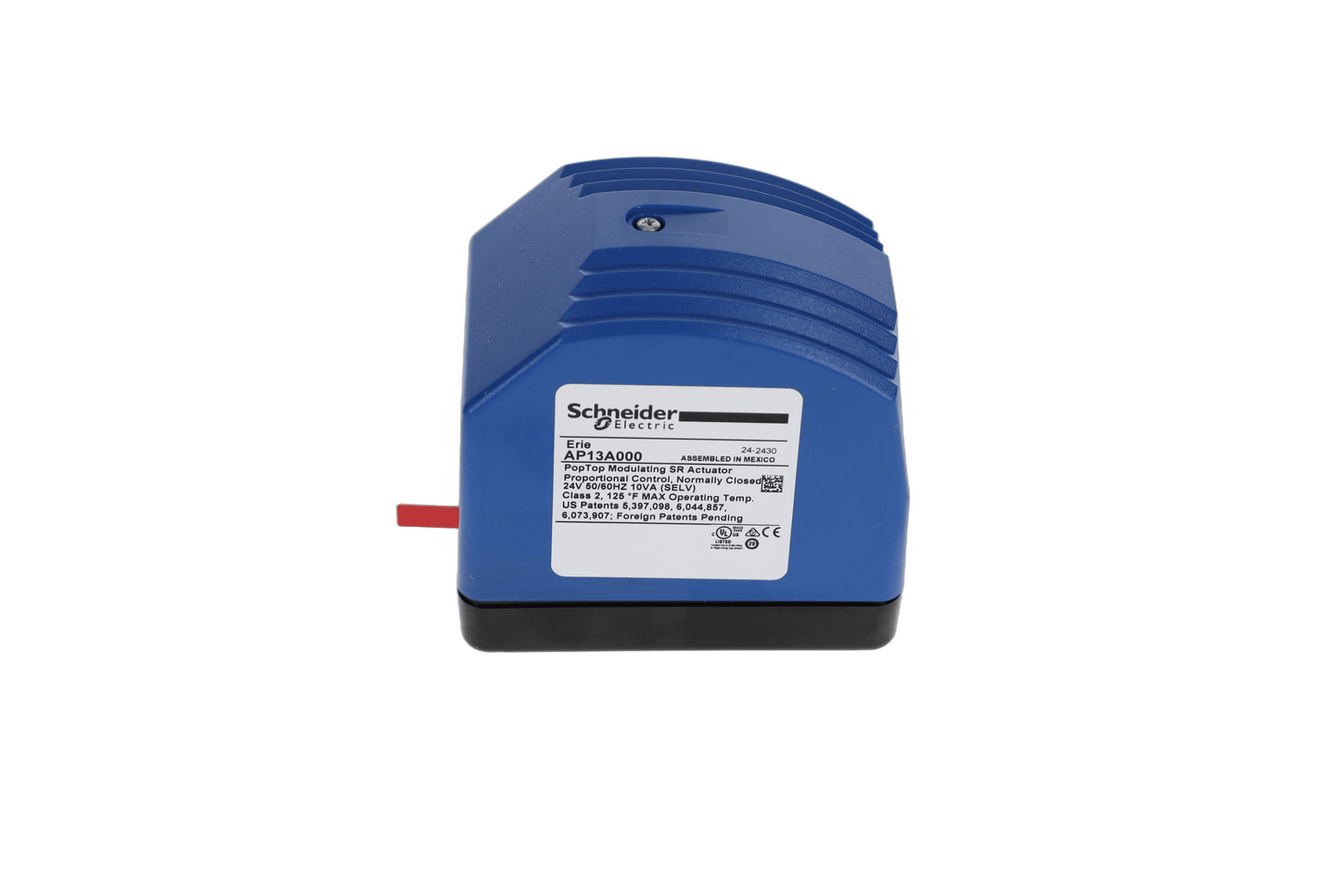

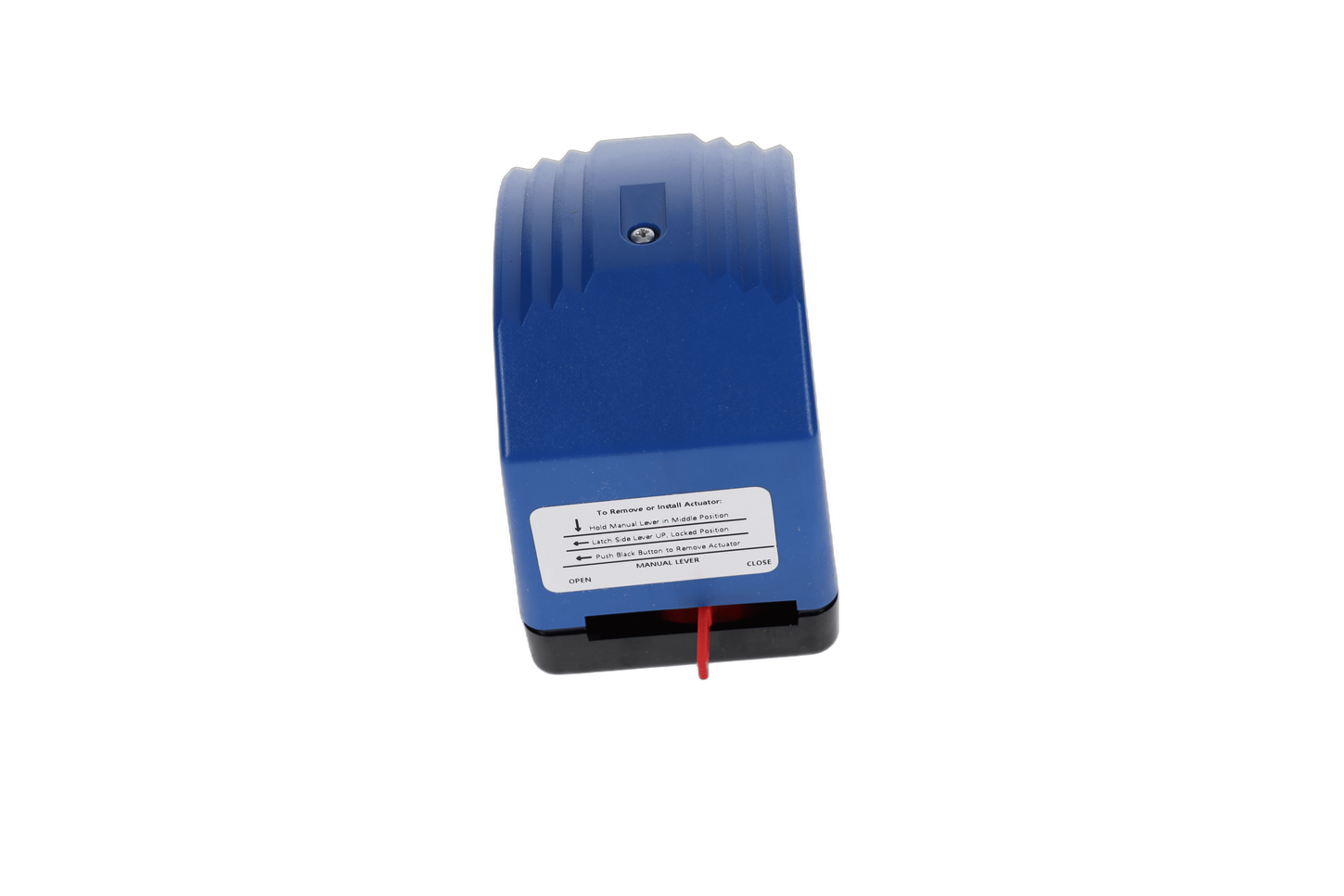

Schneider Electric AP13A000
SKU: CS436933MPN: AP13A000UPC/EAN: 711426604382
Erie, Zone Valve Modulating Actuator, PopTop, Proportional, 0-10 VDC/4-20mAdc, Spring Return Close, 24VAC, Terminal Block, NEMA 1
$207.73
Unit61 in stock
Product Details
Actuator: (AP13A000):
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 0 to 10 VDC, 0 to 5 VDC, 4 to 20 mAdc, 5 to 10 VDC
- Loss of Power Type: Spring Return
- Power Input Voltage: 24 VAC
- Leads and Connections: No Leads
- Mechanical Movement: Rotary
- Protection Rating: NEMA 1
- Product Line: Schneider Electric
- Product Range: Erie PopTop
- Product Series: AP
- Actuator Use: Zone Valves
Attributes
| Us Rated Supply Voltage | 24 V AC |
| Actuator | rotary |
| Ambient Air Temperature For Operation | 1.6-51.6 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Analogue Input Range | 0…10 V DC 4…20 mA DC |
| Control Type | automatic reset |
| Ip Degree Of Protection | IP10 |
| Material | polymer: housing |
| Motor Type | AC synchronous servo motor |
| Nema Degree Of Protection | NEMA 1 |
| Power Consumption In Va | 1.7 VA AC |
| Product Destination | zone valves |
| Product Or Component Type | actuator |
| Relative Humidity | 5-95 % non-condensing |
| Switch Function | No |
| Targeted Region | North America. |
| Taxoclass Id | PTC_D54013_XXX |
Specifications
| SKU | CS436933 |
|---|---|
| MPN | AP13A000 |
| UPC/EAN | 711426604382 |
You may also like
Schneider Electric M313A00
$142.10Unit

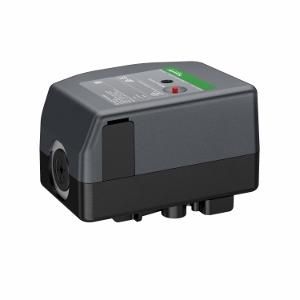

Schneider Electric M333A00
