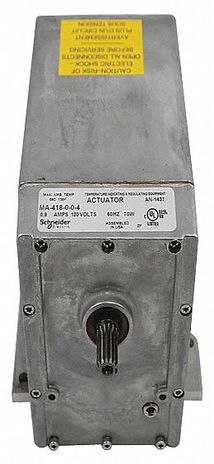

Schneider Electric MA-418

Name: Schneider Electric MA-418
Brand: Schneider Electric
SKU: CS382448
Price: 752.70 USD
Availability: InStock

SKU: CS382448MPN: MA-418UPC/EAN: 711426310214

Act (MA-418): Elec, 2Pos, SR, 120 VAC, TB, 60 in-lb, Rotary, N1, Erie

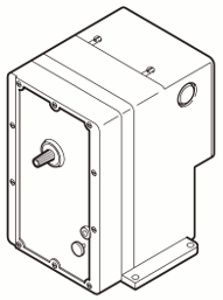

Schneider Electric MA-405, MA-418, MA-419

$752.70

Unit

74 in stock

Quantity

remove

add

Documents

MA-418 Actuator Data Sheet

Product Details

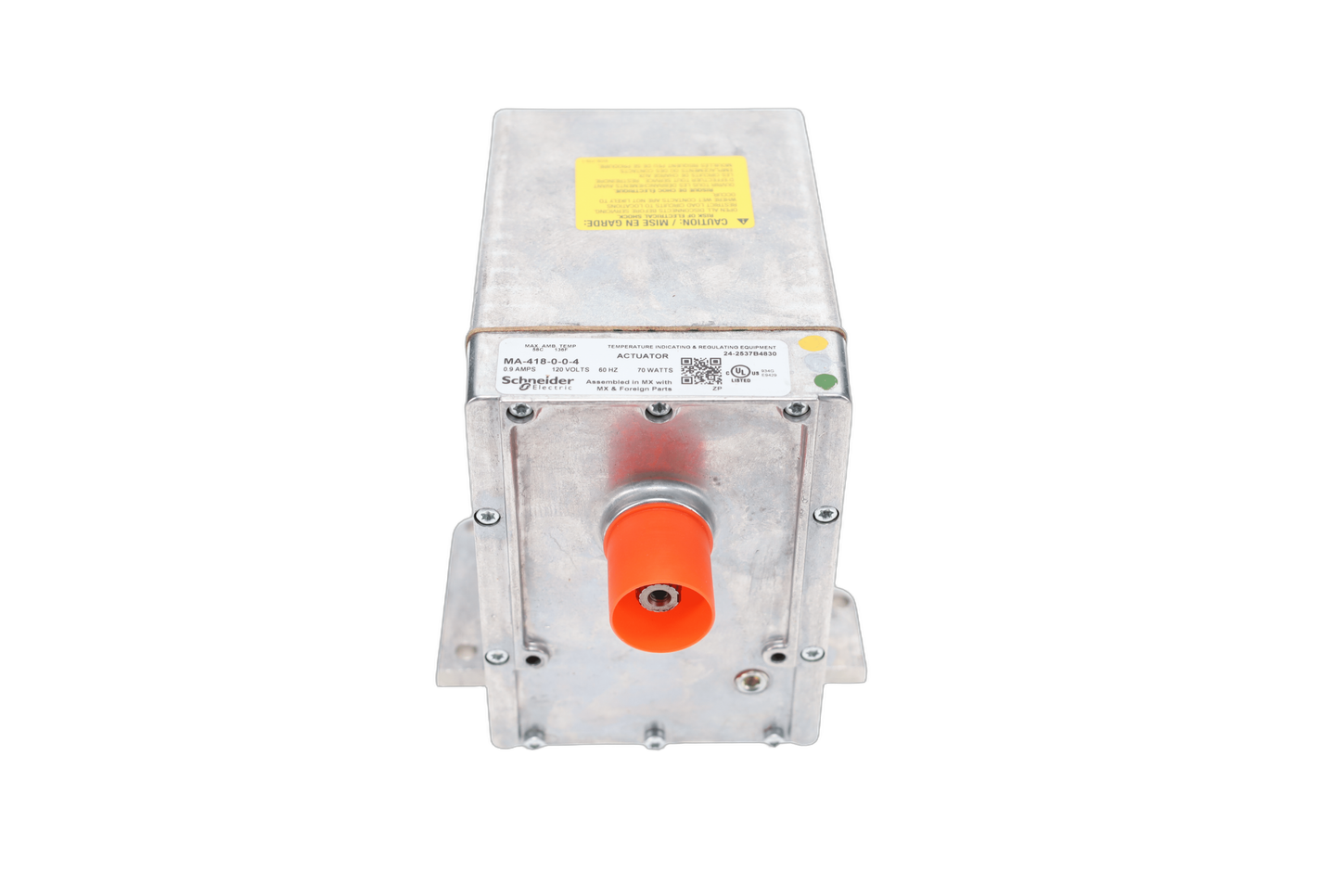

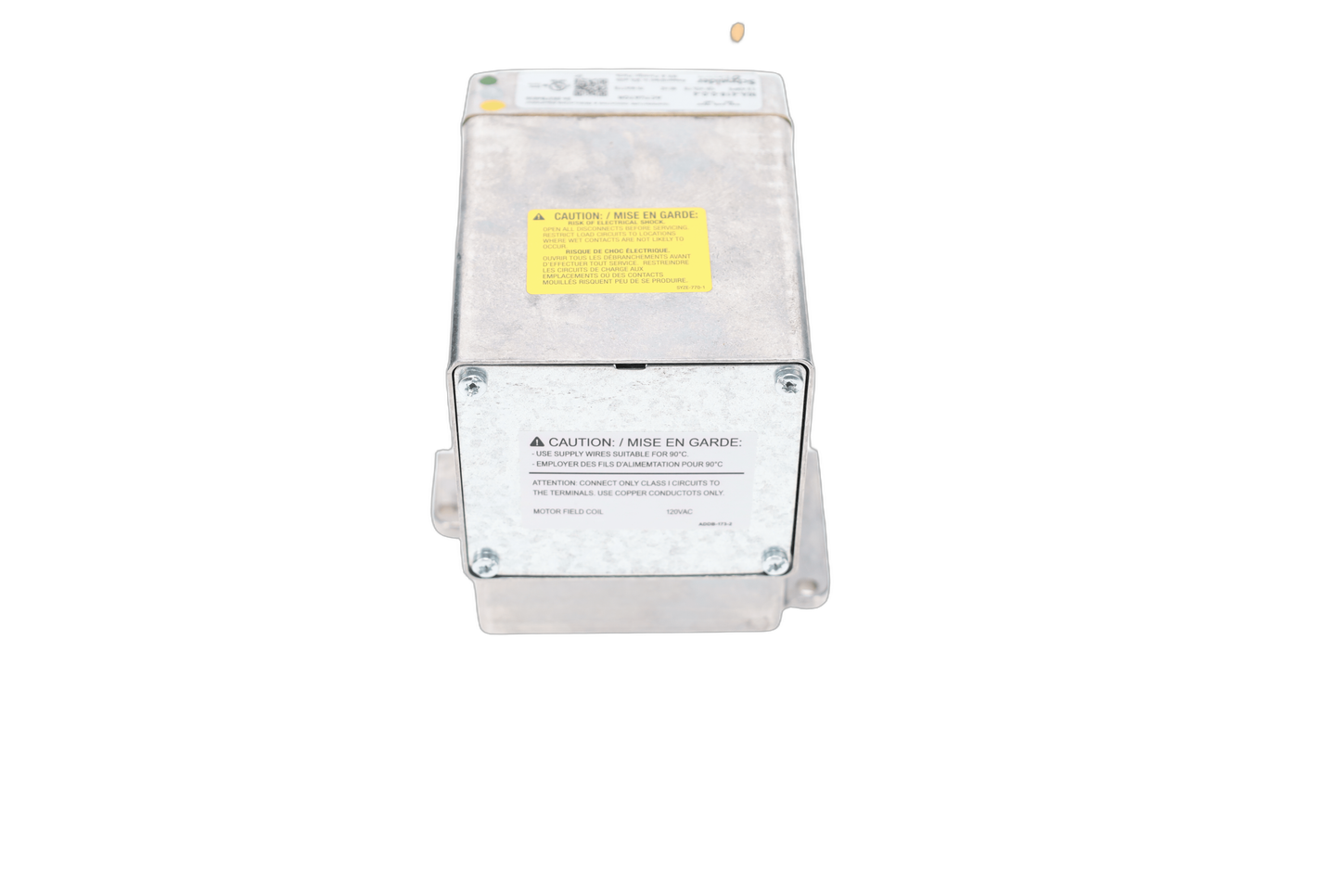

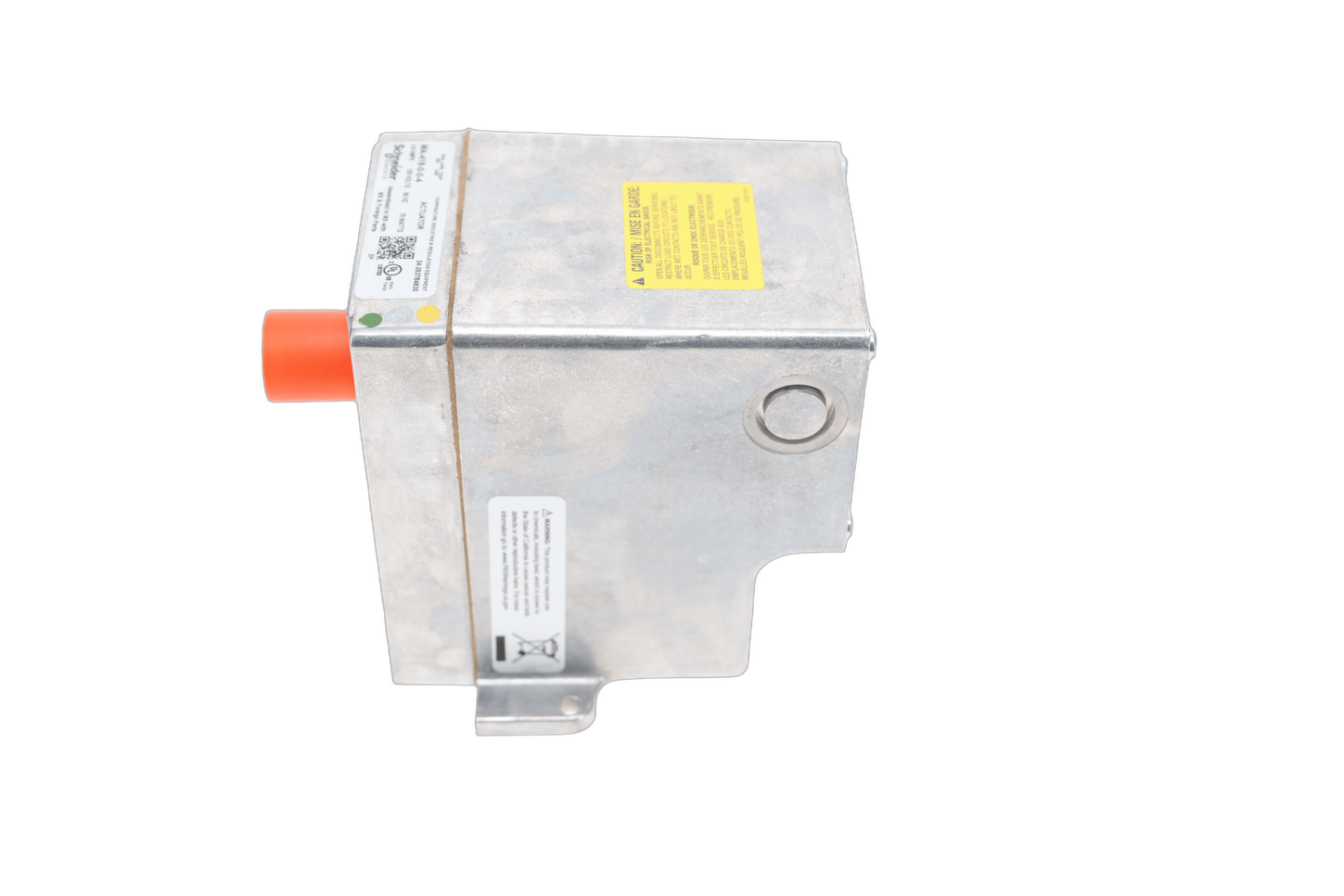

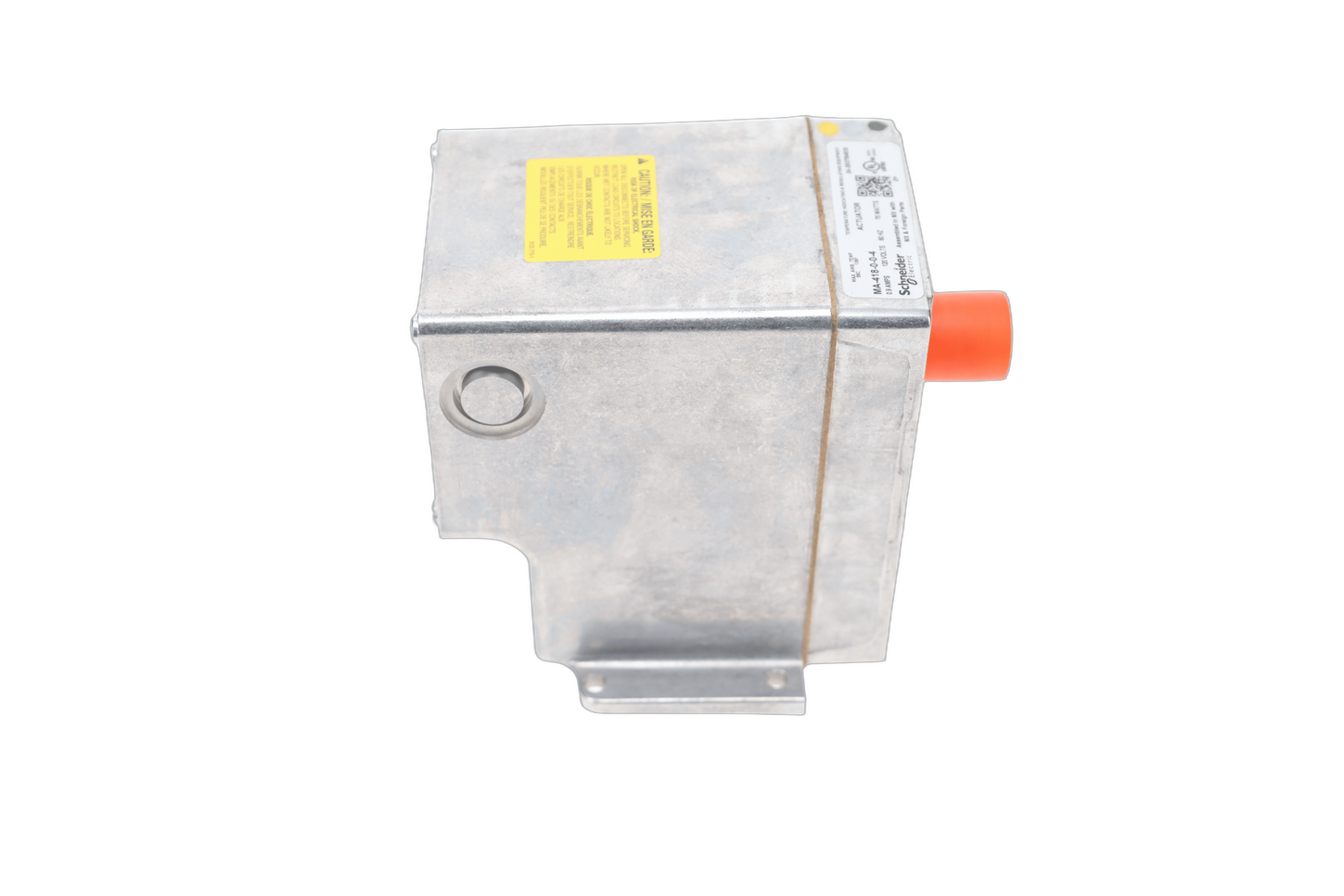

Schneider Electric Barber-Colman (MA-418) Electric Damper and Valve Actuator

Ensure reliable two-position control in your HVAC systems and industrial applications with the Schneider Electric Barber-Colman MA-418 electric actuator. This robust actuator provides dependable on/off control for dampers, valves, and other equipment requiring a spring return to their normal position upon power interruption

Actuator Type: Electric
Control Signal: 2-Position (On/Off)
Loss of Power Type: Spring Return
Power Input Voltage: 120 VAC
Leads and Connections: Terminal Block
Torque: 60 in-lb
Mechanical Movement: Rotary
Protection Rating: NEMA 1
Product Line: Schneider Electric
Product Range: Gear Train
Product Series: MAx-4xx
Actuator Use: Dampers, Globe Valves

Attributes

Us Rated Supply Voltage	120 V AC
Actuator	rotary
Actuator Rotation	180 °
Ambient Air Temperature For Operation	-40-57.7 °C
Ambient Air Temperature For Storage	-40-57.7 °C
Control Type	manual override with 5/32 allen wrench
Ip Degree Of Protection	IP10
Material	die cast aluminium: housing
Motor Type	oil immersed motor
Power Consumption In Va	108 VA AC
Product Destination	dampers globe valve
Product Or Component Type	actuator
Relative Humidity	5-95 % non-condensing
Switch Function	No
Targeted Region	North America.
Taxoclass Id	PTC_D54012_XXX
Tightening Torque	60 lb.in# #7 N.m
