Schneider Electric AG13B020

Name: Schneider Electric AG13B020
Brand: Schneider Electric
SKU: CS479821
Price: 63.01 USD
Availability: InStock

SKU: CS479821MPN: AG13B020UPC/EAN: 711426602043

Actuator (AG13B020): Electric, 2 Position, SR, 110-120 VAC, App, Rotary, N1, Erie PopTop

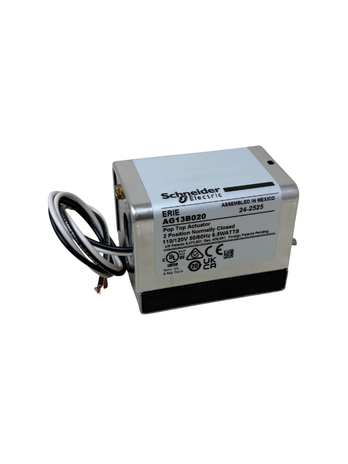

Schneider Electric AG13B020 Erie PopTop Actuator

$63.01

Unit

217 in stock

Quantity

remove

add

Documents

Product Details

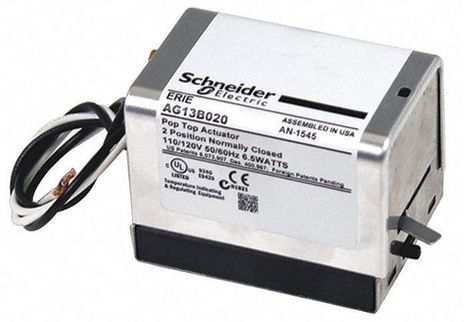

Schneider Electric AG13B020 Erie PopTop 120VAC Spring Return Actuator (Normally Closed)

Ensure reliable and energy-efficient control of your HVAC zone valves with the Schneider Electric AG13B020 Erie PopTop actuator. This 120VAC, 2-position (on/off) spring return actuator is designed to handle chilled water, hot water, and low-pressure steam applications, making it ideal for residential and light commercial HVAC systems, including those utilizing fan coils, baseboards, or air handlers.

Actuator Type: Electric
Control Signal: 2-Position (On/Off)
Loss of Power Type: Spring Return
Power Input Voltage: 110 VAC, 115 VAC, 120 VAC
Leads and Connections: 18 in Appliance
Mechanical Movement: Rotary
Protection Rating: NEMA 1
Product Line: Schneider Electric
Product Range: Erie PopTop
Product Series: AG
Actuator Use: Zone Valves

Attributes

Us Rated Supply Voltage	110…120 V AC
Actuator	rotary
Ambient Air Temperature For Operation	0-93.3 °C
Ambient Air Temperature For Storage	-40-71 °C
Control Type	automatic reset
Ip Degree Of Protection	IP10
Motor Type	AC synchronous servo motor
Nema Degree Of Protection	NEMA 1
Power Consumption In Va	7.5 VA AC
Product Destination	zone valves
Product Or Component Type	actuator
Relative Humidity	5-95 % non-condensing
Stroke Running Time	24 s
Switch Function	No
Targeted Region	North America.
Taxoclass Id	PTC_D54013_XXX
