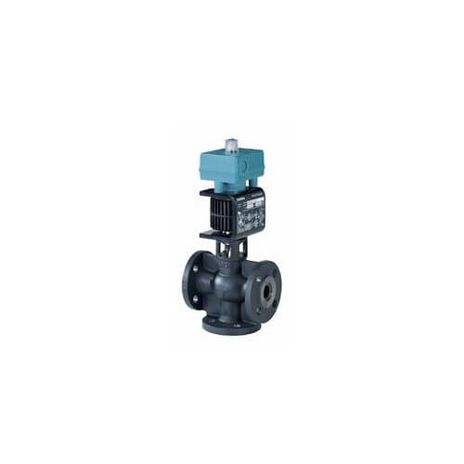

Siemens MXG461.15-1.5U
SKU: CS815266MPN: MXG461.15-1.5U
Magnetic, ½” Valve, 2-way or floating 1.8 Cv, 0-10V control, w/ NPT unions
$1,283.96
UnitAvailable on backorder
Product Details
This MX Control Valve with Electronic Modules is designed for 0 to 10V control of chilled water and low-pressure hot water, especially in HVAC systems. The valve can be configured for straight-through or 3-Way applications and has ½” line size, 1.8 Cv and 72 psi close-off. This valve has 1000:1 resolution and a positioning time is ≤ 1 second, manual override, auto calibration, dip switch selectable signal input and flow characteristic, and built-in position feedback. The valve includes NPT union fittings and blanking flange. UL and C-UL listed.
Attributes
| Control Signal | 0…10 Vdc;2…10 V;4…20 mA |
| End Connection | NPT union fittings and blanking flange |
| Fail Safe | Yes |
| Flow Characteristic | Linear or Equal Percentage |
| Flow Coefficient Cv | 1.7000000476837 |
| Max Differential Pressure Liquid | 44 psi |
| Max Inlet Pressure Absolute Liquid | 44 psi |
| Medium | Water |
| Medium Temperature | 34…266 ºF |
| Medium Temperature F Max | 266 ºF |
| Medium Temperature F Min | 34 ºF |
| Port Configuration | 2 & 3 Way |
| Supply Voltage | 24 VAC |
| Trim Material | Stainless Steel |
| Valve Body Style | Stroke-Integrated-Magnetic |
| Valve Size | 0.5 in |
Specifications
| SKU | CS815266 |
|---|---|
| MPN | MXG461.15-1.5U |
You may also like
Siemens MXG461.15-0.6U
$1,283.96Unit
Siemens MXG461.15-3.0U
$1,283.96Unit

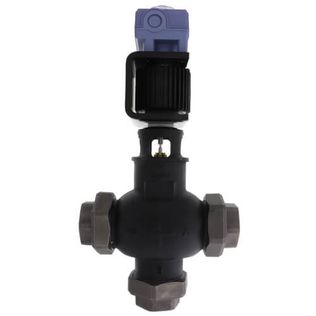

Siemens MXG461.50-30U
$1,747.71Unit
Siemens MXG461.40-20U
$1,439.01UnitSiemens MXG461.20-5.0U
$1,332.24UnitSiemens MXG461.25-8.0U
$1,444.16UnitSiemens MXG461.32-12U
$1,507.56Unit
Siemens MXG461B15-1.5
$2,294.50UnitSiemens MXG461B15-3
$2,294.50Unit

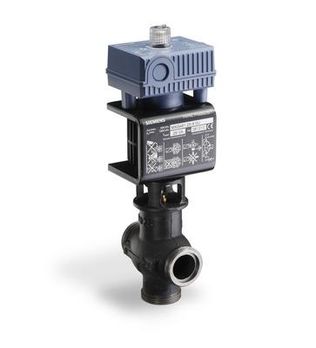

Siemens MXG461B15-0.6
