Siemens MXG461.32-12U
SKU: CS665259MPN: MXG461.32-12U
Magnetic 1-¼” Valve, 2-way or mixing, 14 Cv, 0 to 10V control, w/ NPT unions
$1,507.56
Unit1 Unit Available at Factory - Ships Same/Next Business Day
Product Details
This MX Control Valve with Electronic Modules is designed for 0 to 10V control of chilled water and low-pressure hot water, especially in HVAC systems. This 1-¼” valve can be configured for straight-through or mixing applications and has a 14.0 Cv and 43 psi close-off. It has 1000:1 resolution and a positioning time is ≤ 1 second, manual override, auto calibration, dip switch selectable signal input and flow characteristic, and built-in position feedback. The valve includes NPT union fittings and blanking flange. UL and C-UL listed.
Attributes
| Control Signal | 0…10 Vdc;2…10 V;4…20 mA |
| End Connection | NPT union fittings and blanking flange |
| Fail Safe | Yes |
| Flow Characteristic | Linear or Equal Percentage |
| Flow Coefficient Cv | 14.0000 |
| Max Differential Pressure Liquid | 44 psi |
| Max Inlet Pressure Absolute Liquid | 44 psi |
| Medium | Water |
| Medium Temperature | 34…266 ºF |
| Medium Temperature F Max | 266 ºF |
| Medium Temperature F Min | 34 ºF |
| Port Configuration | 2 & 3 Way |
| Supply Voltage | 24 VAC |
| Trim Material | Stainless Steel |
| Valve Body Style | Stroke-Integrated-Magnetic |
| Valve Size | 1.25 in |
Specifications
| SKU | CS665259 |
|---|---|
| MPN | MXG461.32-12U |
You may also like
Siemens MXG461.20-5.0U
$1,332.24UnitSiemens MXG461.25-8.0U
$1,444.16Unit
Siemens MXG461.50-30U
$1,747.71UnitSiemens MXG461.40-20U
$1,439.01Unit
Siemens MXG461.15-0.6U
$1,283.96UnitSiemens MXG461.15-1.5U
$1,283.96Unit
Siemens MXG461.15-3.0U
$1,283.96UnitSiemens MXF461.65-50U
$2,288.80Unit
Siemens MXG461B32-12
$2,554.52Unit
Siemens MVF461H15-3
$2,324.87Unit
Siemens MXG461B25-8
$2,447.03Unit

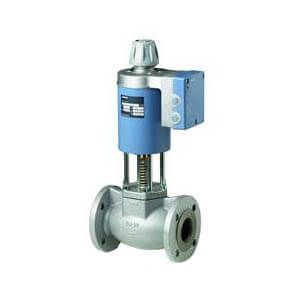

Siemens MVF461H32-12
