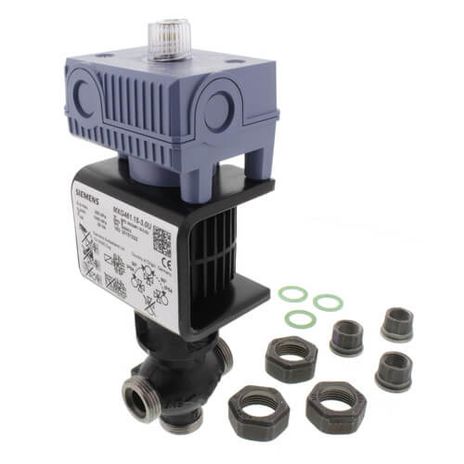

Siemens MXG461.15-3.0U

Magnetic, ½” Valve, 2-way or floating, 3.5 Cv, 0-10V control, w/ NPT unions

This MX Control Valve with Electronic Modules is designed for 0 to 10V control of chilled water and low-pressure hot water, especially in HVAC systems. This ½” valve can be configured for straight-through or floating applications and has a 3.5 Cv and 72 psi close-off. It has 1000:1 resolution and a positioning time is ≤ 1 second, manual override, auto calibration, dip switch selectable signal input and flow characteristic, and built-in position feedback. The valve includes NPT union fittings and blanking flange. UL and C-UL listed.
