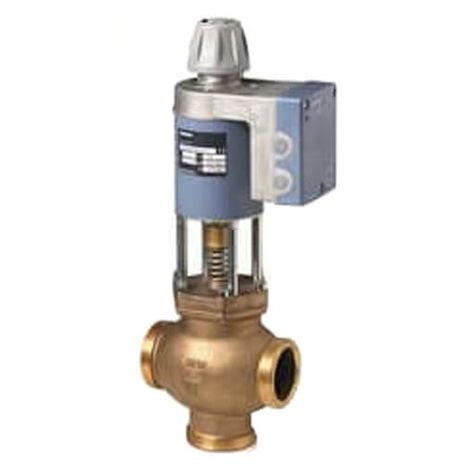

Siemens MXG461B50-30

Name: Siemens MXG461B50-30
Brand: Siemens Building Technologies
SKU: CS242303
Price: 3017.78 USD
Availability: OutOfStock

SKU: CS242303MPN: MXG461B50-30UPC/EAN: 7612914010353

Magnetic Valve, 2”, 2-way or floating, 35 Cv, 0 to 10V control, w/ fittings

Siemens Building Technologies MXG461B50-30

$3,017.78

Unit

Available on backorder

Quantity

remove

add

Product Details

This 2” MX Control Valve with Electronic Modules is designed for 0 to 10V control of domestic (potable) water, chilled water and hot water systems. The valve can be configured for straight-through or floating applications and has a 35 Cv and 87 psi close-off. This valve has 1000:1 resolution and a positioning time is ≤ 2 seconds, manual override, auto calibration, dip switch selectable signal input and flow characteristic, and built-in position feedback. The valve includes NPT union fittings and blanking flange. UL and cUL listed.

Attributes

Ambient Temperature Operation	-5…45 °C
Connecting Thread	G 2¾ B “
Control Signal	0…10Vdc / 2…10Vdc;4…20 mA
End Connection	NPT union fittings and blanking flange
Fail Safe	Yes
Flow Characteristic	Linear or Equal Percentage
Flow Coefficient Cv	35.0000
Leakage Rate	0.05 % of kvs
Material Inside Set	CrNi steel
Material Valve Body	Red brass CC491K, low-lead amount
Max Differential Pressure Liquid	87 psi
Max Inlet Pressure Absolute Liquid	87 psi
Medium	Water
Medium Temperature	-20…130 °C; -4…266 ºF
Medium Temperature F Max	266 ºF
Medium Temperature F Min	-4 ºF
Operating Range	DC 0…10 V;0…20 mA;DC 2…10 V;4…20 mA
Operating Voltage	24 VAC;20…30 VDC
Permissible Operating Pressure	1600 kPa
Port Configuration	2 & 3 Way
Position Feedback	DC 0…10 V;0…20 mA;DC 2…10 V;4…20 mA
Positioning Time	2 s
Power Consumption	65 VA
Spring Return Function	A-AB closed
Supply Voltage	24 VAC/DC
Trim Material	Stainless Steel
Valve Body Style	Stroke-Integrated-Magnetic
Valve Size	2 in
