Eaton E50SB6PC

Name: Eaton E50SB6PC
Brand: Eaton
SKU: CS4871969
Price: 704.40 USD
Availability: OutOfStock

SKU: CS4871969MPN: E50SB6PCUPC/EAN: 782113727851

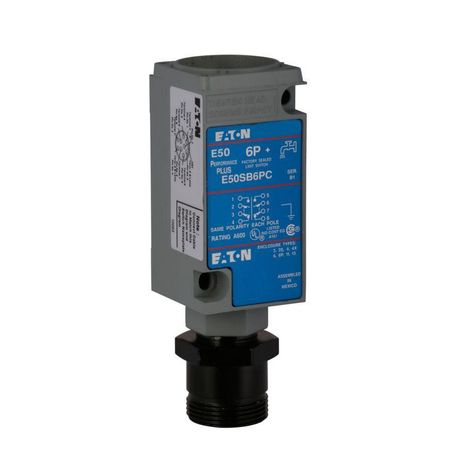

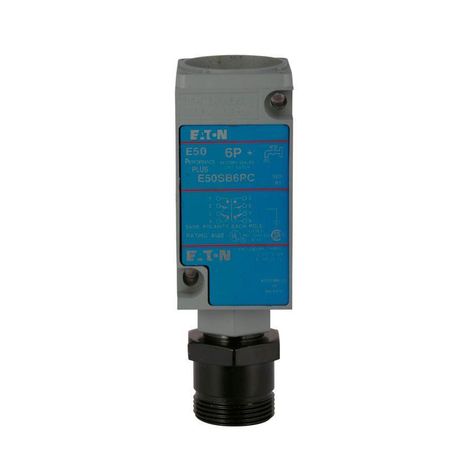

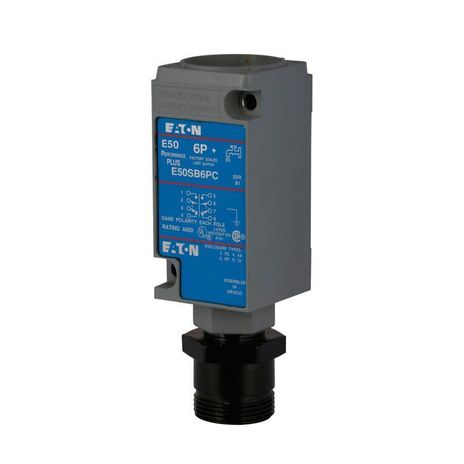

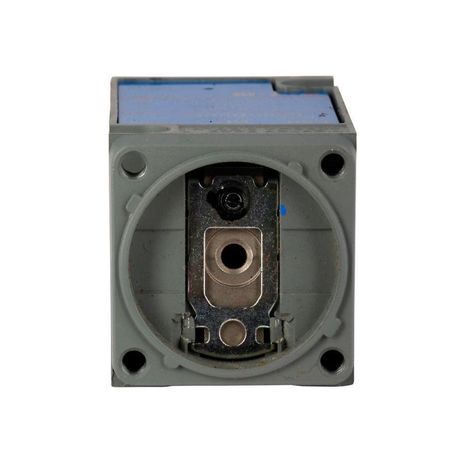

Eaton E50 NEMA heavy duty plug-in limit switch

Product Details

Eaton E50 NEMA heavy duty plug-in limit switch, Mini, 10A at 240 Vac, 1A at 250 Vdc, 2NO-2NC, Die cast zinc, NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67, IP69K, 10A, 1A, 5 pin, -40° to 250°F (-40° to 121°C), E50

Attributes

Connection	Mini
Contact Configuration	2 NO-2 NC
Contact Rating	10A at 240 Vac, 1A at 250 Vdc
Enclosure Material	Die cast zinc
Environmental Rating	NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67, IP69K
Maximum Ac Current	10 A
Maximum Dc Current	1 A
Number Of Pins	5.0000
Operating Temperature Max	250 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Series	E50
