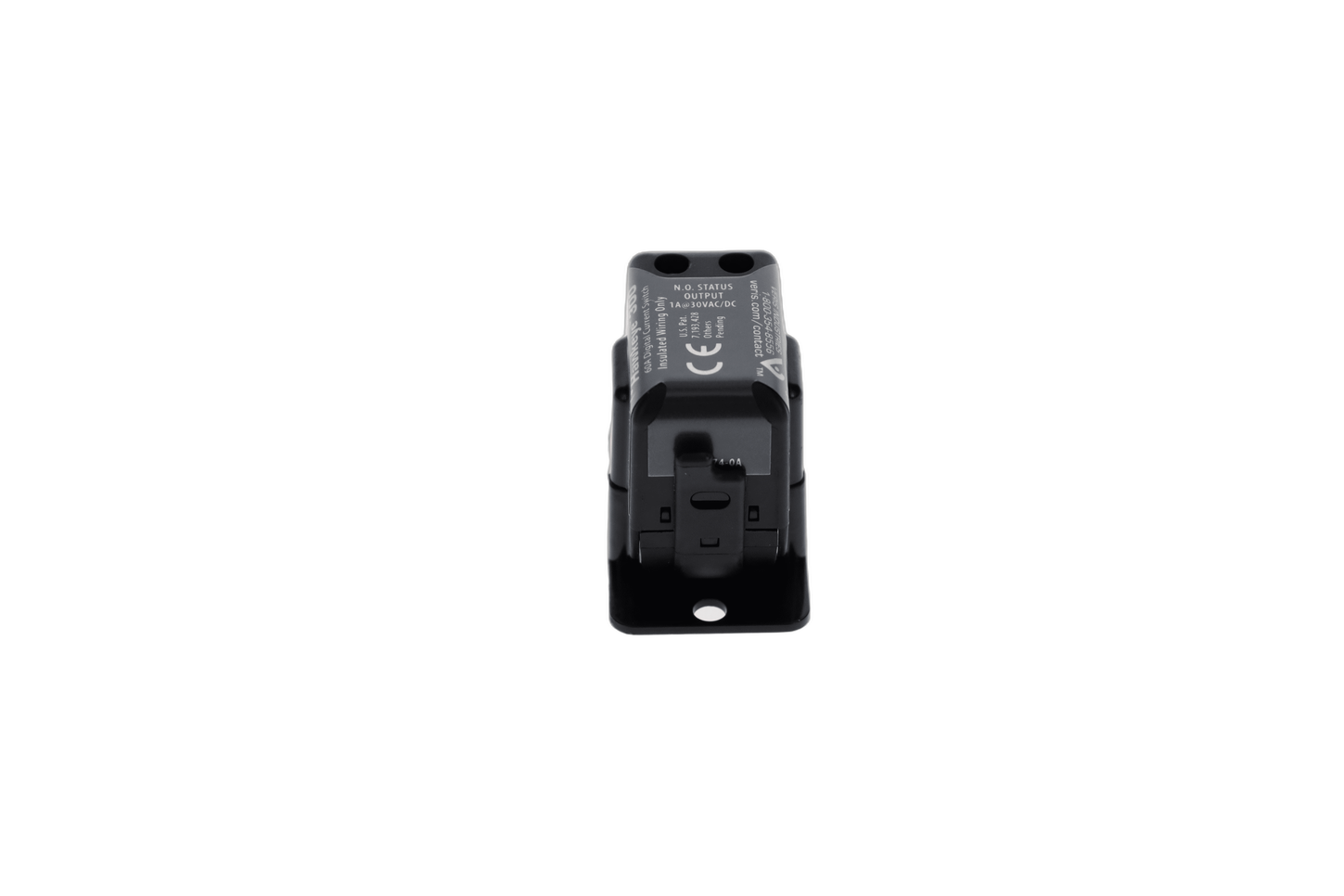

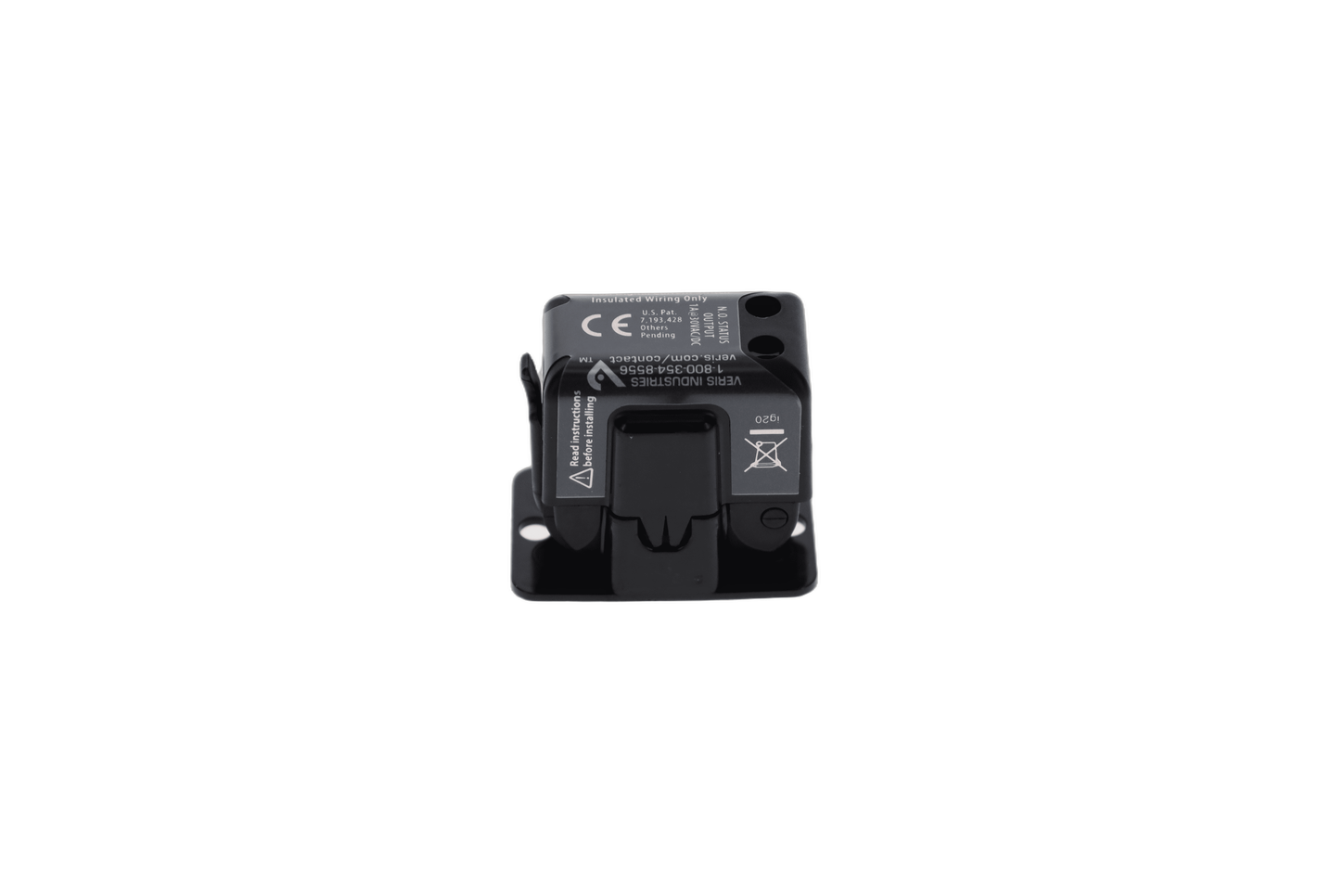

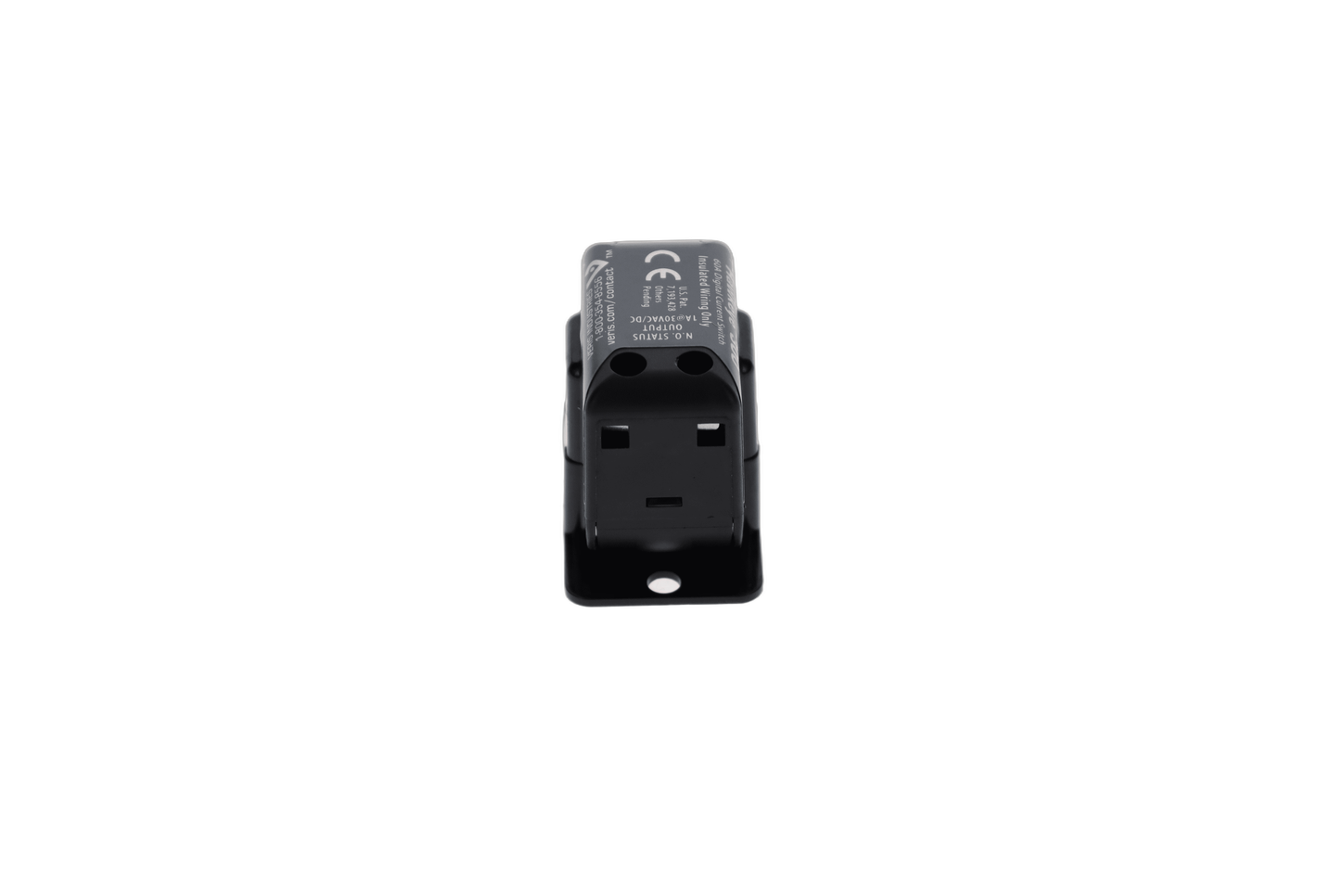

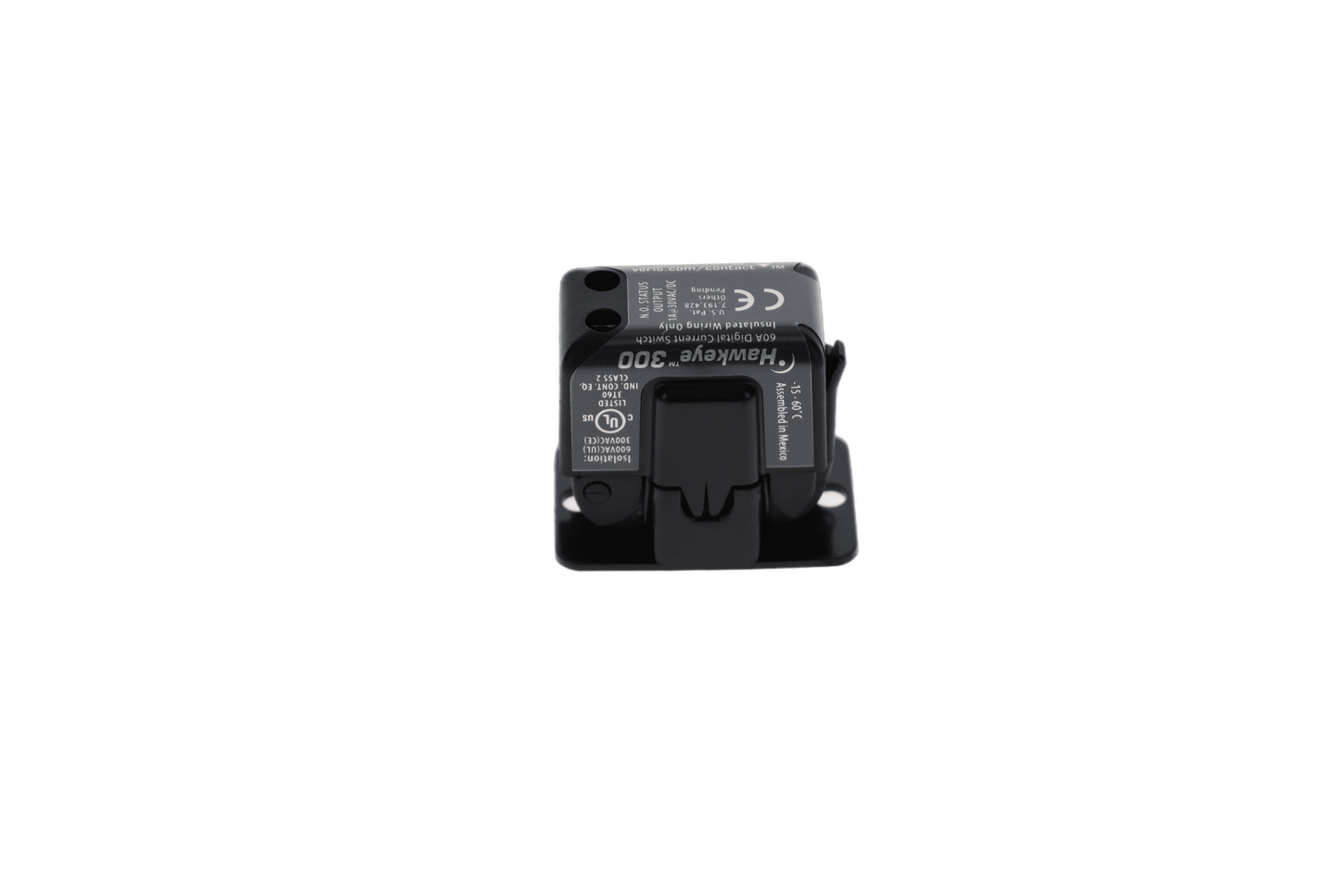

Veris H300

Current Switch, Split-Core, Micro, 0.15-60A, Normally Open Output

Current Switch:

• Fixed Trip Point* 0.15 - 60 Amperage Range* Normally Open 1.0A@30VAC/DC* 0.15A or less Fixed Trip Point* Micro Split-Core Housing* Sensor Power Induced from monitored current* Insulation Class 600VAC RMS (UL), 300VAC RMS (CE)* Frequency Range 50/60 Hz* Temperature Range -15 deg. to 60 deg. C (5 deg. to 140 deg. F)* Humidity Range 10-90% RH, non-condensing* Terminal Block Maximum Wire Size 14 AWG* Terminal Block Torque (nominal) 4 in-lbs* Agency Approvals UL 508 open device listing CE:EN61010-1:2001-02, CAT III, deg. 2, basic insulation
