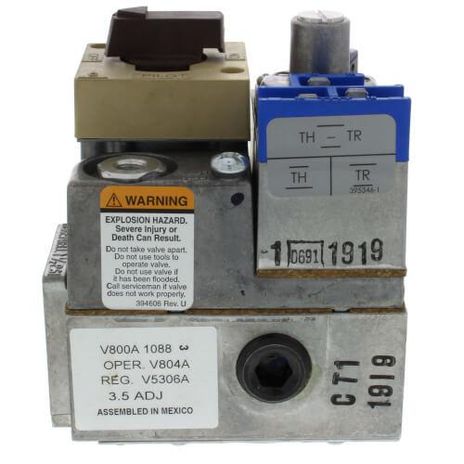

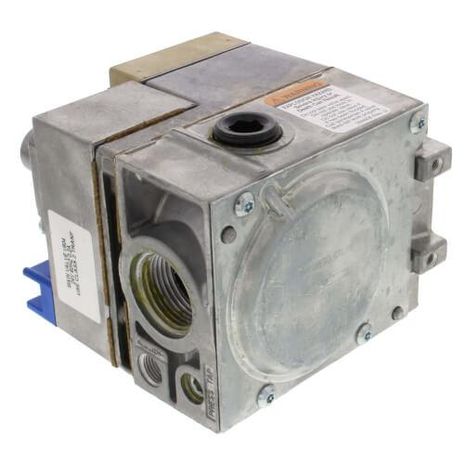

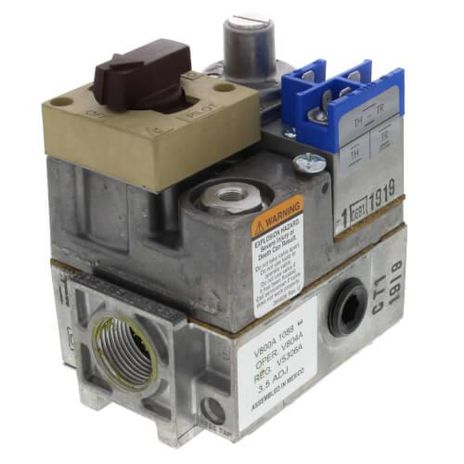

Resideo V800A1088

STANDING PILOT GAS VALVE. STANDARD OPENING. ¾” X ¾” WITH ½” SIDE OUTLETS, REG SET AT 3.5 IN WC. INCLUDES CONVERSION KIT, TWO ¾ X ½ REDUCE…

Used on gas fired standing pilot appliances with 30 mV thermocouple. These gas controls include a manual gas valve, safety shutoff, single millivoltage automatic operator, pressure regulator, pilot gas filter and flow adjustment, pressure tapping, and thermocouple connector.

Features:

• Include pilot flow adjustment screw.
• Easy to install, adjust and service; all adjustments and connections are accessible from top of control.
• Add separate energy cutoff (ECO) where codes call for dual safety shutoff.
• Complete safety shutoff on pilot flame failure.
• LITE-RITE (OFF-PILOT-ON) lighting sequence.
• ECO connector for V800 models. Part No. 392451-1.
