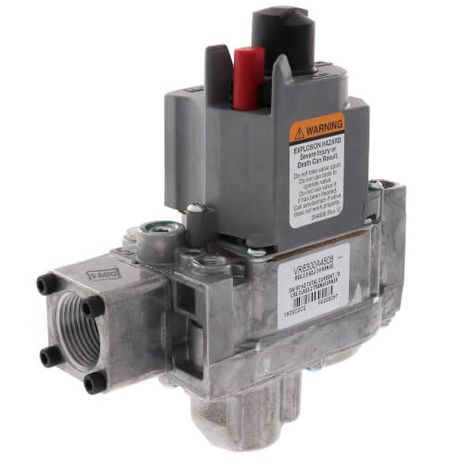

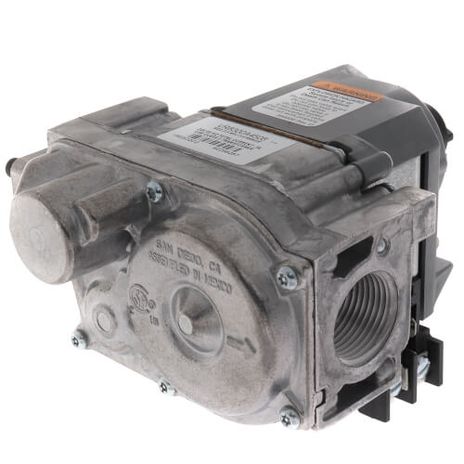

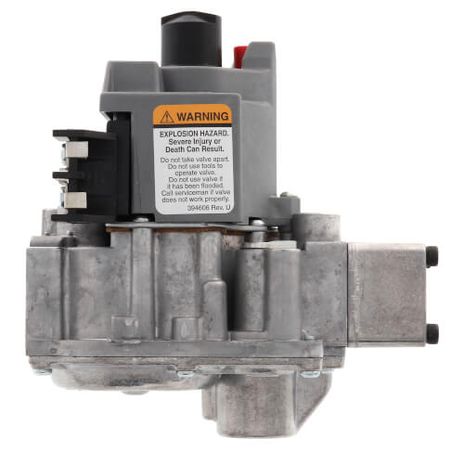

Resideo VR8300A4508

Single Stage, 24 Vac, Standard Opening, Standing Pilot Gas Valve. ¾ x ¾ in Set 3.5 in WC

The VR8300 continuous pilot dual automatic valve combination gas controls are used in gas-fired, standing pilot appliances. They include safety shutoff, a manual valve, two automatic operators, and a pressure regulator.

Features:

• Controls include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment
• Compact size
• Provide two automatic valves
• Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends
• Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted
• Meets codes requiring dual safety shutoff
• All adjustments, wiring connections and pilot outlet are accessible from top of control
• Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
• Compatible with ECO connector
• LITE-RITE (OFF-PILOT-ON) lighting sequence
