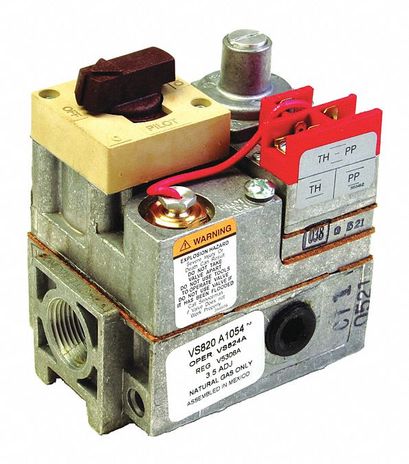

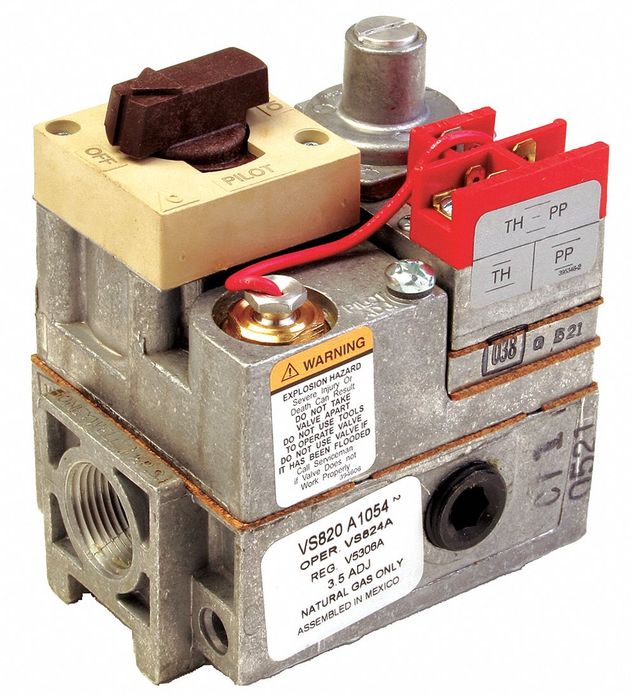

Resideo VS820A1336

STANDING PILOT MILLIVOLT GAS VALVE. STANDARD OPENING. ¾” X ¾” WITH ½” SIDE OUTLETS, REG SET AT 10 IN WC. INCLUDES TWO ¾ X ½ REDUCER BUSHI…

Product Overview:

• These gas controls combine a Lite-Rite manual gas cock, safety shutoff Pilotstat assembly, millivoltage automatic valve operator, and optional gas pressure regulator. They require the use of a 750 mv Powerpile generator (thermopile). The generator, heated by the pilot burner flame, provides the electrical energy to operate the combination gas control. A millivoltage thermostat with suitable accessory controls completes the automatic control system for the heating appliance.

Product Features:

• Includes pilot flow adjustment screw
• Easy to install, adjust and service; all adjustments and connections are accessible from top of control
• Add separate energy cutoff (ECO) where codes call for dual safety shutoff
• Complete safety shutoff on pilot flame failure
• LITE-RITE (OFF-PILOT-ON) lighting sequence
• ECO connector for V800 models, Part No. 392451-1

Product Specifications:

• Description: ¾ in. NPT x ¾ in. NPT PowerPile Millivolt Combination Gas Valve with 10.0 in. wc adjustable pressure regulator setting
• Application: Self-powered automatic control - Use with 750 mV pilot generator
• Type of Gas: LP
• Pressure Regulator: Standard
• Electrical Ratings: 750 mV
• Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
• Body Pattern: Straight-through - multi-tapped with ½ in. right and left outlets plugged, except as noted
• Pressure Tapping: ⅛ in. npt with plug
• Pilot Gas Outlet: Compression fitting for ¼ in. OD tubing
• Inlet/Outlet Size (in.): ¾ in. NPT x ¾ in. NPT with ½ in. NPT side outlets
• Pressure Regulator Setting (psi): 10.0 in. wc Reg. Set/8-12” Adj. Range
• Pressure Regulator Setting (kPa): 2.49 kPa
• Pressure Ratings (psi): ½ psi
• Pressure Ratings (kPa): 3.5 kPa
• Electrical Connections: Terminal block has 3 combination screw and ¼ in. quick connect terminals
• Temperature Range (F): 32 F to 175 F
• Temperature Range (C): 0 C to 79 C
• Dimensions (in.): 4 ¾ in. high x 4 1/16 in. wide x 3 3/16 in. deep
• Dimensions (mm): 121 mm high x 103 mm wide x 81 mm deep
• Approvals, Underwriters Laboratories Inc: UL Component Recognized
• Approvals, American Gas Association: AGA Design Certified: File no. L2025003
• Approvals, Canadian Gas Association: CGA Design Certified: File no. L2025003
• Includes: One ¾” x ½” reducer bushing, one ½” x ⅜” reducer bushing
