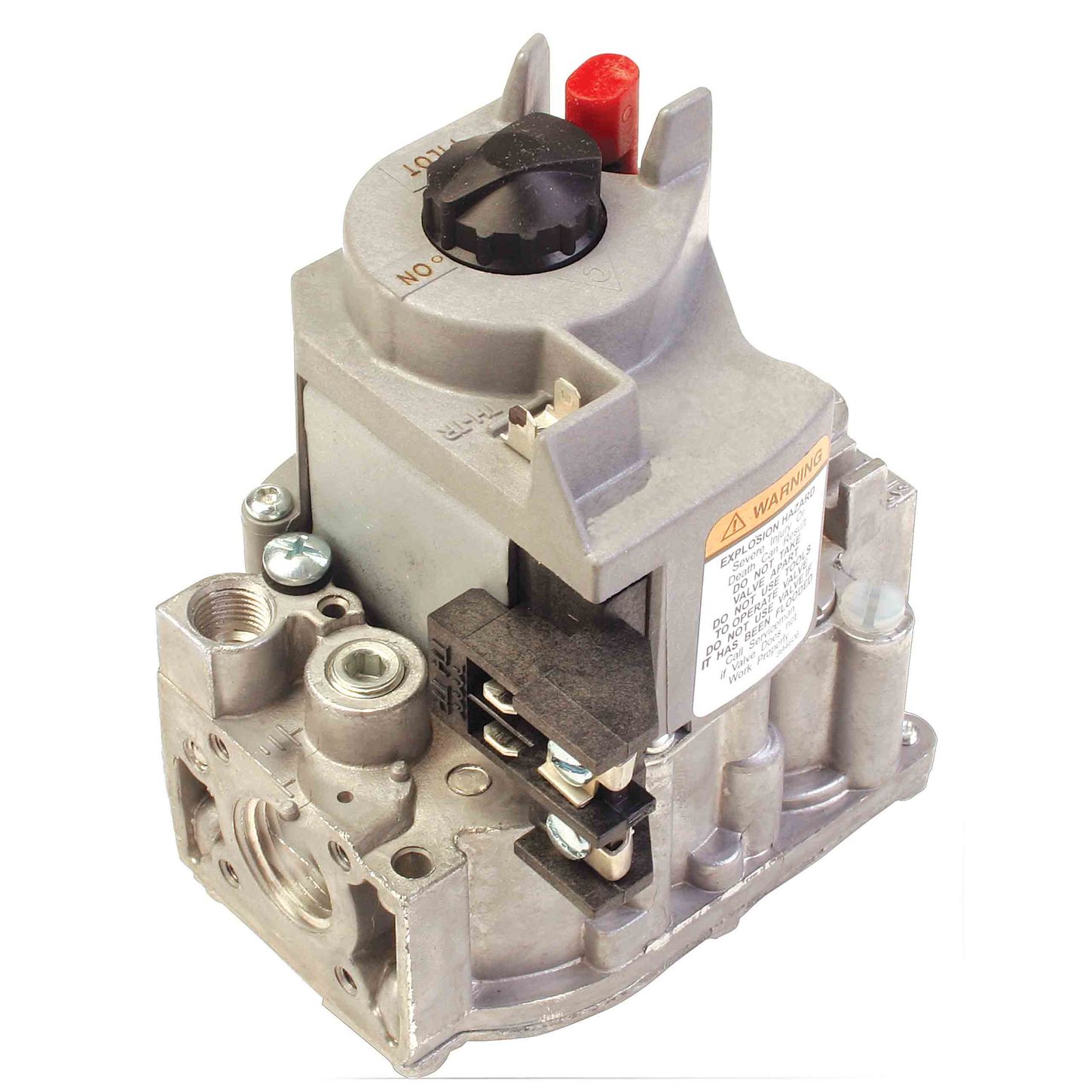

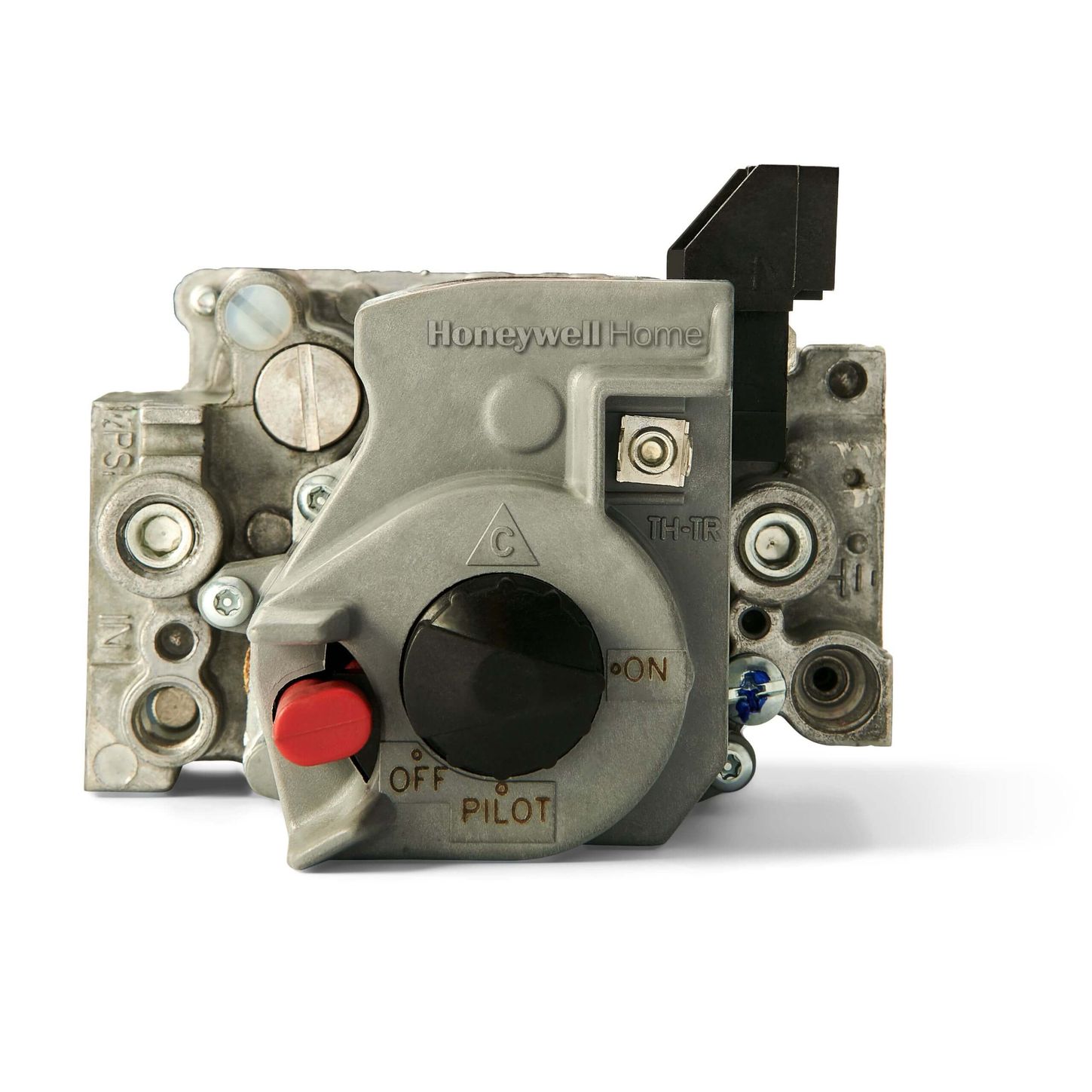

Resideo VR8200A2322

Single Stage, 24 Vac, Standard Opening, Standing Pilot Gas Valve. ½ x ½”“. Set 3.5”” WC

Overview

Combination gas control for use in 24 Vac gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.

Features

• Control includes safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment.
• Compact size.
• Provides two automatic valves.
• Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends.
• Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
• Meets codes requiring dual safety shut-off.
• Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.
• All adjustments, wiring connections and pilot outlet are accessible from top of control.
• Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.
• Compatible with ECO connector.
• LITE-RITE (OFF-PILOT-ON) lighting sequence.

Specifications

• Application: Single Stage
• Dimensions (in.): 5 3/16 in high x 4 ⅛ in. wide x 3 ¼ in. deep
• Dimensions (mm): 132 mm high x 104 mm wide x 83 mm deep
• Includes: Natural to LP Conversion Kit
• Item Type: Product
• Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.
• Frequency: 60 Hz
• Approvals, Underwriters Laboratories Inc.: UL Component Recognized MCCZ2.MH5323
• Approvals, CSA: CSA International: 112395
• Electrical Connections: ¼ in. quick-connect male terminals
• Voltage: 24 Vac
• Operating Temperature Range (F): 0 F to 175 F
• Operating Temperature Range (C): -18 C to +79 C
• Body Pattern: Straight-through
• Opening Characteristics: Standard Opening
• Pressure Ratings (psi): ½ psi
• Pressure Ratings (kPa): 3.5 kPa
• Inlet/Outlet Size (in.): ½ in. x ½ in.
• Pilot Gas Outlet: Compression fitting for ¼ in. OD tubing
• Pressure Tapping: ⅛ in. NPT with plug
• Type of Fuel: Natural (LP with included conversion kit)
• Capacity (kBtuh): At 1 in. wc p.d.-- 130,000 BTUh: 20,000 BTUh minimum: 200,000 BTUh maximum Natural Gas
• Approvals, Australian Gas Association: 4752
• Pressure Regulator: Standard
• Pressure Regulator Setpoint (in. wc): 3.5 in. WC
• Pressure Regulator Setpoint (kPa): 0.87 kPa
• Ignition Type: Standing Pilot
