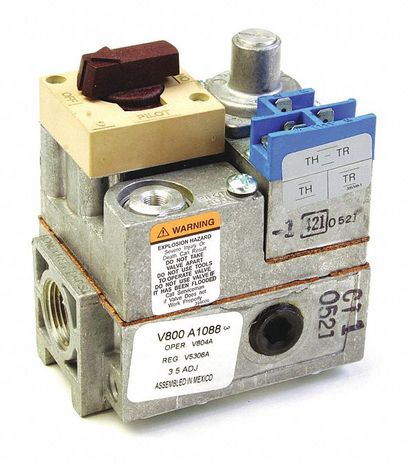

Resideo V800C1052

STANDING PILOT GAS VALVE. STEP OPENING. ¾” X ¾” WITH ½” SIDE OUTLETS, REG SET AT 3.5 IN WC FULL RATE. 0.9 IN. WC STEP RATE. INCLUDES TWO ¾ …

Product Overview:

• Used on gas fired standing pilot appliances with 30 mV thermocouple. Includes a manual gas valve, safety shutoff, single millivoltage automatic operator, pressure regulator, pilot gas filter and flow adjustment, pressure tapping, and thermocouple connector.

Product Features:

• Includes pilot flow adjustment screw
• Easy to install, adjust and service; all adjustments and connections are accessible from top of control
• Add separate energy cutoff (ECO) where codes call for dual safety shutoff
• Complete safety shutoff on pilot flame failure
• LITE-RITE (OFF-PILOT-ON) lighting sequence
• ECO connector for V800 models

Product Specifications:

• Description: 24 Vac Standing Pilot Gas Valve with ¾ in. x ¾ in. inlet\outlet, step opening and Full Rate: 3.5 in. wc; Step Setting: 0.9 in. wc pressure regulator setting
• Type: Single Stage
• Ignition Type: Standing Pilot
• Type of Gas: Natural
• Inlet/Outlet Size (in.): ¾ in. x ¾ in.
• Body Pattern: Straight-through, multi-tapped with ½ in. right and left outlets plugged
• Opening Characteristics (standard, step): Step Opening
• Capacity @ 1 in. p.d.: 335,000 BTU/hr
• Pressure Ratings (psi): ½ psi
• Pressure Ratings (kPa): 3.5 kPa
• Pressure Regulator Setting (psi): Full Rate: 3.5 in. wc; Step Setting: 0.9 in. wc
• Pressure Regulator Setting (kPa): Full Rate: 0.87 kPa; Step Setting: 0.22 kPa
• Pilot Gas Outlet: Compression fitting for ¼ in. OD tubing
• Pressure Tapping: ⅛ in. NPT with plug
• Electrical Connections: Combination screw and ¼ in. male quick connects
• Electrical Ratings: 24 Vac
• Frequency: 60 Hz
• Anticipator Setting: 0.2A
• Temperature Range (F): 32 F to 175 F
• Temperature Range (C): 0 C to 79 C
• Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
• Dimensions (in.): 4 ¾ in high x 4 1/16 in. wide x 3 3/16 in. deep
• Dimensions (mm): 121 mm high x 103 mm wide x 81 mm deep
• Includes: Two ¾ x ½ in.; One ½ x ⅜ in. Reducer Bushing/Adapters
• Approvals, American Gas Association IAS: AGA Design Certified; File No. L2025003, CGA Design Certified; File No. L2025003, UL Component Recognized
• Approvals, Underwriters Laboratories Inc: UL Component Recognized
