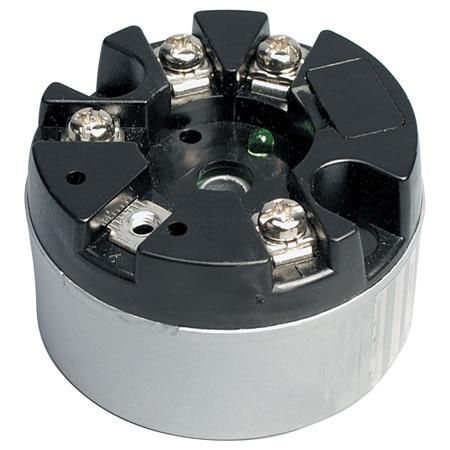

Omega TX31-K
SKU: CS3073274MPN: TX31-K
Head Mount Thermocouple Transmitter w/ Process Output
$587.20
UnitAvailable on backorder
Product Details
- Ultra-Low Profile Design
- Multi-range Selectable
- Galvanic Isolation
- Long Term Stability
Attributes
| Height | 27 mm |
| Weight | 65 g |
| Diameter | 45 mm |
| Isolation | Galvanic, 1000 Vrms Input/output , continuous |
| Linearity | ±0.01% |
| Series ID | TX31-Series-TC-Tx |
| Input Type | Thermocouple |
| RFI Effect | < ±10% of span (5W, 470 MHz) |
| Wire Gauge | 22 to 12 AWG |
| Calibration | Trimpot/Switch |
| Output Load | 50 x (loop power - 12) Ω |
| Sensor Type | Transmitter |
| Probe Length | 0 mm |
| Output Detail | 4 to 20 mA; Upscale < 26 mA, Downscale <3.8 mA |
| Repeatability | ±0.01% |
| Response Time | 200 ms |
| Humidity Range | 5 to 85% RH non condensing |
| Setup Controls | Trimpot/Switch |
| Supply Voltage | 12 to 32 Vdc |
| Housing Material | Aluminum, Epoxy, Polycarbonate |
| Country of Origin | Taiwan |
| Electrical Output | 4 to 20 mA |
| Supply Power Note | 12 to 32 Vdc; Reverse polarity protected |
| Supply Power Type | DC |
| Thermocouple Type | K |
| Repeatability Note | ±0.1% of voltage input span |
| Supply Power Effects | ±0.01%/V |
| Electrical Connection | Screw Terminal |
| Temperature Coefficient | ±0.02% /°C |
| Temperature Input Range | 0 to 600°C |
| Cold Junction Compensation | ±2°C |
| Operating Temperature, Max | 70 °C |
| Operating Temperature, Min | -20 °C |
| Zero Setting Adjustable Range | 0.05 |
Specifications
| SKU | CS3073274 |
|---|---|
| MPN | TX31-K |
