ACI PT 9.7"

Name: ACI PT 9.7"
Brand: ACI
SKU: CS6286964
Availability: OutOfStock

SKU: CS6286964MPN: PT 9.7"Alternate Part #: 130143

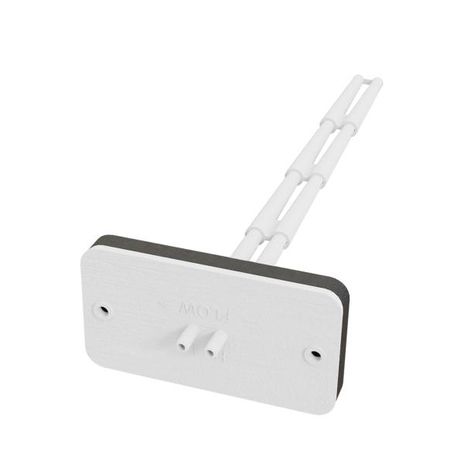

Total Pressure Pitot Tube with Foam Gasket, 9.7”

Product Details

Total Pressure Pitot Tube with Foam Gasket, 9.7”

Length	9.7”

Material Type	ABS
Agency Approvals	RoHS2, WEEE, Reach
Recommended Air Flow	200 FPM (60.96 MPM) minimum to 3000 FPM (914.4 MPM) maximum
Recommended Duct Size	4” (10.2 cm) to 18” (45.7 cm)
Operating Humidity Range	0 to 90% RH non-condensing
Storage Temperature Range	-40 to 185ºF (-40 to 85ºC)
Operating Temperature Range	40 to 120ºF (4 to 49ºC)
Material Flammability Rating	UL-94 HB
Tubing Connection \| Tubing Size	3/16” OD (4.8 mm) connection for ¼” (6.4 mm) OD Poly Tubing

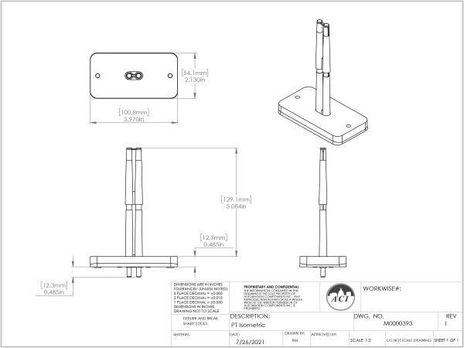

Product Dimensions (W x H x L) \| Weight	PT 3”: 4.00” (10.2 cm) x 2.1” (5.3 cm) x 3.6” (9.1 cm) / 0.06 lbs (0.03 kg) PT 5.2”: 4.00” (10.2 cm) x 2.1” (5.3 cm) x 6.0” (15.2 cm) / 0.07 lbs (0.032 kg) PT 7.5”: 4.00” (10.2 cm) x 2.1” (5.3 cm) x 8.3” (21.1 cm) / 0.075 lbs (0.034 kg) PT 9.7”: 4.00” (10.2 cm) x 2.1” (5.3 cm) x 10.6” (26.9 cm) / 0.086 lbs (0.04 kg)
