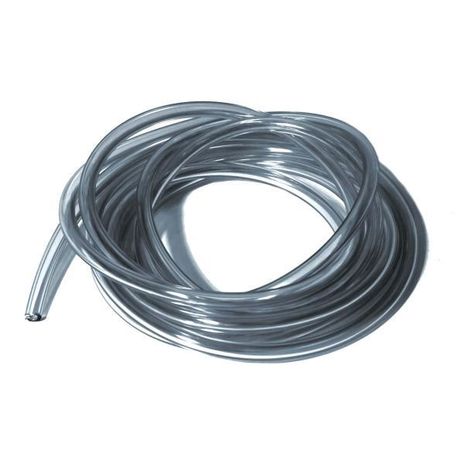

ACI A/10' TUBE

Name: ACI A/10' TUBE
Brand: ACI
SKU: CS6286757
Availability: OutOfStock

SKU: CS6286757MPN: A/10' TUBEAlternate Part #: 126606

Clear Tubing, ¼”OD X 10’ PVC Tubing

Product Details

Clear Tubing, ¼”OD X 10’ PVC Tubing

Length	10’

Tubing Color	Clear
Product Weight	A/10’ Tube: 0.30 lbs (0.136 kg) A/20’ Tube: 0.50 lbs (0.226 kg) A/100’ Tube: 2.3 lbs (1.05 kg)
Agency Approvals	Complies with relevant section Title 21 of the Code of Fed. Reg., RoHS2, WEEE, Reach
Maximum Pressure	39 psi maximum @ 70ºF (21.1ºC)
Product Dimensions	A/10’ Tube: 0.17” (4.32 mm) x ¼” (6.35 mm) x 10’ (3.05 m) A/20’ Tube: 0.17” (4.32 mm) x ¼” (6.35 mm) x 20’ (6.10 m) A/100’ Tube: 0.17” (4.32 mm) x ¼” (6.35 mm) x 100’ (30.5 m)
Fitting Size Accepted	3/16” (4.76 mm)
Brittleness Temperature	-47.2ºF (-44ºC)
Storage Temperature Range	0 to 122ºF (32º to 50ºC)
Operating Temperature Range	35º to 122ºF (2º to 50ºC)
Enclosure Material \| Flammability Rating	Medical Grade Flexible PVC \| Self Extinguishing
