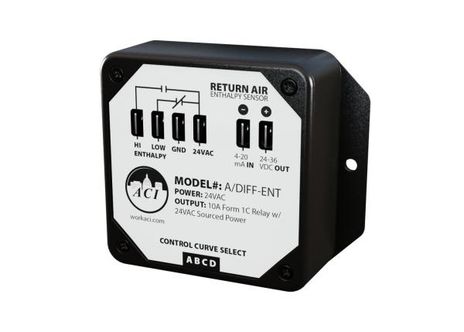

ACI A/DIFF-ENT
SKU: CS6286350MPN: A/DIFF-ENTAlternate Part #: 122426
Enthalpy, Differential Enthalpy Changeover Control, Indoor vs Outdoor, 24 VAC Form 1C Relay Contact, Altitude 0K to 2K ft
$151.72
UnitAvailable on backorder
Product Details
Enthalpy, Differential Enthalpy Changeover Control, Indoor vs Outdoor, 24 VAC Form 1C Relay Contact, Altitude 0K to 2K ft
Product Configuration
| Configuration | Enthalpy - Differential |
|---|
Product Family Specifications
| Accuracy | +/- 1 BTU @77ºF (25ºC) |
|---|---|
| Deadband | 1 BTU or 0.5ºF (0.27ºC) |
| Stability | Less than 2% RH Drift/5 years |
| Sensitivity | 0.1% RH |
| Repeatability | 0.5% RH |
| Product Weight | 0.35 lbs (0.159 kg) |
| Supply Current | 70 mA max (A/ENT-CTRL \& A/DIFF-ENT) 25 mA maximum (A/ENT) |
| Supply Voltage | +24 to 36 VDC or 24 VAC +/- 10% (A/ENT-CTRL \& A/DIFF-ENT) +24 to 36 VDC (A/ENT) |
| Operating RH Range | 0 to 95% RH (non-condensing) |

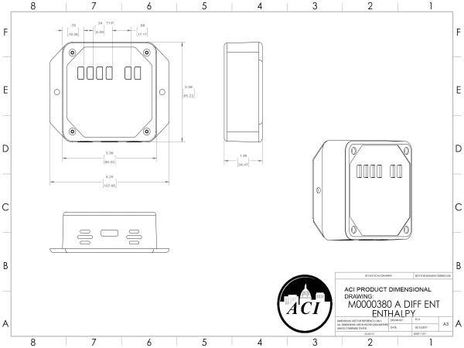

| Product Dimensions | (H) 3.36” (85.22mm) x (W) 4.25” (107.95mm) x (D) 1.36” (34.47mm) |
| Standard Elevation | 1000’ above sea level (standard) |
| Enthalpy Measurement | 0-50 BTU’s (A/ENT) |
| Operating Temperature Range | -40ºF to 140ºF (-40ºC to 60ºC) |
| Range Output/Contact Rating | 4-20 mA (A/ENT) 10A @ 250 VAC (A/ENT-CTRL \& A/DIFF-ENT) |
| External Input (A/DIFF-ENT Only) | 4-20 mA (0 to 50 BTU’s) from A/ENT |
Specifications
| SKU | CS6286350 |
|---|---|
| MPN | A/DIFF-ENT |
| Alternate Part # | 122426 |
