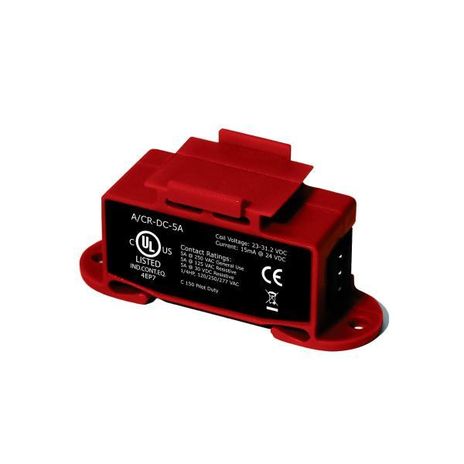

Command Relay, Nom. Coil Voltage: 24 VDC, Contact Rating: 5A, Form 1C (SPDT)

Product Details

Command Relay, Nom. Coil Voltage: 24 VDC, Contact Rating: 5A, Form 1C (SPDT)

Product Configuration

Contact Rating	5A @ 250VAC
Relay Coil Voltage	24VDC

Product Family Specifications

Relay Type	Electromechanical Relay
Contact Form	Form 1C (SPDT Contact)
Product Weight	A/CR-DC-5A: 0.135 lbs. (0.061 kg) \| A/CR-12DC-12A \& A/CR-24AC-10A: 0.150 lbs. (0.068 kg) A/CR-DC-12A, A/CR-115AC-8A \& A/CR-230AC-8A: 0.145 lbs. (0.066 kg)
Agency Approvals	UL/CUL US Listed (UL 508) Ind. Control Equipment (File # E179139), CE, RoHS, WEEE
DIN Rail Mounting	35 mm (U.S. Patent No. 7,416,421)

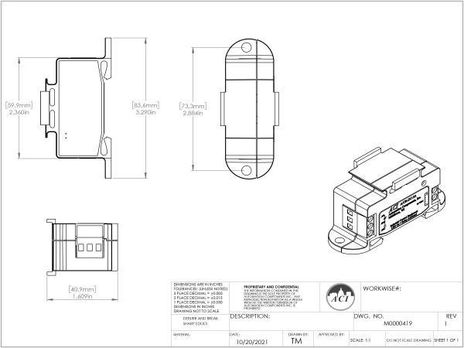

Product Dimensions	3.283” (83.39 mm) x 1.305” (33.15 mm) x 1.565” (39.75 mm
Relay Contact Rating	A/CR-DC-5A: 5A @ 250 VAC* \| 5A @ 125 VAC 5A @ 30 VDC \| ¼ HP, 120/250/277 VAC A/CR-DC-12A: 12A @ 250 VAC* \| 12A @ 250 VAC \| 12A @ 30 VDC \| 1 HP, 120/240/480 VAC (N/O) \| ½ HP, 120/240/480 VAC (N/C) A/CR-12DC-12A: 12A @ 250 VAC* \| 12A @ 250 VAC \| 12A @ 30 VDC 1 HP, 120/240/480 VAC (N/O) \| ½ HP, 120/240/480 VAC (N/C) A/CR-24AC-10A: 10A @ 250 VAC* \| 10A @ 250 VAC \| 10A @ 30 VDC 1 HP, 120/240/480 VAC (N/O) \| ½ HP, 120/240/480 VAC (N/C) A/CR-115AC-8A: 8A @ 250 VAC* \| 8A @ 250 VAC** \| 8A @ 30 VDC* 1 HP, 120/240/480 VAC (N/O) \| ½ HP, 120/240/480 VAC (N/C) A/CR-230AC-8A: 8A @ 250 VAC* \| 8A @ 250 VAC \| 8A @ 30 VDC 1 HP, 120/240/480 VAC (N/O) \| ½ HP, 120/240/480 VAC (N/C)
Relay Electrical Life	> 30,000 Cycles, typical
Relay Mechanical Life	> 10,000,000 Cycles, typical
Status LED Indication	Red LED “On”: Relay Energized “COM to N/O” \| Red LED “O”: Relay De-Energized “Com to N/C”
Connections \| Wire Size	Screw Terminal Blocks Relay Coil: 18 to 24 AWG (2.5 mm2 to 0.20 mm2) Copper Wires only Relay Contacts: 12 to 16 AWG (4.0 mm2 to 020 mm2) Copper Wires only
Operating Humidity Range	0 to 95%, non-condensing
Operating Temperature Range	5 to 104ºF (-15 to 40ºC)
Terminal Block Torque Rating	4.43 to 5.31 in-lbs. (0.5 to 0.6 Nm)
Storage Temperature \| RH Range	32 to 104°F (0 to 40°C) \| 20% to 85% RH, non-condensing
Maximum Contact Switching Current	A/CR-DC-5A: 5A (N/O) / 3A (N/C A/CR-DC-12A: 12 Amps A/CR-12DC-12A: 12 Amps A/CR-24AC-10A: 10 Amps A/CR-115AC-8A: 8 Amps A/CR-230AC-8A: 8 Amps
Maximum Contact Switching Voltage	250 VAC, 30 VDC
Enclosure Material \| Flammability Rating	PC/ABS (Polycarbonate/ABS Blend) \| UL94-V0
Nominal Relay Coil Voltage (Rated Current)	A/CR-DC-5A: 23 to 31.2 VDC, 17 mA @ 24 VDC, 60 Hz A/CR-DC-12A: 20 to 31.2 VDC, 17 mA @ 24 VDC, 60 Hz A/CR-12DC-12A: 10 to 15.6 VDC, 33.33 mA @ 12 VDC, 60 Hz A/CR-24AC-10A: 16 to 26.4 VAC, 28.30 mA @ 24 VAC, 60 Hz or 31.30 mA @ 24 VAC, 50 Hz A/CR-115AC-8A: 80 to 132 VAC, 5.35 mA @ 115 VAC, 60 Hz or 5.85 mA @ 115 VAC, 50 Hz A/CR-230AC-8A: 165 to 264 VAC, 2.76 mA @ 230 VAC, 60 Hz or 3.00 mA @ 230 VAC, 50 Hz
