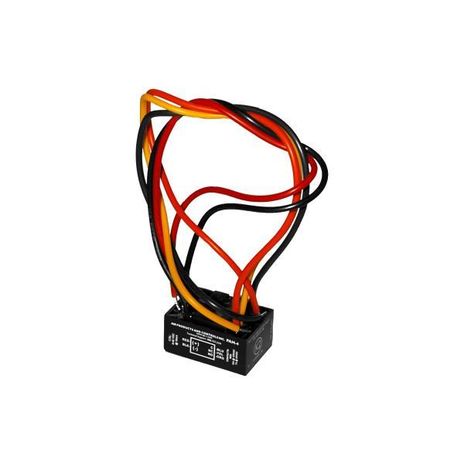

Multi-Voltage Control Relay, 12 to 40 VDC (20mA), Form 1C (SPDT)

Product Details

Multi-Voltage Control Relay, 12 to 40 VDC (20mA), Form 1C (SPDT)

Product Configuration

Relay Coil Voltage	12-40VDC

Product Family Specifications

Mounting	Pre-drilled mounting screw hole and self tapping screw provided \| Double sided tape provided
Relay Type	Electromechanical Relay
Contact Form	Form 1C (SPDT Contact)
Material Type	Construction: 100% potted (sealed) with flying leads
Product Weight	0.16 lbs (0.073 kg)
Agency Approvals	UL: U0XX/7.S3403* \| UL: UUKL** \| MEA: 73-92-E Vol. 21 \| CSFM: 7300-1004:101

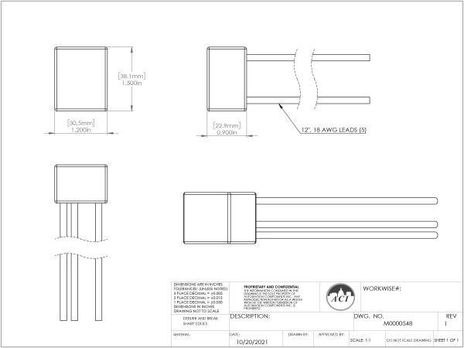

Product Dimensions	(L) 1.50” (38 mm) x (W) 1.20” (31 mm) x (H) 0.77” (20 mm)
Relay Pull-In Time	PAM-1: \<1 Second (24 VDC, 24 VAC, 120 VAC) PAM-2: \<1 Second (12 / 24 VDC) PAM-4: \<1 Second (12 VDC), \<3 Second (24 VDC), \<1.5 Second (32 VDC) PAM-SD: \<1 Second (24-32 VDC)
Relay Electrical Life	> 100,000 Cycles, typical
Relay Mechanical Life	> 10,000,000 Cycles, typical
Status LED Indication	Red LED “On”: (Relay Energized “COM to N/O”) Red LED “Off”: (Relay De-Energized “Com to N/C”) PAM-1 \& PAM-2: Yes PAM-4 \& PAM-SD: No
Operating Humidity Range	0 to 100%, condensing
Operating Temperature Range	32 to 120ºF (0 to 49ºC)
Lead Length \| Conductor Size	12” \| 18AWG
Maximum Contact Switching Current	PAM-1: 250 μ @ 5 VDC (PF* \= 0.35) 7A @ 24 VDC (PF* \= 0.35) 10A @ 120 VAC PAM-2: 250 μ @ 5 VDC (PF* \= 0.35) 7A @ 24 VDC (PF* \= 0.35) 7A @ 120 VAC (PF* \= 0.35) PAM-4: 250 μ @ 5 VDC 7A @ 24 VDC 7A @ 120 VAC PAM-SD: 250 μ @ 5 VDC (PF* \= 0.35) 7A @ 24 VDC (PF* \= 0.35) 7A @ 120 VAC (PF* \= 0.35)
Maximum Contact Switching Voltage	120 VAC / 24 VDC
Nominal Relay Coil Voltage (Rated Current)	PAM-1: 24 VDC (20 mA), 24 VAC (50 mA), 120 VAC (50 mA) PAM-2: 12 VDC (20 mA), 24 VDC (20 mA) PAM-4: 12-40 VDC (20 mA) PAM-SD: 20-32 VDC (15 mA – 25 mA)
