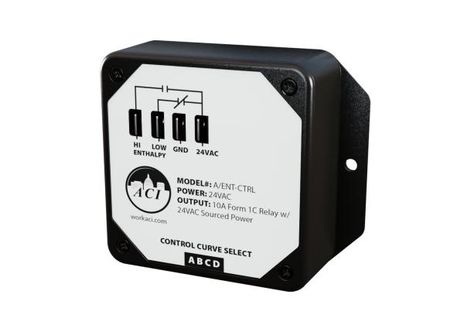

ACI A/ENT-CTRL

Name: ACI A/ENT-CTRL
Brand: ACI
SKU: CS6286352
Availability: OutOfStock

SKU: CS6286352MPN: A/ENT-CTRLAlternate Part #: 122440

Enthalpy, Enthalpy Changeover Control, Outdoor Adjustable Trip Point, 24 VAC Switching, Altitude 0K to 2K ft

Product Details

Enthalpy, Enthalpy Changeover Control, Outdoor Adjustable Trip Point, 24 VAC Switching, Altitude 0K to 2K ft

Configuration	Enthalpy Changeover Control

Accuracy	+/- 1 BTU @77ºF (25ºC)
Deadband	1 BTU or 0.5ºF (0.27ºC)
Stability	Less than 2% RH Drift/5 years
Sensitivity	0.1% RH
Repeatability	0.5% RH
Product Weight	0.35 lbs (0.159 kg)
Supply Current	70 mA max (A/ENT-CTRL \& A/DIFF-ENT) 25 mA maximum (A/ENT)
Supply Voltage	+24 to 36 VDC or 24 VAC +/- 10% (A/ENT-CTRL \& A/DIFF-ENT) +24 to 36 VDC (A/ENT)
Operating RH Range	0 to 95% RH (non-condensing)

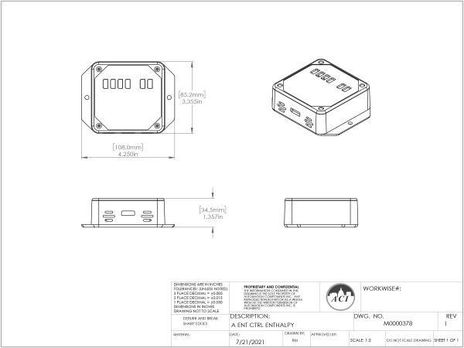

Product Dimensions	(H) 3.36” (85.22mm) x (W) 4.25” (107.95mm) x (D) 1.36” (34.47mm)
Standard Elevation	1000’ above sea level (standard)
Enthalpy Measurement	0-50 BTU’s (A/ENT)
Operating Temperature Range	-40ºF to 140ºF (-40ºC to 60ºC)
Range Output/Contact Rating	4-20 mA (A/ENT) 10A @ 250 VAC (A/ENT-CTRL \& A/DIFF-ENT)
External Input (A/DIFF-ENT Only)	4-20 mA (0 to 50 BTU’s) from A/ENT
