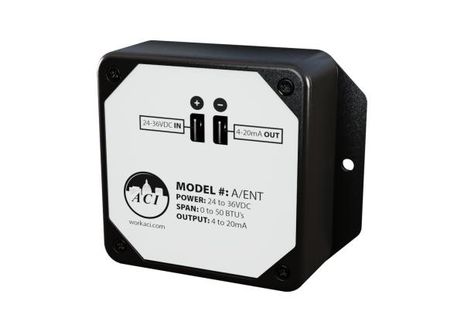

ACI A/ENT

Name: ACI A/ENT
Brand: ACI
SKU: CS6286351
Availability: OutOfStock

SKU: CS6286351MPN: A/ENTAlternate Part #: 122439

Enthalpy, 0-50K BTU, 4-20mA, Altitude 0K to 2K ft

Product Details

Enthalpy, 0-50K BTU, 4-20mA, Altitude 0K to 2K ft

Configuration	Enthalpy

Accuracy	+/- 1 BTU @77ºF (25ºC)
Deadband	1 BTU or 0.5ºF (0.27ºC)
Stability	Less than 2% RH Drift/5 years
Sensitivity	0.1% RH
Repeatability	0.5% RH
Product Weight	0.35 lbs (0.159 kg)
Supply Current	70 mA max (A/ENT-CTRL \& A/DIFF-ENT) 25 mA maximum (A/ENT)
Supply Voltage	+24 to 36 VDC or 24 VAC +/- 10% (A/ENT-CTRL \& A/DIFF-ENT) +24 to 36 VDC (A/ENT)
Operating RH Range	0 to 95% RH (non-condensing)

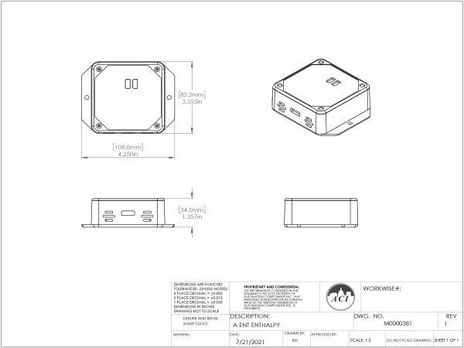

Product Dimensions	(H) 3.36” (85.22mm) x (W) 4.25” (107.95mm) x (D) 1.36” (34.47mm)
Standard Elevation	1000’ above sea level (standard)
Enthalpy Measurement	0-50 BTU’s (A/ENT)
Operating Temperature Range	-40ºF to 140ºF (-40ºC to 60ºC)
Range Output/Contact Rating	4-20 mA (A/ENT) 10A @ 250 VAC (A/ENT-CTRL \& A/DIFF-ENT)
External Input (A/DIFF-ENT Only)	4-20 mA (0 to 50 BTU’s) from A/ENT
