ACI NO2-D

Name: ACI NO2-D
Brand: ACI
SKU: CS6285369
Availability: OutOfStock

SKU: CS6285369MPN: NO2-DAlternate Part #: 109680

Nitrogen Dioxide Sensor, 0-6 PPM Default, (10 PPM Max), Duct Mount, 4-20mA, 2-10VDC Output

Product Details

Nitrogen Dioxide Sensor, 0-6 PPM Default, (10 PPM Max), Duct Mount, 4-20mA, 2-10VDC Output

Product Configuration

Configuration Modification	None

Product Family Specifications

Buzzer	Optional: Buzzer Rating 85 dB @ one foot
Accuracy	+/- 2.5% of Reading
Sensor Life	2-3 years under Normal Conditions
Sensor Type	Electrochemical
Time Delays	Actuation / De-Actuation: 0 to 60 Minutes in 5 minute Increments
Repeatability	+/- 1% of Reading
Response Time	Less than 60 Seconds for 90% of step change
Analog Outputs	4-20 mA or 2-10V Jumper Selectable
Product Weight	1.00 lbs (0.45 kg)
Supply Voltage	24 VAC +/- 10% Floating; 24 VAC +/- 10%, One side Grounded; 24 VDC
Unit Shelf Life	6 months from date of purchase
Relay (Optional)	Two SPDT Form C, Dry Contact, 1A @ 30 VDC/0.5A @ 125 VAC (Resistive Load),
Factory Set Range	0 to 6 ppm \| 0 to 10 ppm Field Adjustable
Communication Wire	Belden 9841 or equal
Operating Pressure	Atmospheric +/- 10% Note: When installed @ > 3000’ above sea level, the gas transmitters must be verified for accuracy \& re-calibrated as needed after installation

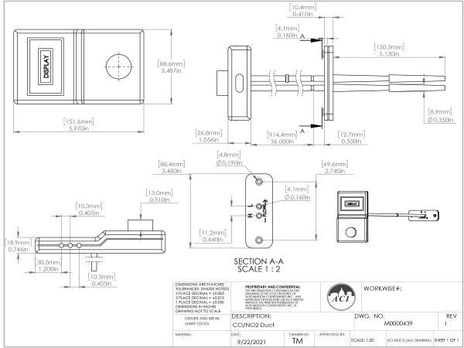

Product Dimensions	(H) 6.00” (152.4 mm) x (W) 3.5“ (88.9 mm) x (D) 1.6” (40.6 mm)

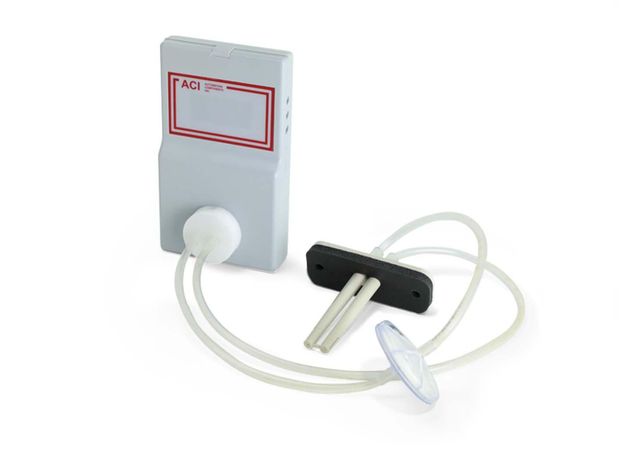

Duct Kit Pitot Tube	3 5/32”, Polycarbonate/ABS Blend / UL94V
Operating Environment	Indoor Environment only
Relay Life Expectancy	200,000 cycles minimum with 1A @ 30 VDC
Status LED Indication	Alphanumeric, 2 line X 8 digit LCD / (2) Red LED’s for Relay Status
Duct Kit Tubing Length	18“
Connections \| Wire Size	Terminal Blocks \| Power wiring: 16 to 26 AWG (0.2 to 1.00 mm²) Shielded Twisted Pair
Duct Kit In-Line Filter	5 micron
Duct Kit Tubing Material	Vinyl
Operating Humidity Range	15 to 90% RH Continuous, non-condensing; 0 to 99% RH Intermittent, non-condensing
Storage Temperature Range	32ºF to 68ºF
Operating Temperature Range	-4ºF to 104ºF (-20ºC to 40ºC)
Terminal Block Torque Rating	0.37 ft-lbs (0.5n-3m) Nominal
Supply Current / Power Consumption	100 mA nominal \| 250 mA maximum \| 6.6 Watts maximum
Enclosure Material \| Flammability Rating	Polycarbonate/ABS Blend, Fire Retardant
