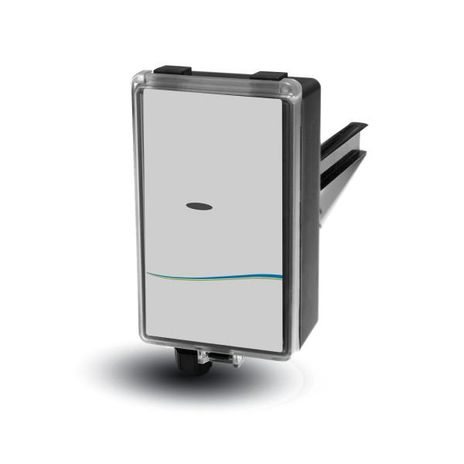

ACI ESENSE-D

Name: ACI ESENSE-D
Brand: ACI
SKU: CS6286969
Availability: OutOfStock

SKU: CS6286969MPN: ESENSE-DAlternate Part #: 130164

Carbon Dioxide Sensor, Duct Mount, 0-2000 PPM, 0-10VDC \& 4-20mA Output

Product Details

Carbon Dioxide Sensor, Duct Mount, 0-2000 PPM, 0-10VDC \& 4-20mA Output

Product Configuration

Display	None
Configuration	Duct

Product Family Specifications

Output	Standard: Out 1: 0-10V for 0-2000 ppm \| Out 2: 2-10V or 4-20 mA for 0-2000 ppm
Accuracy	±30 ppm and ±3% of reading
Calibration	Senseair ABC algorithm (Automatic Baseline Correction)
Connections	0.00232 in² (1.5 mm²) screw terminals
Sensor Life	>15 years
Warm Up Time	1 minutes (@ full specs 15 minutes)
Repeatability	±20 ppm ±1% of measured value
Sensing Range	0 to 2000 ppm
Product Weight	0.80 lbs (0.36 kg)
Sensing Method	Single beam Non-dispersive Infrared (NDIR)
Supply Voltage	24 VAC/VDC ±20%; 50/60Hz (Half-wave rectified)
Duct Dimensions	(H) 5.95” (151.8 mm) x (W) 3.33” (84.6 mm) x (D) 1.85” (47 mm)
Agency Approvals	EMC Directive 2014/30/EC \| RoHS Directive 2011/65/EU \| RoHS 3 Directive 2015/863/EU
Annual Zero Drift	± 0.3% of measurement range
Power Consumption	\<1W
Display (Optional)	4 digits, 7 segments LCD with ppm indicator
Operating Pressure	+1.6% per 0.145 psi (1 kPa) deviation from normal pressure (1 Atmosphere \= 14.7 psi (1.013 KPa))
Operating RH Range	0 – 95% RH Non-condensing
Extended CO2 Ranges	Up to 10,000 ppm (factory set or SADK Kit required)
Response Time (T1/e)	\<10 seconds @ 30 cc/min flow rate, \< 3 minutes diffusion time
Operating Environment	Residential, Commercial and Industrial spaces
Storage Temperature Range	-40 to 158ºF (-40 to 70ºC) Non-display, -4 to 122ºF (-20 to 50ºC) Display
Operating Temperature Range	32ºF to 122ºF (0ºC to 50ºC)
Extended Range Accuracy>2,000 PPM	+/- 30 ppm and +/- 5% of reading
Enclosure Material \| Flammability Rating	Duct Box: IP65 rated, PC \& ABS blend, Flammability Rating UL94V-0 Cover: Makrolon® 6555 plastic, Flammability Rating UL94V-0 Pipe: PC \& ABS blend, Flammability Rating UL94V-0
